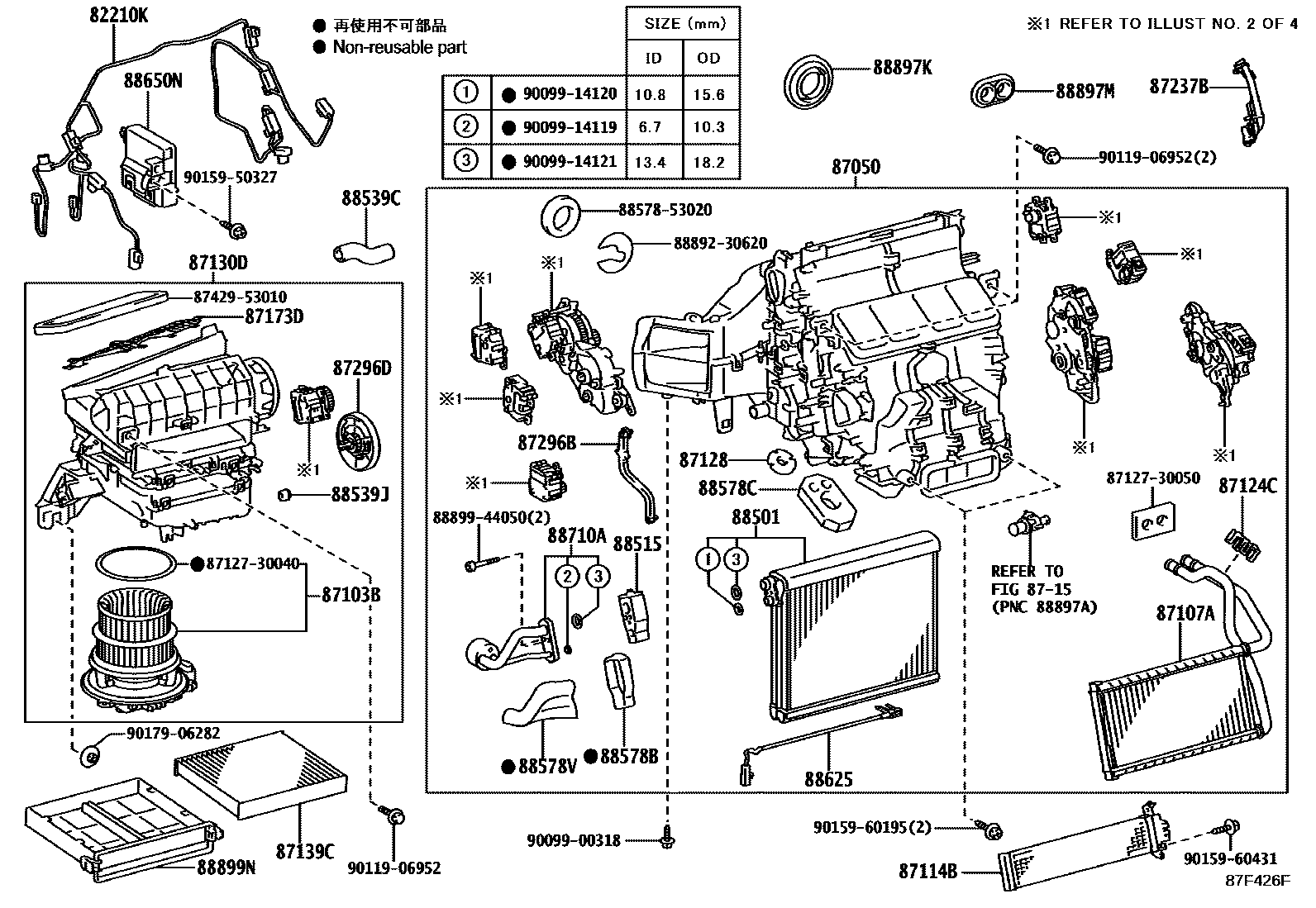

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)
AIR CONDITIONER-WITH(3ZONE CONTROL)
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)
87050RADIATOR ASSY, AIR CONDITIONER
sub87050-30601
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
sub87050-30611
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)
sub87050-30631
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
sub87050-30641
AIR CONDITIONER-WITH(3ZONE CONTROL)
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87124CCLAMP, HEATER
87128GROMMET, HEATER
87139CFILTER, CLEAN AIR
DEODORANT FILTER
8715
87173DPROTECTOR HEATER
87237BCOVER, HEATER PIPING
87296BLEVER, HEATER AIR DAMPER CONTROL
87296DLEVER, HEATER AIR DAMPER CONTROL, NO.2
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88539CHOSE, COOLER UNIT DRAIN, NO.2
88539JHOSE, DRAIN COOLER
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88578VPACKING, COOLING UNIT, NO.3
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
sub88650-3AU20
WINDSHIELD DEICER-WITH&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
sub88650-3AU30
WINDSHIELD DEICER-WITH&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)
sub88650-3AU30
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
sub88650-3AU40
sub88650-3AV10
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
sub88650-3AV30
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
WINDSHIELD DEICER-WITH&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)
AIR CONDITIONER-WITH(3ZONE CONTROL)
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
SEAT HEATER-WITH(DRIVER, PASSENGER & REAR)
88710ATUBE ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
88897MGROMMET (FOR HEATER PIPE)
88899NPLATE, COVER
8712730040PACKING, HEATER AIR DAMPER
main87127-30040
8712730050PACKING, HEATER AIR DAMPER
main87127-30050
8742953010PIPE, COMBUSTION HEATER OUTLET
main87429-53010
8857853020PAKING, COOLER AIR DUCT
main88578-53020
8889230620BRACKET, COOLER EVAPORATOR MOUNTING
main88892-30620
8889944050COVER, EVAPORATOR
main88899-44050
9009900318
main90099-00318
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011906952
main90119-06952
9015950327
main90159-50327
9015960195
main90159-60195
9015960431
main90159-60431
9017906282
main90179-06282
42 parts on this diagram · 4 diagrams in section
