NAVIGATION & FRONT MONITOR DISPLAY

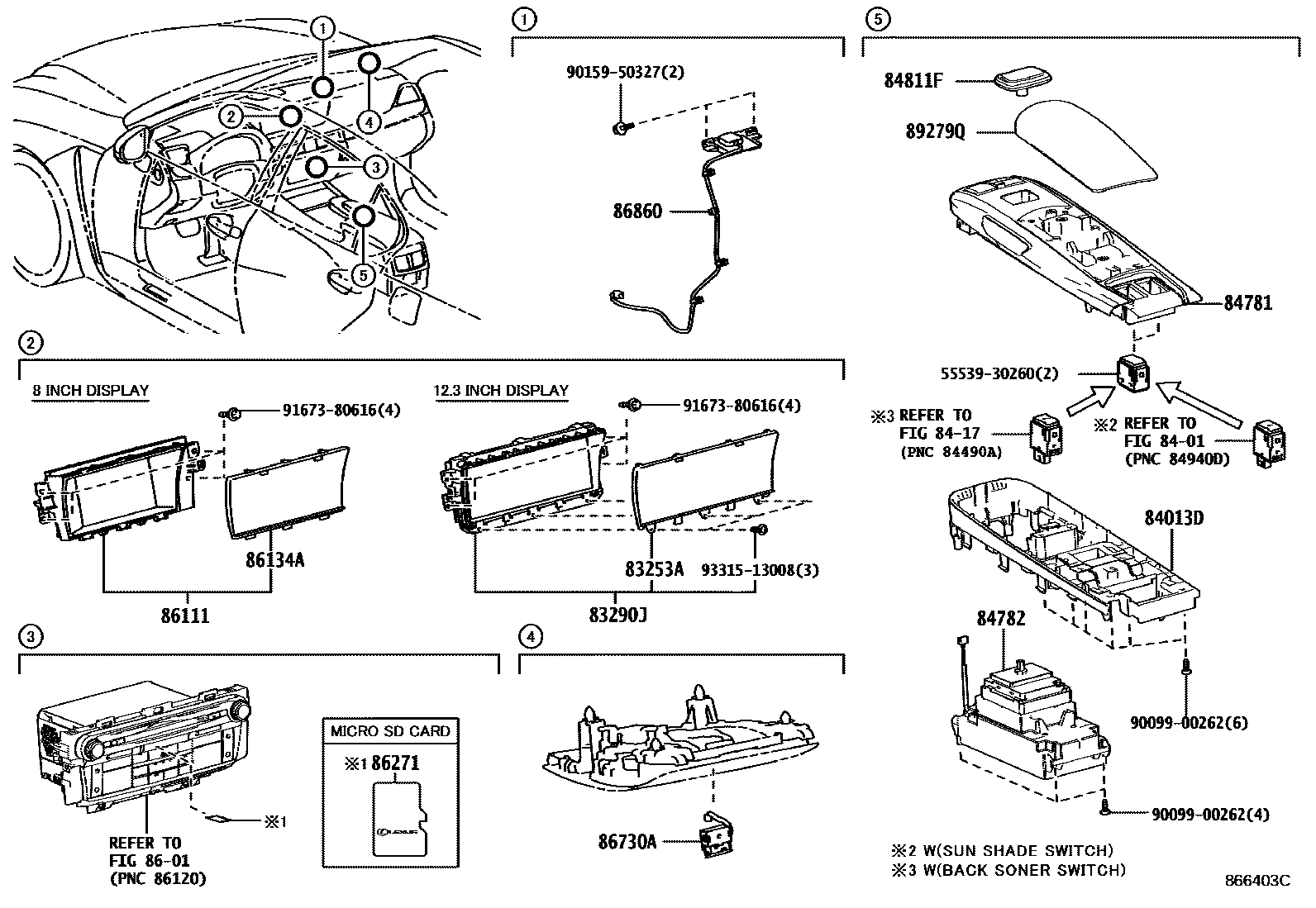

Parts diagram
83253AGLASS, ACCESSORY METER
main83253-30010i201510-201909
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
83290JMETER ASSY, ACCESSORY
main83290-30250i201510-201706
PHILIPPINE SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main83290-30251i201707-201909
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
8401
84013DPANEL SUB-ASSY, INTEGRATION
main84013-30260i201510-202007
main84013-30270i201510-202007
8417
84781SWITCH, REMOTE OPERATION
main84781-30160i201510-201801
main84781-30161i201802-202007
main84781-30170i201510-201801
PHILIPPINE SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main84781-30171i201802-202007
PHILIPPINE SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main84781-30190supersedes 84781-30181i201510-201801
EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
main84781-30191supersedes 84781-30181i201802-202007
EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
84782BOARD, REMOTE OPERATION
main84782-30030i201510-202007
84811FKNOB, SWITCH
main84811-30070i201510-202007
8601
86111MULTI-DISPLAY
main86110-30350i201510-202007
PIONEER
main86110-30450i201510-201702
PIONEER
main86110-30451i201703-202007
PIONEER
86134APARTS, MULTI-DISPLAY
main86134-30140i201510-202007
86271DISC, DISC PLAYER
main86271-48330i201510-201609
EMV & NAVIGATION SYSTEM-8INCH DISPLAY,MICRO SD CARD
main86271-48331i201609-201708
EMV & NAVIGATION SYSTEM-8INCH DISPLAY,MICRO SD CARD
main86271-48332i201708-201808
EMV & NAVIGATION SYSTEM-8INCH DISPLAY,MICRO SD CARD
main86271-48333i201808-201908
EMV & NAVIGATION SYSTEM-8INCH DISPLAY,MICRO SD CARD
main86271-48334i201908-202007
EMV & NAVIGATION SYSTEM-8INCH DISPLAY,MICRO SD CARD
sub86271-48335
main86271-48361i201609-201709
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY,MICRO SD CARD
sub86271-48364
main86271-48362i201709-201809
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY,MICRO SD CARD
sub86271-48364
main86271-48363i201809-201909
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY,MICRO SD CARD
sub86271-48364
main86271-48370supersedes 86271-48380i201510-201609
BRUNEI SPEC&SEAT HEATER-WITHOUT&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,MICRO SDCARD
main86271-48371supersedes 86271-48381i201609-201708
BRUNEI SPEC&SEAT HEATER-WITHOUT&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,MICRO SDCARD
main86271-48372supersedes 86271-48384i201708-201808
BRUNEI SPEC&SEAT HEATER-WITHOUT&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,MICRO SDCARD
main86271-48373supersedes 86271-48384i201808-201908
SINGAPORE SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY)&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,MICRO SD CARD
main86271-48374supersedes 86271-48384i201908-202007
BRUNEI SPEC&SEAT HEATER-WITHOUT&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,MICRO SDCARD
sub86271-48375
main86271-48390supersedes 86271-48380i201510-201609
SOUTH AFRICA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,MICRO SD CARD
main86271-48391i201609-201709
SOUTH AFRICA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,MICRO SD CARD
main86271-48392i201709-201808
SOUTH AFRICA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,MICRO SD CARD
main86271-48393supersedes 86271-48384i201808-201908
SOUTH AFRICA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,MICRO SD CARD
main86271-48394supersedes 86271-48384i201908-202007
SOUTH AFRICA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,MICRO SD CARD
sub86271-48395
main86271-53381i201510-201609
TAIWAN SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY,MICRO SD CARD
sub86271-53382
86730AMICROPHONE ASSY, TELEPHONE
main86730-30220i201510-202007
main86730-30230i201510-202007
86860ANTENNA ASSY, NAVIGATION
main86860-30220i201510-201706
main86860-30310i201510-201706
main86860-30320i201707-202007
main86860-30350i201707-202007
89279QCOVER
main89279-30170i201510-202007
main89279-30180i201510-202007
5553930260COVER, SPARE SWITCH HOLE
main55539-30260
9009900262
main90099-00262
9015950327
main90159-50327
9167380616
main91673-80616
9331513008
main93315-13008

20 parts on this diagram · 2 diagrams in section
