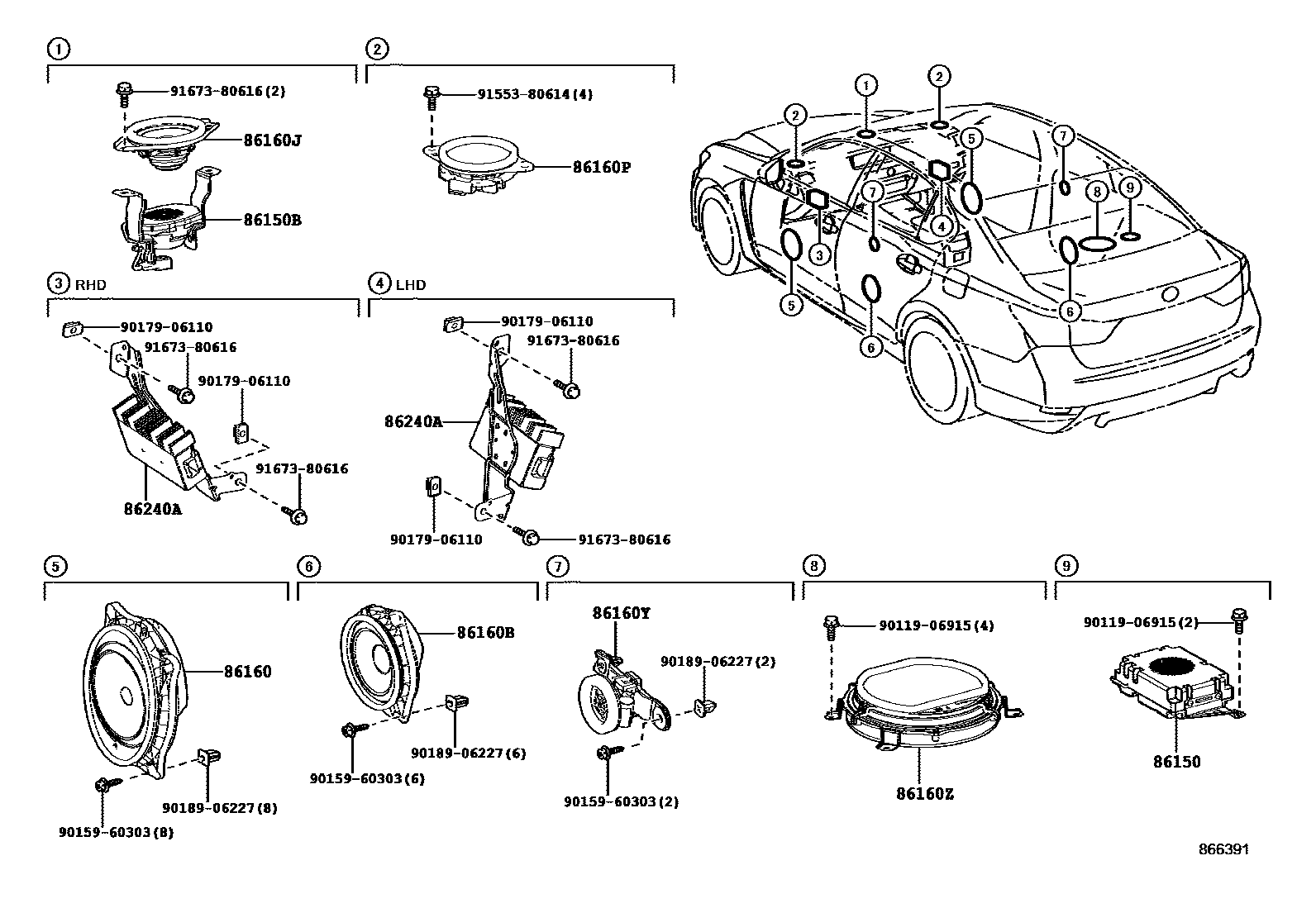

SPEAKER

0001 1PIONEER 0002 1MARK LEVINSON

86150SPEAKER ASSY, W/BOX, NO.1

main86150-30580iURL10201510-202007

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-30560iURL10201510-202007

86160SPEAKER ASSY, FRONT NO.1

main86160-48370iURL10201510-202007

86160BSPEAKER ASSY, REAR

main86160-30E20iURL10201510-202007

86160JSPEAKER ASSY, FRONT NO.3

main86160-30E60iURL10201510-202007

86160PSPEAKER ASSY, FRONT NO.2

main86160-48380iURL10201510-202007

86160YSPEAKER ASSY, REAR NO.2

main86150-30380iURL10201510-202007

86160ZSPEAKER ASSY, REAR NO.3

main86160-30E50iURL10201510-202007

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-30060iURL10..GCC,GEN201510-201609

sub86240-30061

main86240-30070iURL10..ARL201510-201609

main86240-30080iURL10..GCC,GEN201609-201709

sub86240-30081

main86240-30081iURL10..GCC,GEN201710-202007

main86240-30090iURL10..ARL201609-202007

9011906915

main90119-06915

9015960303

main90159-60303

9017906110

main90179-06110

9018906227

main90189-06227

9155380614

main91553-80614

9167380616

main91673-80616

15 parts on this diagram · 2 diagrams in section
