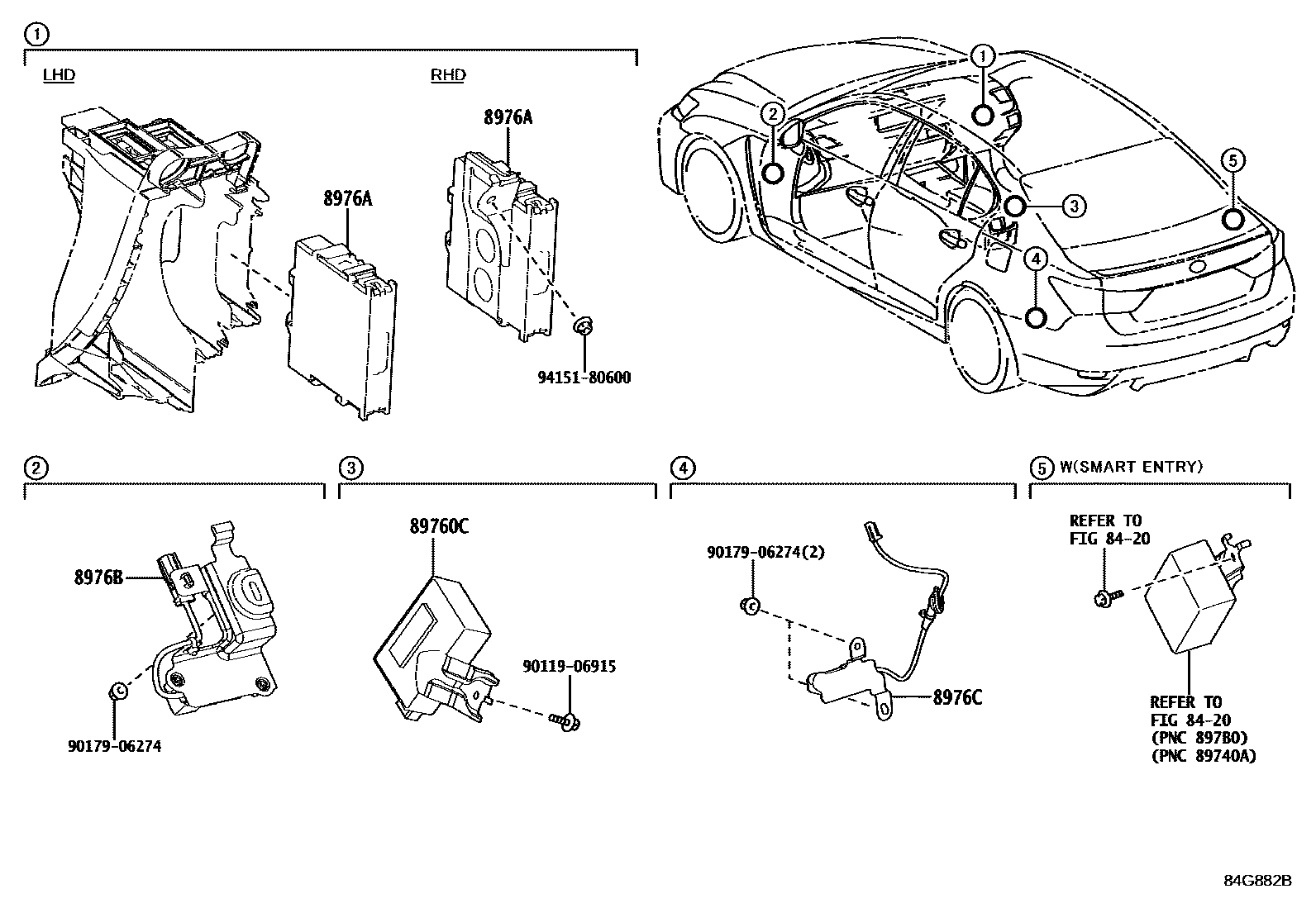

TIRE PRESSURE WARNING SYSTEM

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-30061iURL10..ARL201510-202007

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-30012iURL10..ARL201510-201811

SOUTH AFRICA SPEC

sub8976A-30013

main8976A-30012iURL10..ARL201510-201811

MALAYSIA SPEC

sub8976A-30013

main8976A-30013iURL10..ARL201812-202007

SOUTH AFRICA SPEC

main8976A-30013iURL10..ARL201812-202007

MALAYSIA SPEC

main8976A-33030iURL10..GCC,GEN201510-201811

sub8976A-33032

main8976A-33032iURL10..GCC,GEN201812-202007

sub8976A-33033

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-30011iURL10201510-202007

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-24011iURL10..GCC,GEN201510-202007

SOUTH AFRICA SPEC

main8976C-24011iURL10..GCC,GEN201510-202007

MALAYSIA SPEC

9011906915

main90119-06915

9017906274

main90179-06274

9415180600

main94151-80600

7 parts on this diagram · 1 diagram in section
