AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iURL10201510-202007

89170ACOMPUTER ASSY, AIRBAG

main89170-30G30iURL10..GCC,GEN201510-202007

main89170-30G40iURL10..ARL201510-202007

89173ASENSOR, AIRBAG, FRONT RH

main89173-59286iURL10201510-202007

89174ASENSOR, AIRBAG, FRONT LH

main89173-59286iURL10201510-202007

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iURL10201510-202007

89833SENSOR, AIRBAG, REAR RH

main89831-30050iURL10201510-202007

89834SENSOR, AIRBAG, REAR LH

main89831-30050iURL10201510-202007

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-68030iURL10201510-202007

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-68030iURL10201510-202007

9011908C89

main90119-08C89

9155380618

main91553-80618

91553A0622

main91553-A0622

9415180800

main94151-80800

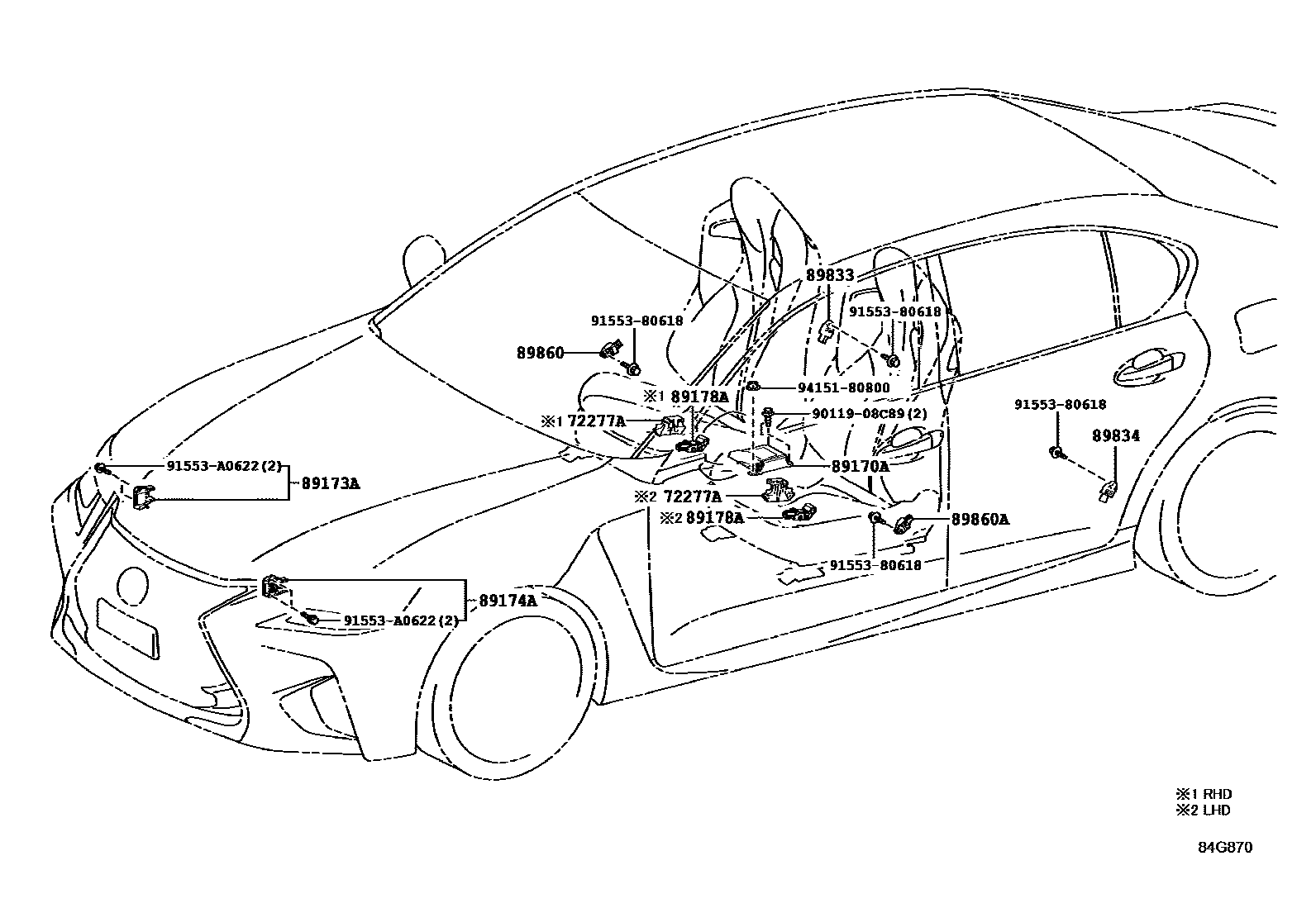

13 parts on this diagram · 1 diagram in section
