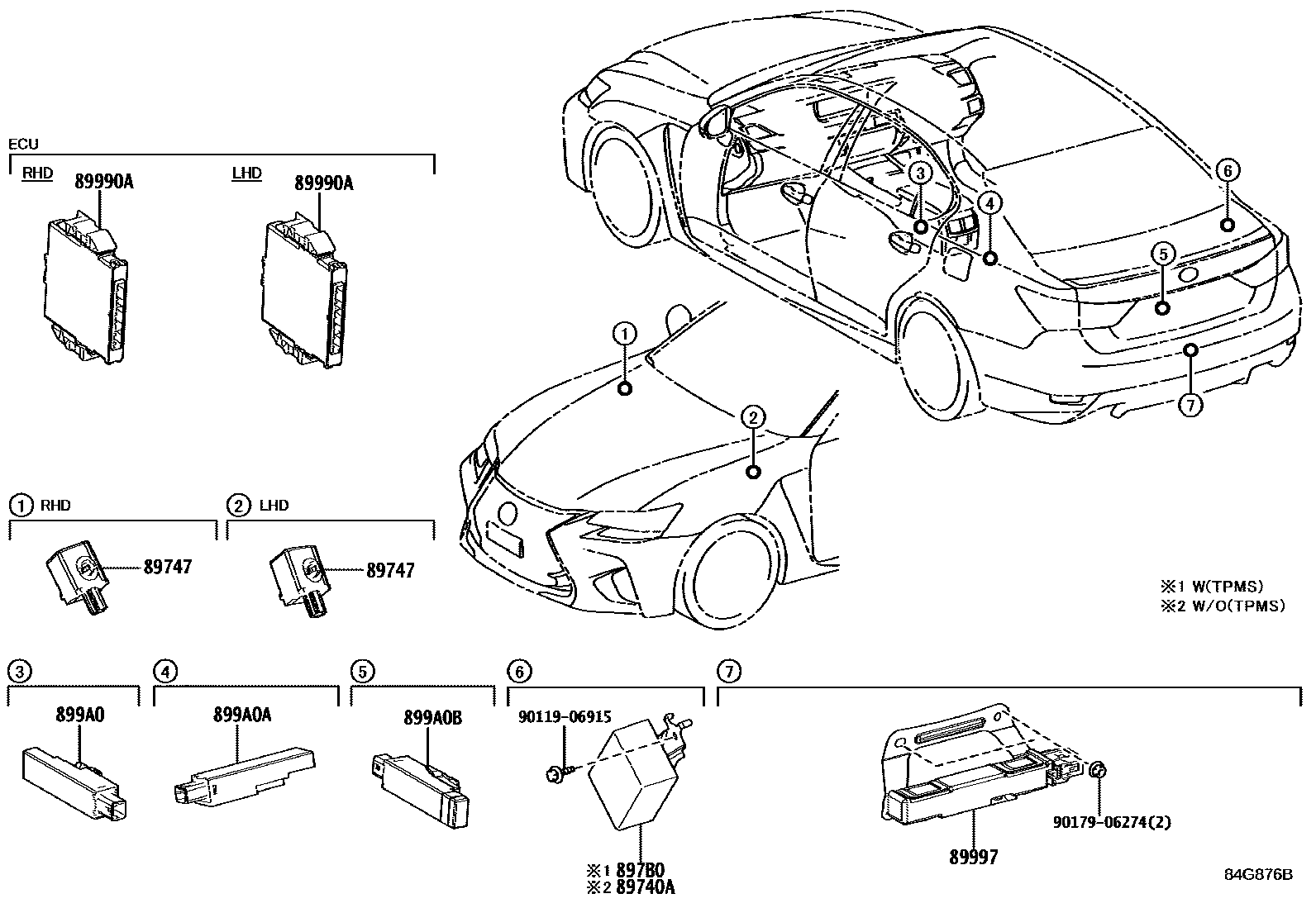

WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-30410iURL10..ARL201510-202007

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iURL10¥2,900201510-202007

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-30450iURL10..GEN201510-202007

SOUTH AFRICA SPEC

main897B0-30450iURL10..GEN201510-202007

MALAYSIA SPEC

main897B0-30450iURL10..GEN201510-202007

JORDAN SPEC

main897B0-30450iURL10..GEN201510-202007

LEBANON SPEC

main897B0-30500iURL10..GCC201510-202007

89990ACOMPUTER ASSY, SMART KEY

main89990-30590iURL10¥59,300201510-201709

sub89990-30591¥59,300

main89990-30591iURL10¥59,300201710-201812

sub89990-30592¥59,300

main89990-30592iURL10¥59,300201901-202007

89997ANTENNA, ELECTRICAL KEY

main89997-30080iURL10¥5,400201510-202007

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iURL10¥1,410201510-202007

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A1-60010iURL10¥4,940201510-202007

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-30030iURL10¥2,240201510-201608

sub899A0-60010¥1,410

main899A0-60010iURL10¥1,410201609-202007

9011906915

main90119-06915¥60

9017906274

main90179-06274¥70

10 parts on this diagram · 1 diagram in section
