CLEARANCE & BACK SONAR

0001 1 0002 1

5201

5202

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-30031iURL10201510-202007

CLEARANCE & BACK SONAR-WITH

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-30220iURL10..ARL201510-202007

CLEARANCE & BACK SONAR-WITH

main89340-30230iURL10..GCC,GEN201510-202007

CLEARANCE & BACK SONAR-WITH

89341ASENSOR, ULTRASONIC, NO.1

main89341-78010-A1iURL10201510-202007

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89341-78010-B0iURL10..GCC,GEN201510-201909

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89341-78010-B0iURL10..ARL201510-201909

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9 ,1K7

main89341-78010-B2iURL10201510-202007

CLEARANCE & BACK SONAR-WITH,SONIC TITANIUM,1J7

main89341-78010-B3iURL10201510-202007

CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2

main89341-78010-B5iURL10201609-202007

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

main89341-78010-C3iURL10201510-202007

CLEARANCE & BACK SONAR-WITH,GRAPHITE BLACK GF.,223

main89341-78010-D0iURL10201510-202007

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89341-78010-E3iURL10201510-201709

CLEARANCE & BACK SONAR-WITH,LAVA ORANGE CS.,4W7

main89341-78010-F1iURL10201805-202007

CLEARANCE & BACK SONAR-WITH,NAPLES YELLOW,5C1

main89341-78010-J3iURL10201510-202007

CLEARANCE & BACK SONAR-WITH,HEAT BLUE CONTRAST LAYERI,8X1

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iURL10201510-202007

CLEARANCE & BACK SONAR-WITH

89348NCLIP, ULTRASONIC SENSOR, NO.1

main89348-35030iURL10201510-202007

CLEARANCE & BACK SONAR-WITH

9415180600

main94151-80600

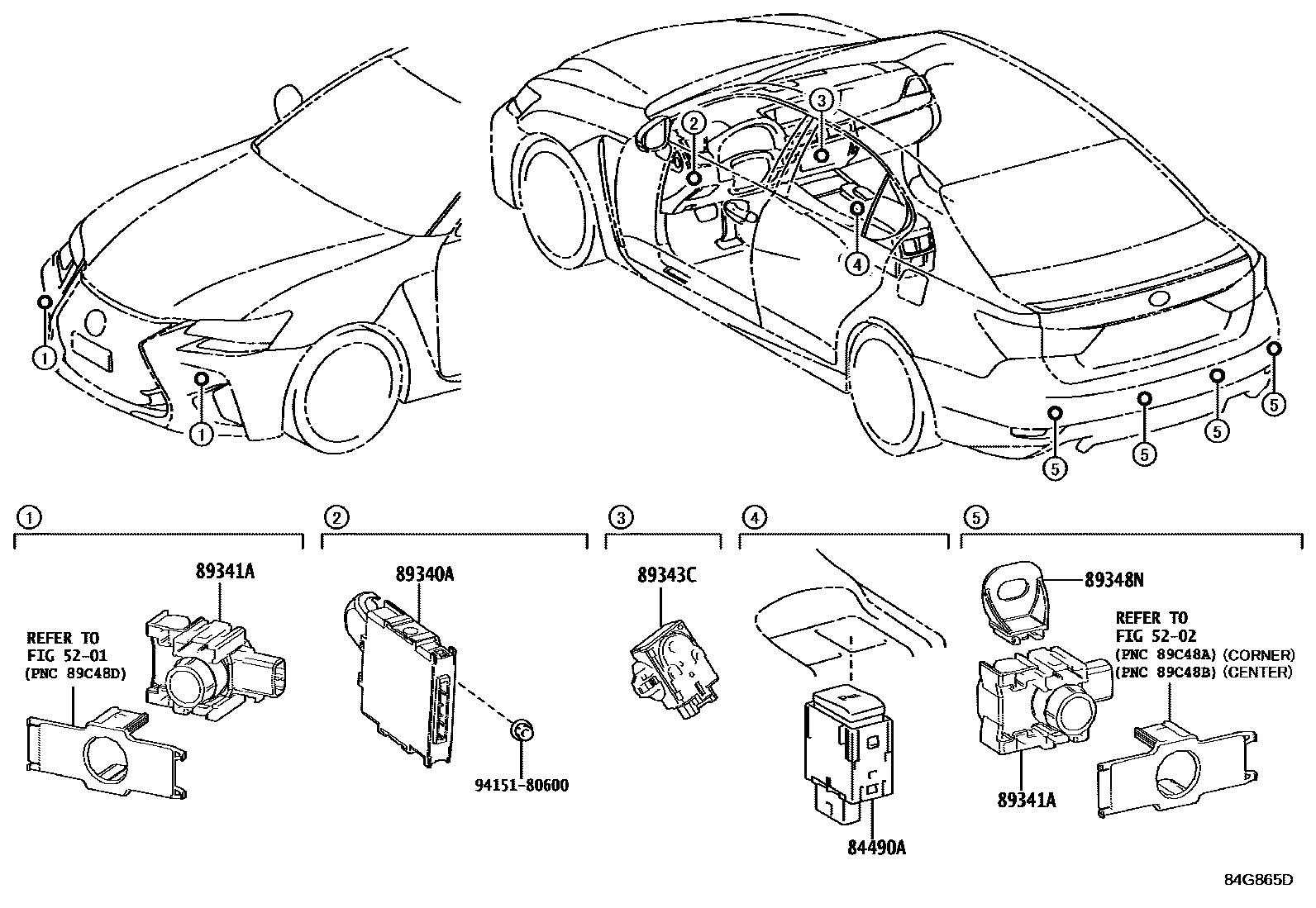

8 parts on this diagram · 2 diagrams in section
