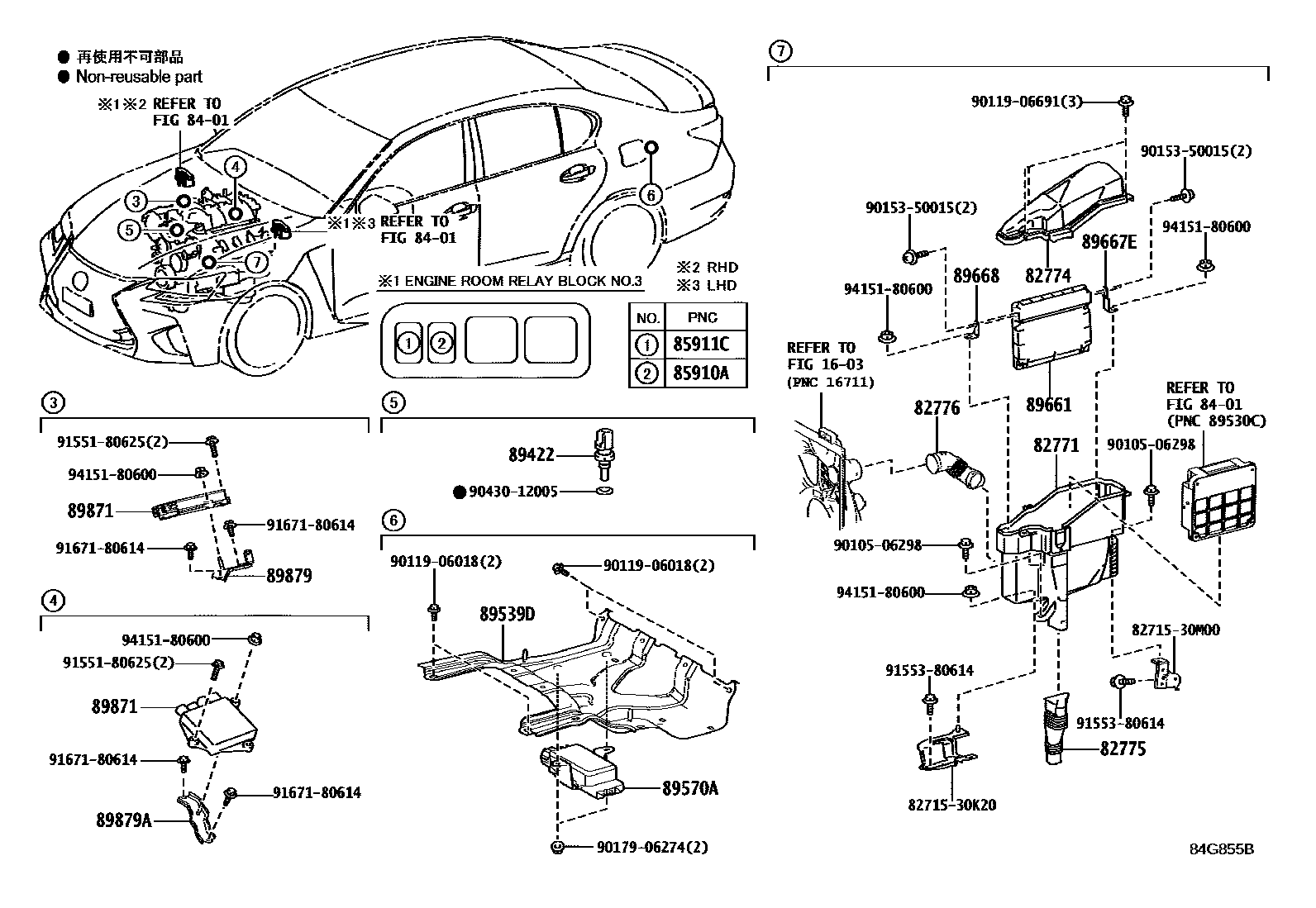

ELECTRONIC FUEL INJECTION SYSTEM
1603
82771BOX, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82775DUCT, ENGINE ROOM ECU INLET
82776DUCT, ENGINE ROOM ECU OUTLET
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85911CRELAY, EFI 2
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89539DBRACKET, COMPUTER
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
89661COMPUTER, ENGINE CONTROL
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89871DRIVER, INJECTOR
89879BRACKET, INJECTOR DRIVER
89879ABRACKET, INJECTOR DRIVER
8271530K20BRACKET,WIRING HARNESS CLAMP
main82715-30K20
8271530M00BRACKET,WIRING HARNESS CLAMP
main82715-30M00
9010506298
main90105-06298
9011906018
main90119-06018
9011906691
main90119-06691
9015350015
main90153-50015
9017906274
main90179-06274
9043012005
main90430-12005
9155180625
main91551-80625
9155380614
main91553-80614
9167180614
main91671-80614
9415180600
main94151-80600
29 parts on this diagram · 1 diagram in section
