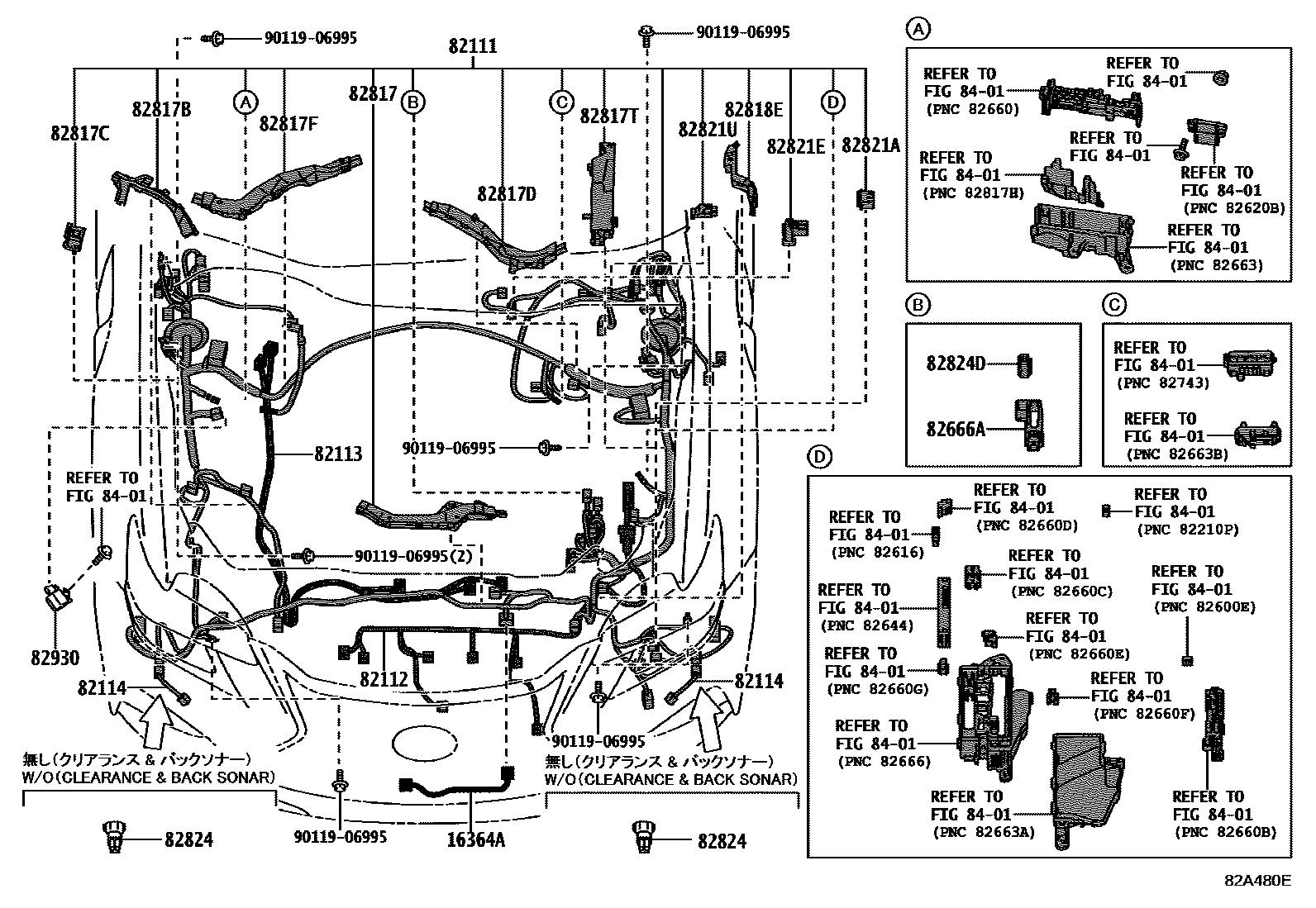

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1DOOR 0008 1FLOOR & ROOF 0009 1SEAT 0010 1CLAMP & BRACKET 0011 1CONNECTOR 1/2 0012 1CONNECTOR 2/2

16364AWIRE, COOLING FAN

main16364-38040i2URGSE..URL10¥1,290201510-202007

82111WIRE, ENGINE ROOM MAIN

main82111-3AZ10iURL10..ARL201510-201609

main82111-3AZ11iURL10..ARL201609-201709

main82111-3AZ12iURL10..ARL201709-202007

main82111-3AZ30iURL10..GCC,GEN201510-201609

main82111-3AZ31iURL10..GCC,GEN201609-201709

main82111-3AZ32iURL10..GCC,GEN201709-202007

82112WIRE, ENGINE ROOM, NO.2

main82112-30M70iURL10..GCC201510-202007

main82112-30M80iURL10..ARL,GEN201510-202007

82113WIRE, ENGINE ROOM, NO.3

main82113-24050iURL10..ARL¥11,700201510-202007

main82113-24060iURL10..GCC,GEN201510-202007

82114WIRE, ENGINE ROOM, NO.4

main82114-30360¥480

82666AHOLDER, CONNECTOR NO.2

main82666-30A70iURL10¥1,120201510-202007

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-30X30iURL10¥1,780201510-202007

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-30D30iURL10¥760201510-202007

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-30K20iURL10..ARL¥580201510-201709

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-30B70iURL10..GCC,GEN201510-202007

main82817-30M20iURL10..ARL¥1,390201510-202007

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-30M00iURL10..GCC,GEN201510-202007

main82817-53280iURL10..ARL¥1,200201510-202007

82817TPROTECTOR, WIRING HARNESS, NO.15

main82817-30A90iURL10..ARL¥990201709-202007

main82817-30M70iURL10..GCC,GEN201510-201709

sub82817-3AK40

main82817-30Z00iURL10..ARL¥1,190201510-201709

sub82817-30A90¥990

main82817-3AK40iURL10..GCC,GEN201709-202007

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-30N40iURL10¥500201510-202007

82818EPROTECTOR, WIRING HARNESS, NO.6

main82817-24A70iURL10¥600201510-202007

82821ACOVER, CONNECTOR

main82821-50560iURL10¥220201510-202007

82821ECOVER, CONNECTOR

main82821-12510iURL10..GCC,GEN¥190201510-202007

82821UCOVER, CONNECTOR

main82821-22120iURL10¥190201510-202007

82824CONNECTOR, WIRING HARNESS

main82824-30720iURL10¥750201510-202007

82824DCONNECTOR, WIRING HARNESS

main82824-30180iURL10¥560201510-202007

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-30030iURL10..GCC,GEN201510-202007

main82930-30040iURL10..ARL¥5,200201510-202007

8401

9011906995

main90119-06995¥60

22 parts on this diagram · 12 diagrams in section
