BATTERY & BATTERY CABLE

28800BATTERY

main28800-38080i2URGSE..URL10..ARL201510-202007

80D26L

sub28800-38081

main28800-38100i2URGSE..URL10..GCC,GEN201510-202007

80D26R

sub28800-38101

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2URGSE..URL10..ARL201510-202007

main90982-05062i2URGSE..URL10..GCC,GEN201510-202007

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30640i2URGSE..URL10..ARL201510-202007

main82821-50470i2URGSE..URL10..GCC,GEN201510-202007

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2URGSE..URL10201510-202007

28889BRACKET, BATTERY WIRE CLAMP

main82715-24350i2URGSE..URL10..ARL201510-202007

main82715-53660i2URGSE..URL10..GCC,GEN201510-202007

28898PLATE, BATTERY

main28897-36030i2URGSE..URL10..GCC201609-202007

28899INSULATOR, BATTERY

main28899-36040i2URGSE..URL10..ARL201510-202007

main28899-36110i2URGSE..URL10..GCC,GEN201510-202007

8202

9026905037

main90269-05037

9415180801

main94151-80801

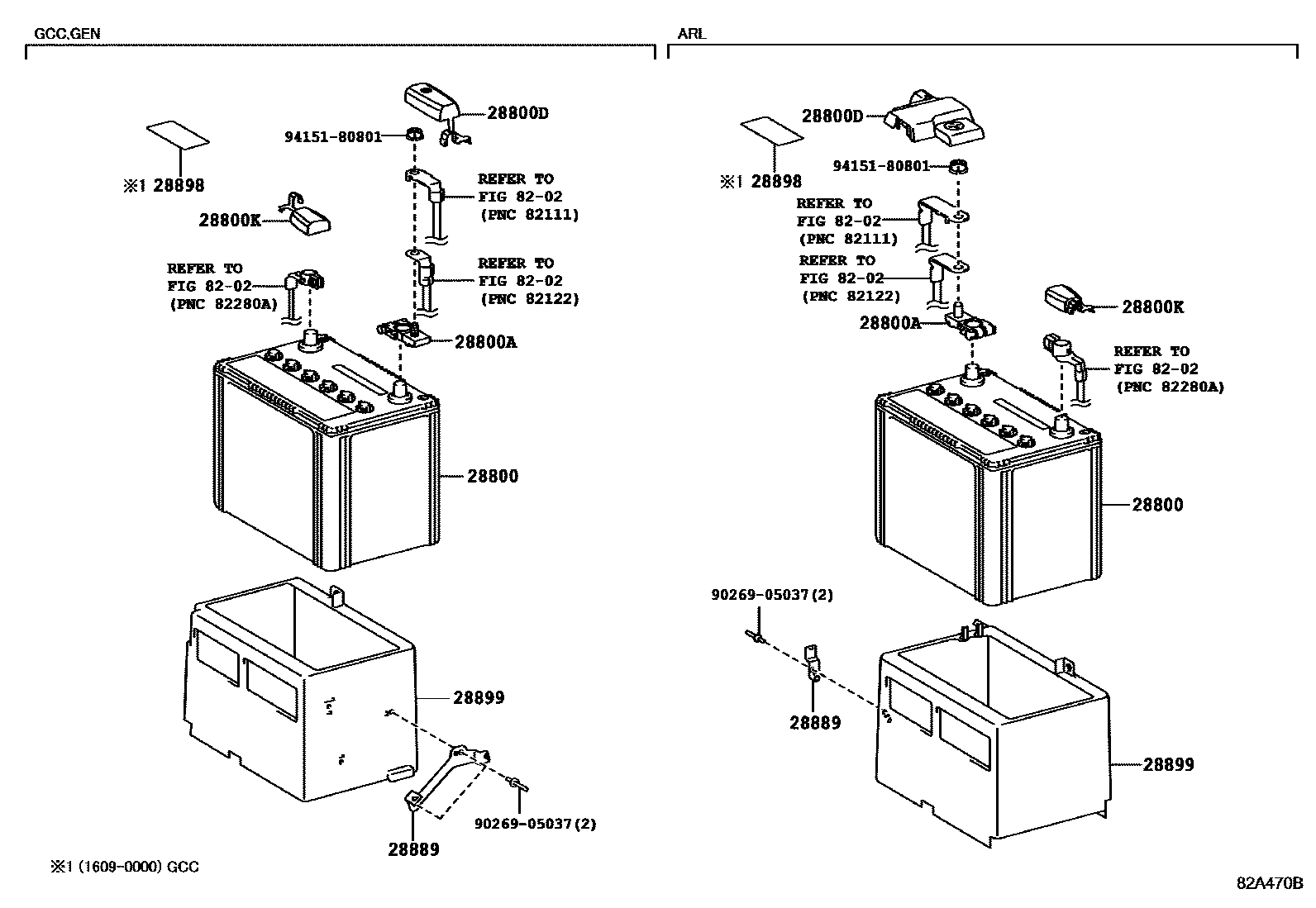

10 parts on this diagram · 1 diagram in section
