SIDE MOULDING
57497ASHIELD, REAR FLOOR HOUSING
57498ASHIELD, REAR FLOOR HOUSING, NO.2
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
DK.GRAY MC.,1G0 ,5C1
MARCURY GRAY MC.MATT,1K7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
HEAT BLUE CONTRAST LAYERI,8X1
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
DK.GRAY MC.,1G0 ,5C1
MARCURY GRAY MC.MATT,1K7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
HEAT BLUE CONTRAST LAYERI,8X1
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75711BMOULDING, FRONT DOOR BELT, RH
75712BMOULDING, FRONT DOOR BELT, LH
75718COVER, FRONT DOOR BELT MOULDING END, REAR RH
75719COVER, FRONT DOOR BELT MOULDING END, REAR LH
75721AMOULDING, REAR DOOR BELT, RH
75722AMOULDING, REAR DOOR BELT, LH
75726COVER, REAR DOOR BELT MOULDING END, FRONT RH
75727COVER, REAR DOOR BELT MOULDING END, FRONT LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
DK.GRAY MC.,1G0
MARCURY GRAY MC.MATT,1K7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
NAPLES YELLOW,5C1
HEAT BLUE CONTRAST LAYERI,8X1
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
DK.GRAY MC.,1G0
MARCURY GRAY MC.MATT,1K7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
NAPLES YELLOW,5C1
HEAT BLUE CONTRAST LAYERI,8X1
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75863ACOVER, ROCKER PANEL MOULDING END, REAR RH
75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3
75864ACOVER, ROCKER PANEL MOULDING END, REAR LH
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
75868BCLIP, ROCKER PANEL MOULDING, NO.2
76921APROTECTOR, SIDE MUDGUARD, NO.1
76922CPROTECTOR, SIDE MUDGUARD, NO.2
76923BRETAINER, SIDE MUDGUARD
9015960623
main90159-60623
9016240034
main90162-40034
9017906274
main90179-06274
9018306019
main90183-06019
9018904059
main90189-04059
9018906172
main90189-06172
9026904051
main90269-04051

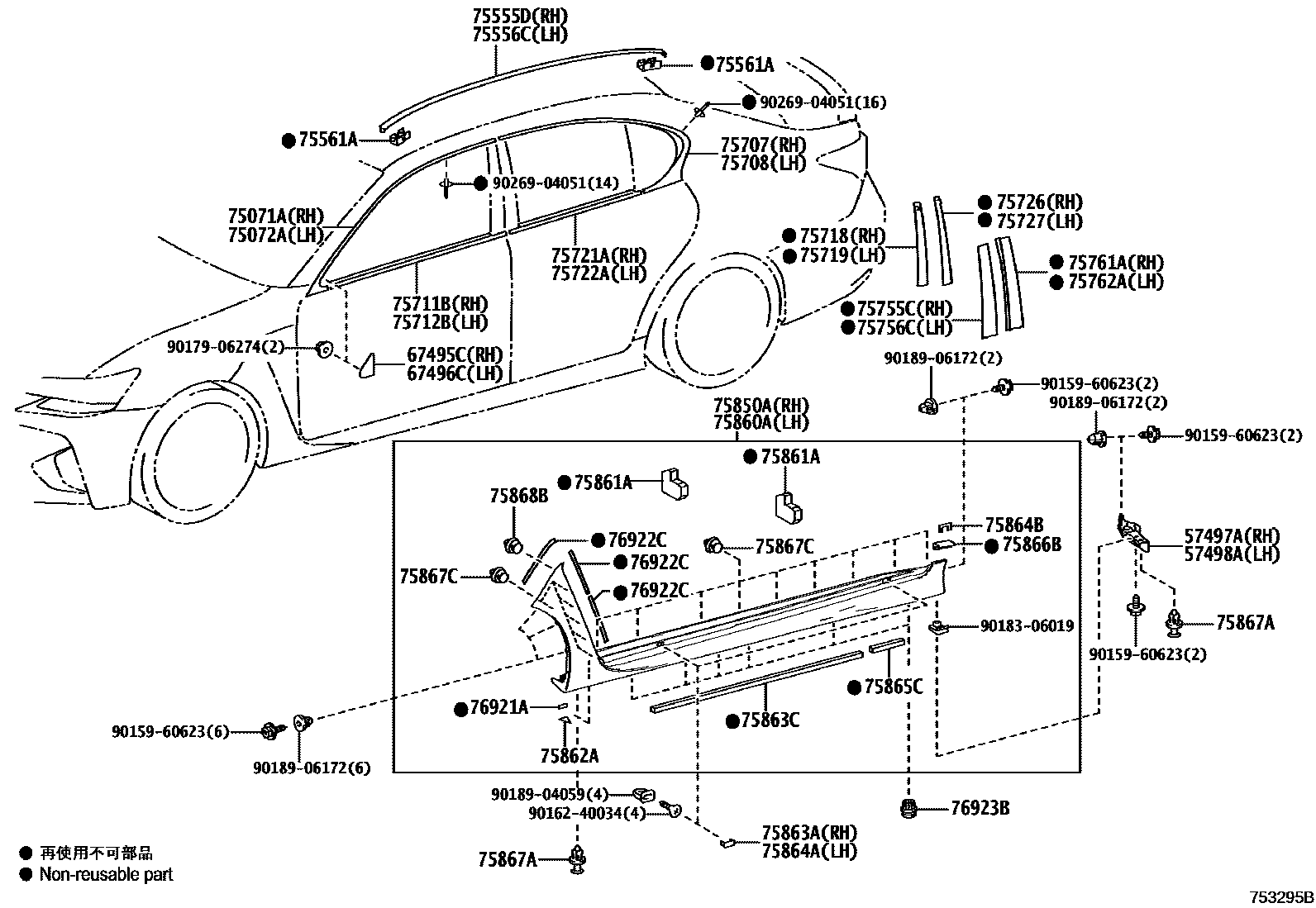

46 parts on this diagram · 1 diagram in section
