E
EPC Data

FRONT SEAT & SEAT TRACK

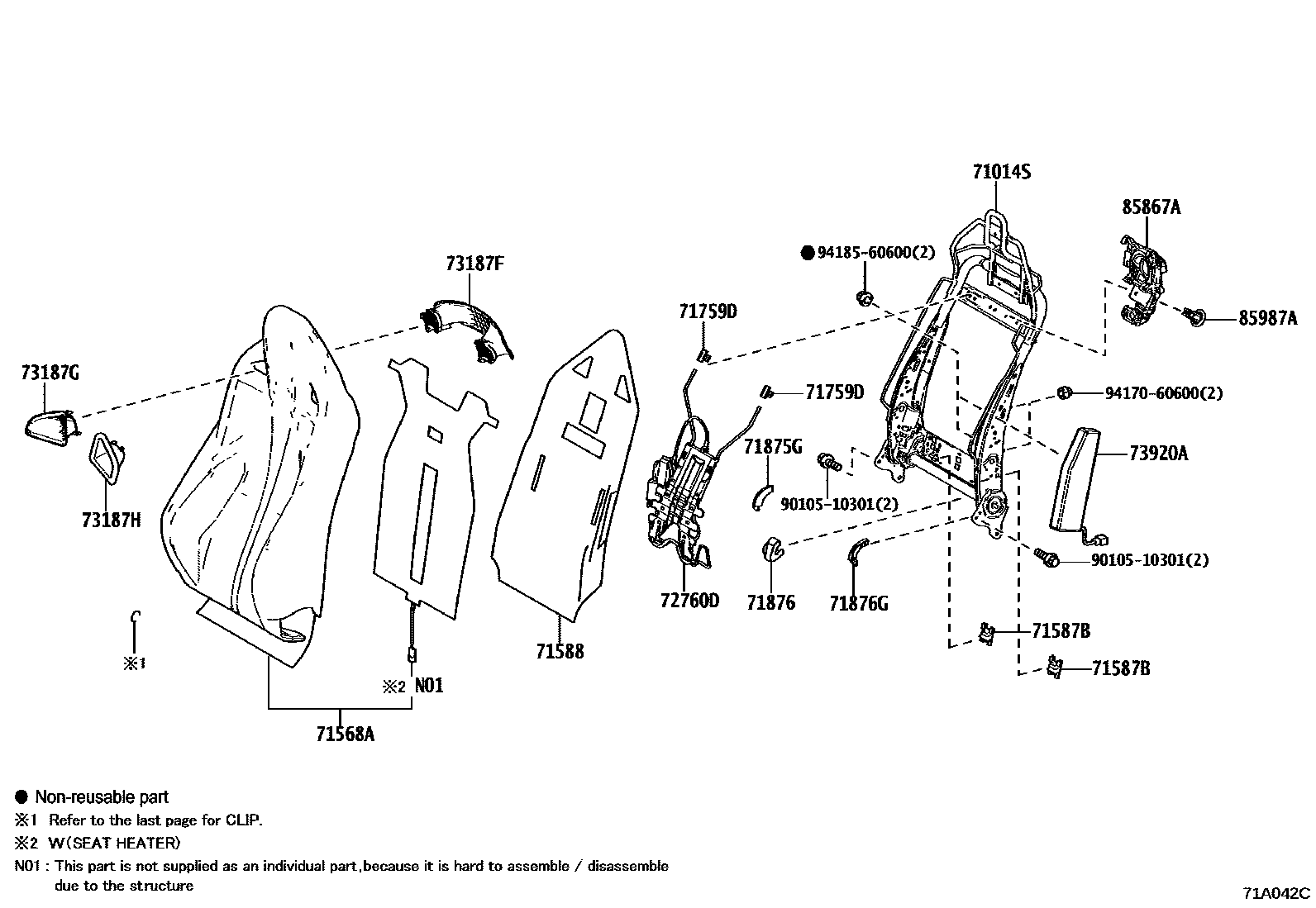

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-30B50i201510-202007
71568APAD, FRONT SEATBACK W/COVER, LH
main71402-30010-C0i201510-201909
BLACK/BLUE,TRIM2#
sub71402-30010
sub71402-30011
main71402-30010-C9i201909-202007
BLACK/BLUE,TRIM2#
sub71402-30010
sub71402-30011
main71402-30040-20i201909-202007
BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-20i201909-202007
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-20i201909-202007
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-20i201909-202007
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-20i201909-202007
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-20i201909-202007
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-C4i201510-201909
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/WHITE,TRIM0#
sub71402-30041
sub71402-30040
main71402-30040-C4i201510-201909
BLACK/WHITE,TRIM0#
sub71402-30041
sub71402-30040
main71402-30040-C5i201510-201909
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-C5i201510-201909
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-C5i201510-201909
BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-C5i201510-201909
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-C5i201510-201909
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-C5i201510-201909
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/BLACK,TRIM2#
sub71402-30041
sub71402-30040
main71402-30040-C6i201709-201909
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C6i201709-201909
BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C6i201709-201909
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C6i201709-201909
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C6i201709-201909
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C6i201709-201909
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C8i201909-202007
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/WHITE,TRIM0#
sub71402-30041
sub71402-30040
main71402-30040-C8i201909-202007
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK/WHITE,TRIM0#
sub71402-30041
sub71402-30040
main71402-30040-C8i201909-202007
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/WHITE,TRIM0#
sub71402-30041
sub71402-30040
main71402-30040-C8i201909-202007
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/WHITE,TRIM0#
sub71402-30041
sub71402-30040
main71402-30040-C8i201909-202007
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK/WHITE,TRIM0#
sub71402-30041
sub71402-30040
main71402-30040-C8i201909-202007
BLACK/WHITE,TRIM0#
sub71402-30041
sub71402-30040
main71402-30040-C9i201909-202007
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C9i201909-202007
BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C9i201909-202007
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C9i201909-202007
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C9i201909-202007
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-C9i201909-202007
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK/RED,TRIM33,34,35
sub71402-30041
sub71402-30040
main71402-30040-D0i201510-201709
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),RED/BLACK,TRIM3#
sub71402-30041
sub71402-30040
main71402-30040-D0i201709-201909
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D0i201709-201909
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D0i201709-201909
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D0i201709-201909
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D0i201709-201909
RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D0i201709-201909
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D0i201510-201709
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),RED/BLACK,TRIM3#
sub71402-30041
sub71402-30040
main71402-30040-D0i201510-201709
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),RED/BLACK,TRIM3#
sub71402-30041
sub71402-30040
main71402-30040-D0i201510-201709
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),RED/BLACK,TRIM3#
sub71402-30041
sub71402-30040
main71402-30040-D0i201510-201709
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),RED/BLACK,TRIM3#
sub71402-30041
sub71402-30040
main71402-30040-D0i201510-201709
RED/BLACK,TRIM3#
sub71402-30041
sub71402-30040
main71402-30040-D1i201909-202007
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D1i201909-202007
RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D1i201909-202007
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D1i201909-202007
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D1i201909-202007
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
main71402-30040-D1i201909-202007
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),RED/BLACK,TRIM30,31,32
sub71402-30041
sub71402-30040
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-52030i201510-202007
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-52030i201510-202007
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
main71587-30060i201510-202007
71759DHOOK, FRONT SEATBACK, NO.2
main71759-47011i201510-202007
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-60210-C0i201510-202007
BLACK,TRIM0#,1#,2#,3#,8#
main71875-60210-C0i201510-202007
BLACK,TRIM0#,2#,3#,4#
main71875-60210-C0i201510-202007
BLACK,TRIM0#,1#,2#,3#,4#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-30200i201510-202007
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-60210-C0i201510-202007
BLACK,TRIM0#,2#,3#,4#
main71876-60210-C0i201510-202007
BLACK,TRIM0#,1#,2#,3#,4#
main71876-60210-C0i201510-202007
BLACK,TRIM0#,1#,2#,3#,8#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-76010i201510-202007
73187FGUIDE, FRONT SEAT SHOULDER BELT, LH NO.1
main73187-24080-B0i201510-202007
SILVER,TRIM0#,1#,2#,3#,8#
main73187-24080-B0i201510-202007
SILVER,TRIM0#,2#,3#,4#
main73187-24080-B0i201510-202007
SILVER,TRIM0#,1#,2#,3#,4#
73187GGUIDE, FRONT SEAT SHOULDER BELT, LH NO.2
main73187-30020-B0i201510-202007
SILVER,TRIM0#,1#,2#,3#,8#
main73187-30020-B0i201510-202007
SILVER,TRIM0#,2#,3#,4#
main73187-30020-B0i201510-202007
SILVER,TRIM0#,1#,2#,3#,4#
73187HGUIDE, FRONT SEAT SHOULDER BELT, LH NO.3
main73187-30030-B0i201510-202007
SILVER,TRIM0#,1#,2#,3#,8#
main73187-30030-B0i201510-202007
SILVER,TRIM0#,2#,3#,4#
main73187-30030-B0i201510-202007
SILVER,TRIM0#,1#,2#,3#,4#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-30150i201510-202007
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-53020i201510-202007
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY)
main85867-53020i201510-202007
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY)
main85867-53020i201510-202007
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY)
main85867-53020i201510-202007
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY)
main85867-53020i201510-202007
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY)
main85867-53020i201510-202007
AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
main85867-53020i201510-202007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER)
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
main85867-53030i201510-202007
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY)
main85867-53030i201510-202007
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY)
main85867-53030i201510-202007
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY)
main85867-53030i201510-202007
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY)
main85867-53030i201510-202007
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY)
main85867-53030i201510-202007
AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)
main85867-53030i201510-202007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER)
85987ACLIP
main90467-08186-C0i201510-201610
BLACK
sub90467-08186
main90467-08186-C0i201510-201610
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK
sub90467-08186
main90467-08186-C0i201510-201610
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK
sub90467-08186
main90467-08186-C0i201510-201610
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK
sub90467-08186
main90467-08186-C0i201510-201610
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK
sub90467-08186
main90467-08186-C0i201510-201610
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK
sub90467-08186
main90467-08186-C0i201510-201610
AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK
sub90467-08186
main90467-08186-C0i201510-201610
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK
sub90467-08186
main90467-08186-C3i201610-202007
BLACK
sub90467-08186
main90467-08186-C3i201610-202007
BRUNEI SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK
sub90467-08186
main90467-08186-C3i201610-202007
INDONESIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK
sub90467-08186
main90467-08186-C3i201610-202007
SINGAPORE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK
sub90467-08186
main90467-08186-C3i201610-202007
MALAYSIA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER COOLER ONLY),BLACK
sub90467-08186
main90467-08186-C3i201610-202007
PHILIPPINE SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER &PASSENGER COOLER ONLY),BLACK
sub90467-08186
main90467-08186-C3i201610-202007
AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK
sub90467-08186
main90467-08186-C3i201610-202007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK
sub90467-08186
9010510301
main90105-10301
9417060600
main94170-60600
9418560600
main94185-60600

20 parts on this diagram · 9 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
