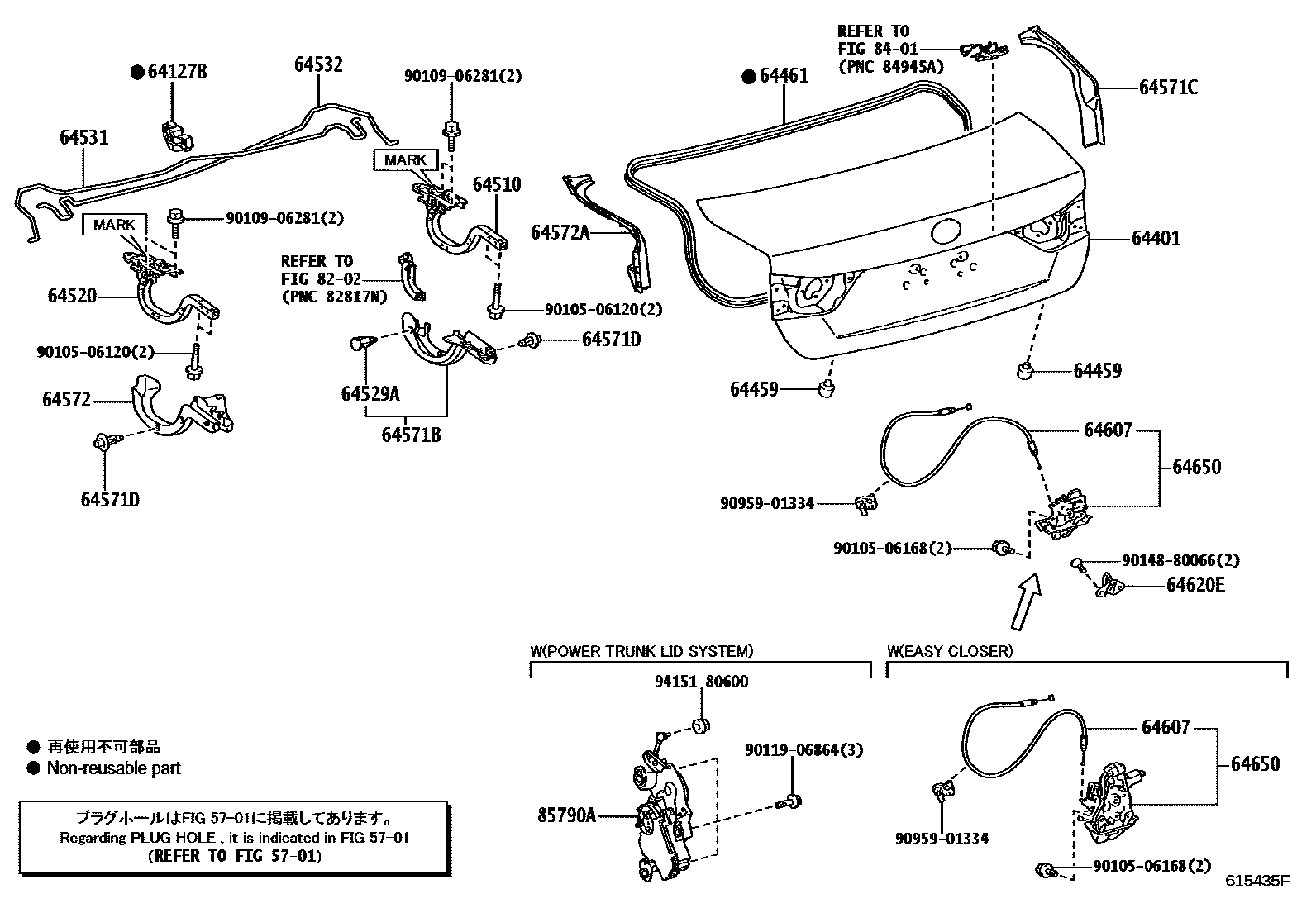

LUGGAGE COMPARTMENT DOOR & LOCK
5701
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
MARK = 0
MARK = +
MARK = -
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
AUTO & EASY CLOSER DOOR-WITH(LUGGAGE & PTL),MARK = 0
AUTO & EASY CLOSER DOOR-WITH(LUGGAGE & PTL),MARK = +
AUTO & EASY CLOSER DOOR-WITH(LUGGAGE & PTL),MARK = -
64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH
64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
AUTO & EASY CLOSER DOOR-WITH(LUGGAGE & PTL)
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64650CLOSER ASSY, LUGGAGE DOOR
AUTO & EASY CLOSER DOOR-WITH(LUGGAGE & PTL)
8202
8401
85790AMOTOR ASSY, LUGGAGE CLOSER
AUTO & EASY CLOSER DOOR-WITH(LUGGAGE & PTL)
9010506120
main90105-06120
9010506168
main90105-06168
9010906281
main90109-06281
9011906864
main90119-06864
9014880066
main90148-80066
9095901334
main90959-01334
9415180600
main94151-80600
28 parts on this diagram · 1 diagram in section
