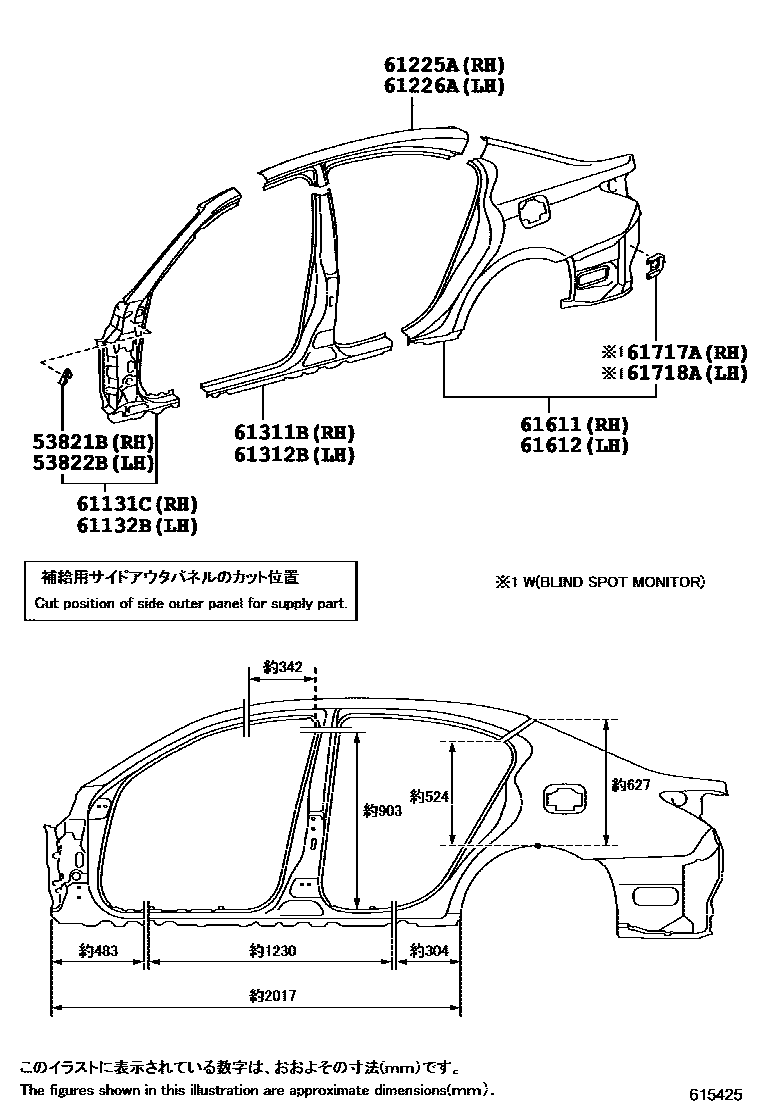

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-30140iURL10201510-202007

53822BBRACKET, FRONT FENDER, REAR LH

main53822-30150iURL10201510-202007

61131CPILLAR, FRONT BODY, OUTER RH

main61131-30321iURL10201510-202007

TYPE B:REFER ILLUST.

61132BPILLAR, FRONT BODY, OUTER LH

main61132-30341iURL10201510-202007

TYPE B:REFER ILLUST.

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-30060iURL10201510-202007

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-30060iURL10201510-202007

61311BPILLAR, CENTER BODY, OUTER RH

main61311-30290iURL10201510-202007

61312BPILLAR, CENTER BODY, OUTER LH

main61312-30390iURL10201510-202007

61611PANEL, QUARTER, RH

main61611-30A20iURL10..GCC201510-202007

main61611-30A60iURL10..ARL201510-202007

LANE CHANGE ASSIST-WITH

main61611-30A60iURL10..GCC201510-202007

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

main61611-30A60iURL10..GCC201709-202007

61612PANEL, QUARTER, LH

main61612-30A60iURL10..GCC201510-202007

main61612-30B00iURL10..ARL,GEN201510-202007

LANE CHANGE ASSIST-WITH

main61612-30B00iURL10..GCC201510-202007

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

main61612-30B00iURL10..GCC201709-202007

61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH

main61717-30060iURL10..GCC201510-202007

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

main61717-30060iURL10..ARL201510-202007

LANE CHANGE ASSIST-WITH

main61717-30060iURL10..GCC201709-202007

61718AREINFORCEMENT, QUARTER PANEL EXTENSION, LH

main61717-30060iURL10..GCC201510-202007

LANE CHANGE ASSIST-WITH(REAR CROSS TRAFFIC ALERT)

main61717-30060iURL10..ARL201510-202007

LANE CHANGE ASSIST-WITH

main61717-30060iURL10..GCC201709-202007

12 parts on this diagram · 3 diagrams in section
