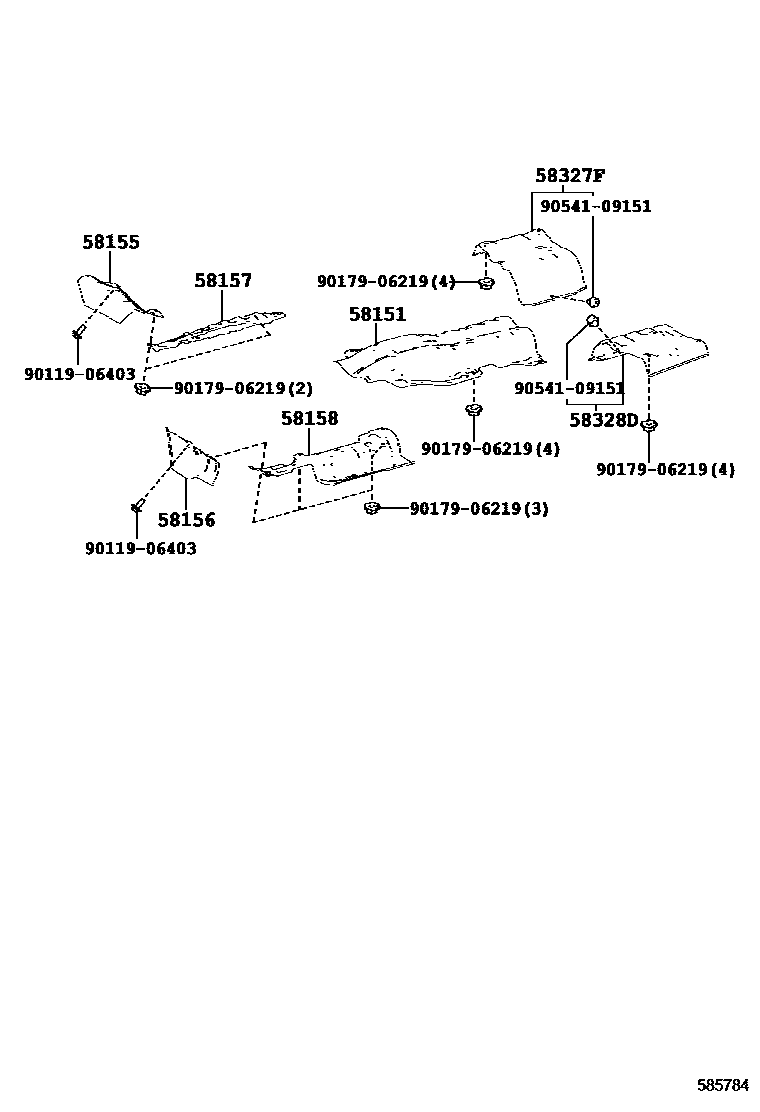

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30201iURL10201510-202007

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30050iURL10201510-202007

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30120iURL10201510-202007

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30073iURL10201510-202007

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30070iURL10201510-202007

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-30080iURL10201510-202007

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30090iURL10201510-202007

9011906403

main90119-06403

9017906219

main90179-06219

9054109151

main90541-09151

10 parts on this diagram · 1 diagram in section
