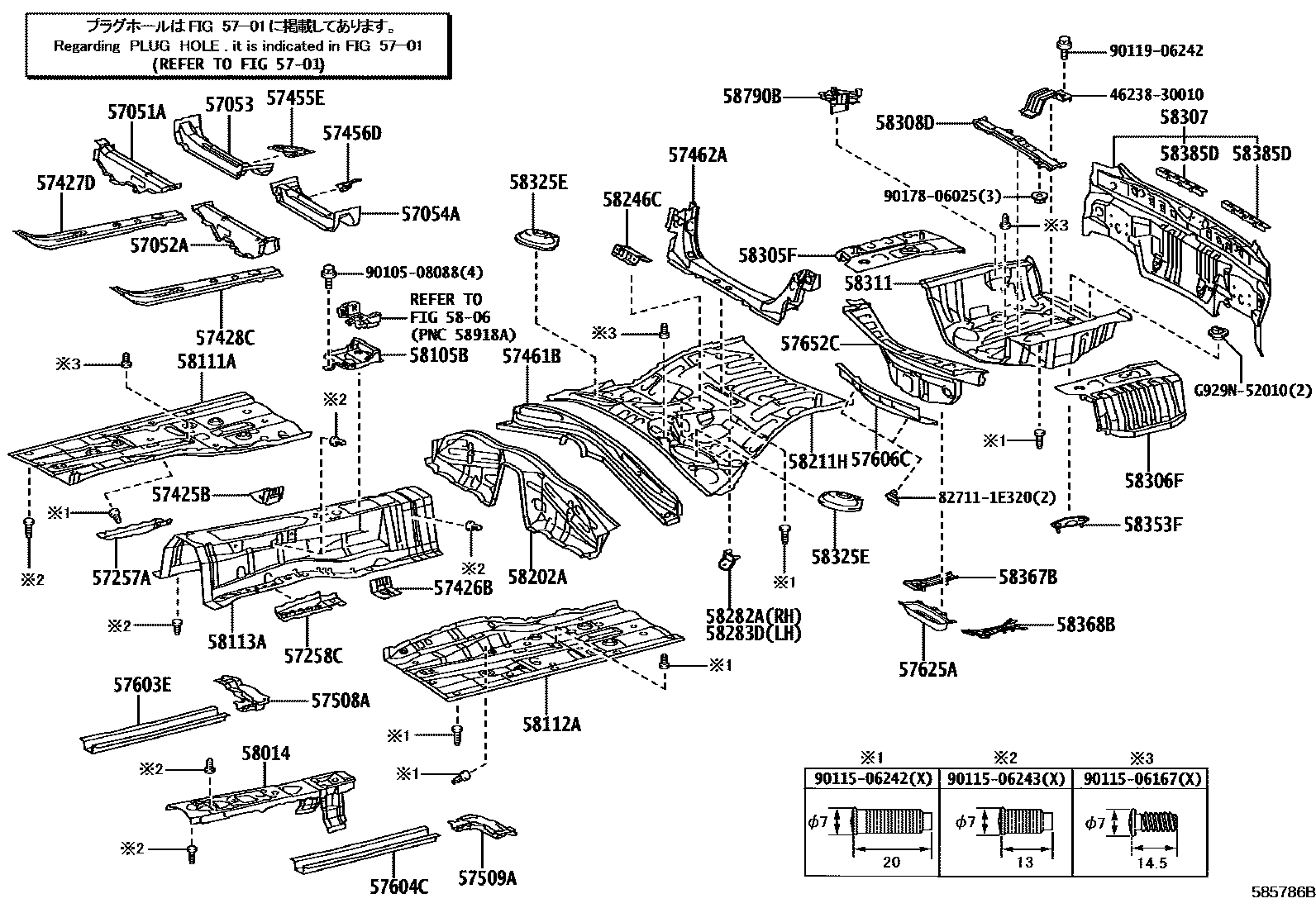

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR UNDER COVER

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-30100iURL10201510-202007

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-30100iURL10201510-202007

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30080iURL10201510-202007

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30080iURL10201510-202007

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-30042iURL10201510-202007

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-30091iURL10201510-202007

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-30030iURL10201510-202007

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-30030iURL10201510-202007

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-30041iURL10201510-202007

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-30041iURL10201510-202007

57455EPLATE, FRONT FLOOR CROSSMEMBER, NO.3 RH

main57455-30060iURL10201510-202007

57456DPLATE, FRONT FLOOR CROSSMEMBER, NO.3 LH

main57456-30040iURL10201510-202007

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-30121iURL10201510-202007

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-30080iURL10201801-201803

sub57405-30081

main57405-30081iURL10201804-202007

main57405-53020iURL10201510-201712

sub57405-30080

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-30031iURL10201510-202007

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-30031iURL10201510-202007

57603EEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH

main57603-30070iURL10201510-202007

57604CEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH

main57603-30070iURL10201510-202007

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57653-30150iURL10201510-201712

sub57653-30151

main57653-30151iURL10201801-202007

57625AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR OUTSIDE

main57625-24031iURL10201510-202007

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-30140iURL10201510-202007

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-30110iURL10201510-202007

5806

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-30050iURL10201510-202007

58111APAN, FRONT FLOOR, RH

main58111-30520iURL10201510-202007

58112APANEL, FRONT FLOOR, LH

main58112-30200iURL10201510-202007

58113APANEL, FRONT FLOOR, CENTER

main58113-30190iURL10201510-202007

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-53010iURL10201510-202007

58211HPAN, CENTER FLOOR

main58211-30400iURL10201510-201706

sub58211-30401

main58211-30401iURL10201707-202007

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-30020iURL10201510-202007

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-30040iURL10201510-202007

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-30030iURL10201510-202007

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-30230iURL10201510-202007

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-30220iURL10201510-202007

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30820iURL10201510-202007

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-30050iURL10201510-202007

58311PAN, REAR FLOOR

main58311-30420iURL10201510-202007

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30030iURL10201510-202007

58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3

main58353-30020iURL10201510-202007

58367BBRACKET, FUEL TUBE

main58367-30100iURL10201510-202007

58368BBRACKET, FUEL TUBE, NO.2

main58368-30061iURL10201510-202007

58385DBRACKET, REAR BUMPER COVER

main58385-30080iURL10201510-202007

58790BCARRIER ASSY, JACK

main58790-30030iURL10201510-202007

4623830010PROTECTOR, PLUNGER LOCK PIN

main46238-30010

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9010508088

main90105-08088

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

9011906242

main90119-06242

9017806025

main90178-06025

G929N52010PLUG, BATTERY DRAIN

mainG929N-52010

53 parts on this diagram · 2 diagrams in section
