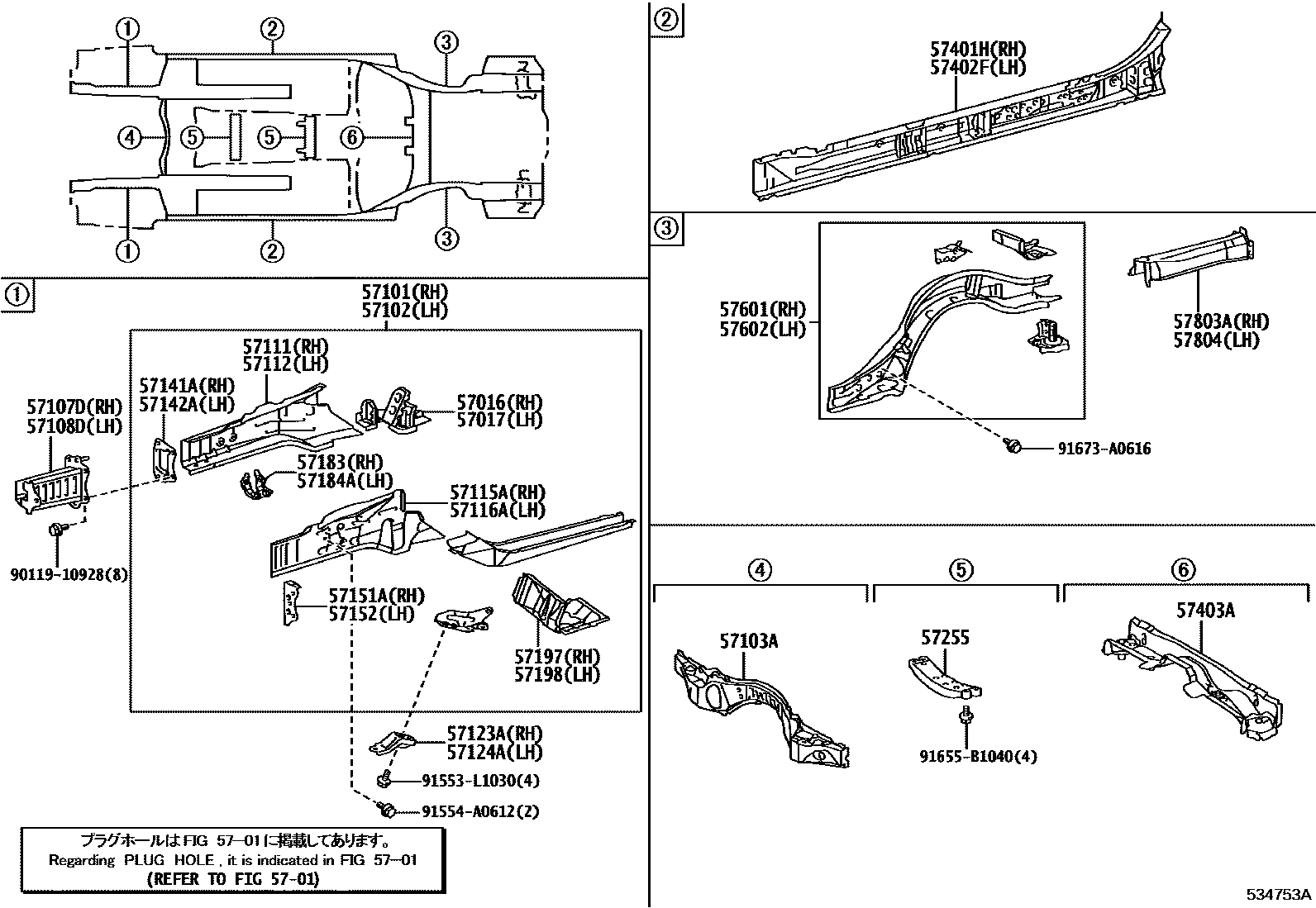

FLOOR SIDE MEMBER

0001 1 0002 1

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iURL10201510-202007

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iURL10201510-202007

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30190iURL10201510-201911

sub57101-53070

main57101-53070iURL10201911-202007

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30170iURL10201510-201911

sub57102-53030

main57102-53030iURL10201911-202007

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30022iURL10..ARL201510-202007

main57103-30031iURL10..GCC,GEN201510-202007

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-24030iURL10201510-202007

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-24030iURL10201510-201511

main57108-30160iURL10201512-202007

57111MEMBER, FRONT SIDE, RH

main57111-30082iURL10201510-202007

57112MEMBER, FRONT SIDE, LH

main57112-30082iURL10201510-202007

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060iURL10201510-202007

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030iURL10201510-202007

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30050iURL10201510-201710

sub57305-30051

main57305-30051iURL10201711-202007

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30070iURL10201510-201710

sub57306-30071

main57306-30071iURL10201711-202007

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iURL10201510-202007

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iURL10201510-202007

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iURL10201510-202007

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iURL10201510-202007

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30030iURL10201510-202007

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-30020iURL10201510-202007

57197BOX, TORQUE, FRONT RH

main57197-30050iURL10201510-202007

57198BOX, TORQUE, FRONT LH

main57198-30050iURL10201510-202007

57255MEMBER, ENGINE REAR MOUNTING

main57255-30080iURL10201510-202007

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-30120iURL10201510-202007

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-30110iURL10201510-202007

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57809-30020iURL10201510-201707

sub57809-30021

main57809-30021iURL10201708-202007

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30920iURL10201510-201802

sub57601-30925

main57601-30925iURL10201803-202007

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30932iURL10201510-201712

sub57602-30935

sub91673-A0616

main57602-30935iURL10201712-201802

sub57602-30939

main57602-30939iURL10201803-202007

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-30030iURL10201510-202007

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-30040iURL10201510-202007

9011910928

main90119-10928

91553L1030

main91553-L1030

91554A0612

main91554-A0612

91655B1040

main91655-B1040

91673A0616

main91673-A0616

35 parts on this diagram · 2 diagrams in section
