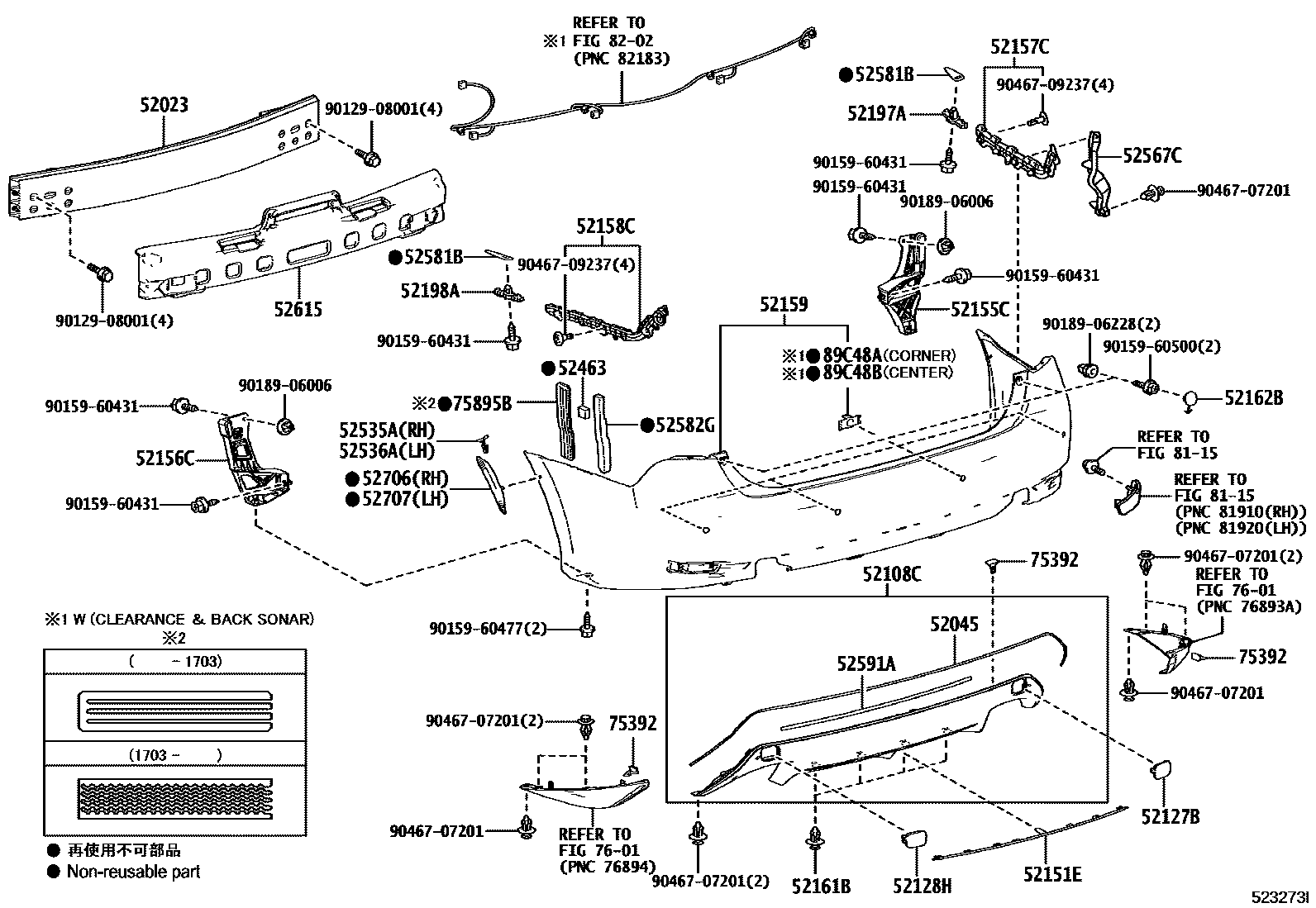

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52045PROTECTOR SUB-ASSY, REAR BUMPER, RH
52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER
52127BCOVER, REAR BUMPER HOLE, RH
52128HCOVER, REAR BUMPER HOLE, LH
52151EBAR, REAR BUMPER
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
CLEARANCE & BACK SONAR-WITH
52161BPIECE, REAR BUMPER
sub52161-0K040
52162BPLATE, REAR BUMPER, NO.1
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52463PAD, REAR BUMPER, LH
52535ARETAINER, REAR BUMPER SIDE, RH
52536ARETAINER, REAR BUMPER SIDE, LH
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
52581BPROTECTOR, REAR BUMPER
52582GPROTECTOR, REAR BUMPER, LH
52591ASEAL, REAR BUMPER
52615ABSORBER, REAR BUMPER ENERGY
52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
DK.GRAY MC.,1G0
MARCURY GRAY MC.MATT,1K7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
NAPLES YELLOW,5C1
HEAT BLUE CONTRAST LAYERI,8X1
52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
DK.GRAY MC.,1G0
MARCURY GRAY MC.MATT,1K7
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
LAVA ORANGE CS.,4W7
NAPLES YELLOW,5C1
HEAT BLUE CONTRAST LAYERI,8X1
75392RETAINER, OUTSIDE MOULDING
7601
8115
8202
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE & BACK SONAR-WITH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE & BACK SONAR-WITH
9012908001
main90129-08001
9015960431
main90159-60431
9015960477
main90159-60477
9015960500
main90159-60500
9018906006
main90189-06006
9018906228
main90189-06228
9046707201
main90467-07201
9046709237
main90467-09237
40 parts on this diagram · 1 diagram in section
