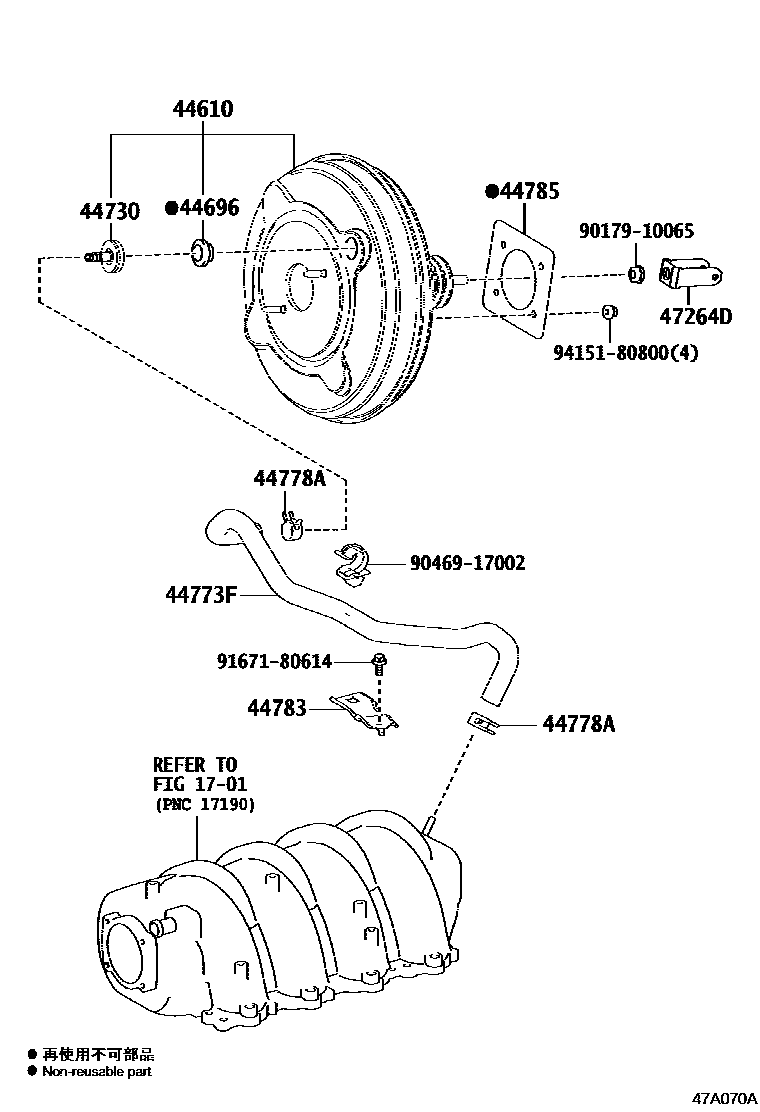

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-24140iURL10..ARL¥41,800201510-202007

main44610-24150iURL10..GCC,GEN201510-202007

44696GROMMET, CHECK VALVE

main90480-24015iURL10¥130201510-202007

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iURL10¥1,360201510-202007

44773FHOSE, UNION TO CHECK VALVE

main44773-24050iURL10..ARL¥1,550201510-202007

main44773-24070iURL10..GCC,GEN201510-202007

44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

main90467-16014iURL10¥230201510-202007

44783CLAMP, VACUUM HOSE

main44783-24010iURL10..ARL¥300201510-202007

main44783-30020iURL10..GCC,GEN201510-202007

44785GASKET, BRAKE BOOSTER

main44785-47010iURL10¥250201510-202007

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iURL10¥320201510-202007

9017910065

main90179-10065¥90

9046917002

main90469-17002¥180

9167180614

main91671-80614¥60

9415180800

main94151-80800¥80

13 parts on this diagram · 2 diagrams in section
