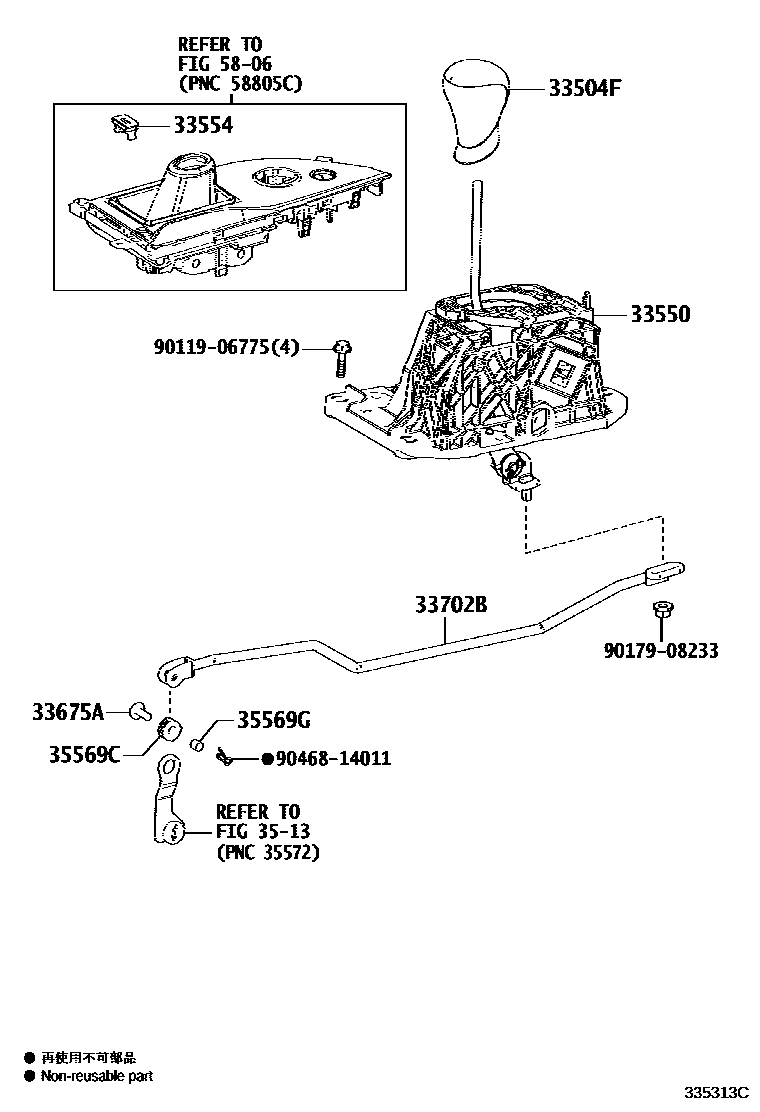

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24150-C3iURL10201805-202007

BLACK /BLACK /BLUE NO.121,TRIM0#,2#,3#

main33504-24150-C8iURL10..ARL,GEN201510-201805

BLACK/BLUE/BLACK/ECRU,TRIM0#,1#,2#,3#

main33504-24150-C8iURL10..GCC201510-201805

BLACK/BLUE/BLACK/ECRU,TRIM0#,2#,3#

main33504-24150-C9iURL10..GCC,GEN201510-201805

BLACK/ORANGE/BLACK/BLUE,TRIM4#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-30E80-C0iURL10..ARL201510-202007

BLACK,TRIM0#,1#,2#,3#,8#

main33550-30E90-C0iURL10..GCC201510-202007

BLACK,TRIM0#,1#,2#,3#,4#

main33550-30E90-C0iURL10..GCC201510-202007

BLACK,TRIM0#,2#,3#,4#

33554CAP, SHIFT LEVER

main33554-30090iURL10..GCC,GEN201510-202007

main33554-30120iURL10..ARL201510-202007

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020iURL10201510-202007

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-30610iURL10201510-202007

3513

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iURL10201510-202007

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iURL10201510-202007

5806

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

12 parts on this diagram · 2 diagrams in section
