E
EPC Data

MIRROR

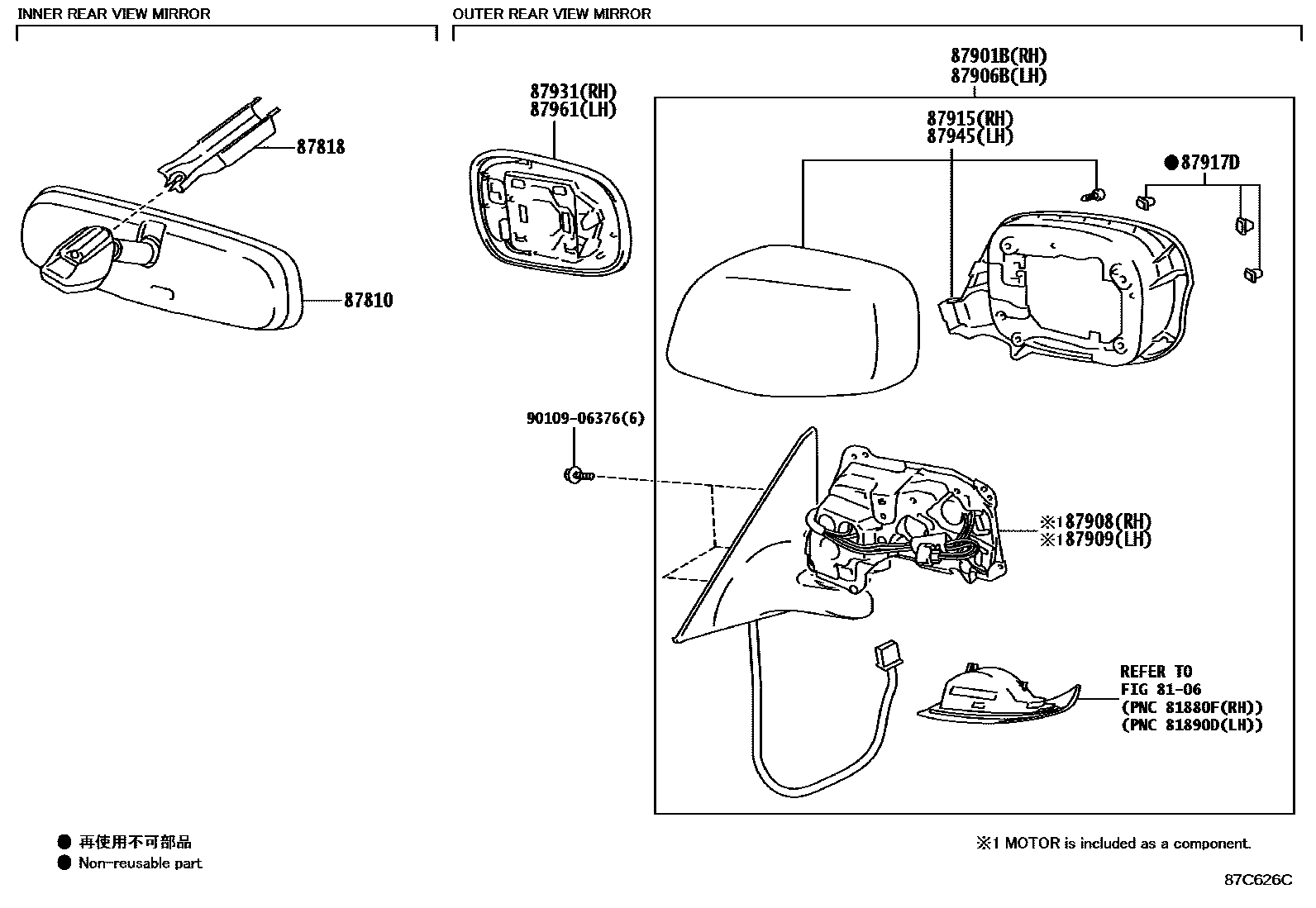

Parts diagram
8106
87810MIRROR ASSY, INNER REAR VIEW
main87810-30330i200602-200611
sub87810-30331
main87810-30331i200612-200908
sub87810-30332
main87810-30332i200909-201112
87818COVER, INNER RR VIEW MIRROR
main87818-30020i200602-200709
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87901-30210-A0i200709-200909
WHITE PEARL CS.,077
sub87901-30260
main87901-30210-B0i200709-200909
PREMIUM SILVER,1F2
sub87901-30260
main87901-30210-B1i200709-200909
DK.GRAY MC.,1G0
sub87901-30260
main87901-30210-B2i200709-200909
FROSTY PEARL MC.,1G5
sub87901-30260
main87901-30210-C0i200709-200909
BLACK,212
sub87901-30260
main87901-30210-C1i200709-200909
BLACK OPAL MC.,214
sub87901-30260
main87901-30210-D0i200709-200909
RED MC.CS.,3R1
sub87901-30260
main87901-30210-E0i200709-200909
BEIGE ME.,4T1
sub87901-30260
main87901-30210-G0i200709-200909
JADE GREEN ME.,6V0
sub87901-30260
main87901-30210-J0i200709-200909
PREMIUM LT.BLUE.,8T9
sub87901-30260
main87901-30210-J1i200709-200909
DK.BLUE MC. CC.,8U0
sub87901-30260
main87901-30220-A0i200709-200909
WHITE PEARL CS.,077
main87901-30220-B0i200709-200909
PREMIUM SILVER,1F2
main87901-30220-B1i200709-200909
DK.GRAY MC.,1G0
main87901-30220-B2i200709-200909
FROSTY PEARL MC.,1G5
main87901-30220-C0i200709-200909
BLACK,212
main87901-30220-C1i200709-200909
BLACK OPAL MC.,214
main87901-30220-D0i200709-200909
RED MC.CS.,3R1
main87901-30220-E0i200709-200909
BEIGE ME.,4T1
main87901-30220-G0i200709-200909
JADE GREEN ME.,6V0
main87901-30220-J0i200709-200909
PREMIUM LT.BLUE.,8T9
main87901-30220-J1i200709-200909
DK.BLUE MC. CC.,8U0
main87901-30240-A0i200602-200607
WHITE PEARL CS.,062
main87901-30240-A1i200602-200709
BLUISH PEARL CS.,074
main87901-30240-A2i200607-200709
WHITE PEARL CS.,077
main87901-30240-B0i200602-200607
DK.GRAY MC.,1E0
main87901-30240-B1i200602-200709
PREMIUM SILVER,1F2
main87901-30240-B2i200607-200709
DK.GRAY MC.,1G0
main87901-30240-C0i200602-200607
BLACK,202
main87901-30240-C1i200607-200709
BLACK,212
main87901-30240-D0i200602-200709
RED MC.CS.,3R1
main87901-30240-E0i200602-200709
PREMIUM BEIGE,4S7
main87901-30240-G0i200602-200607
OLIVE M.M.,6T7
main87901-30240-G1i200607-200709
JADE GREEN ME.,6V0
main87901-30240-J0i200602-200607
DARK BLUE MC.,8P8
main87901-30240-J1i200602-200709
PREMIUM LT.BLUE.,8T9
main87901-30240-J2i200607-200709
DK.BLUE MC. CC.,8U0
main87901-30240-K0i200602-200709
DK.PURPLE M.M.,9AB
main87901-30250-A0i200602-200607
WHITE PEARL CS.,062
main87901-30250-A1i200602-200709
BLUISH PEARL CS.,074
main87901-30250-A2i200607-200709
WHITE PEARL CS.,077
main87901-30250-B0i200602-200607
DK.GRAY MC.,1E0
main87901-30250-B1i200602-200709
PREMIUM SILVER,1F2
main87901-30250-B2i200607-200709
DK.GRAY MC.,1G0
main87901-30250-C0i200602-200607
BLACK,202
main87901-30250-C1i200607-200709
BLACK,212
main87901-30250-D0i200602-200709
RED MC.CS.,3R1
main87901-30250-E0i200602-200709
PREMIUM BEIGE,4S7
main87901-30250-G0i200602-200607
OLIVE M.M.,6T7
main87901-30250-G1i200607-200709
JADE GREEN ME.,6V0
main87901-30250-J0i200602-200607
DARK BLUE MC.,8P8
main87901-30250-J1i200602-200709
PREMIUM LT.BLUE.,8T9
main87901-30250-J2i200607-200709
DK.BLUE MC. CC.,8U0
main87901-30250-K0i200602-200709
DK.PURPLE M.M.,9AB
main87901-30280-A0i200909-201112
WHITE PEARL CS.,077
sub87901-30320
main87901-30280-B0i200909-201112
PREMIUM SILVER,1F2
sub87901-30320
main87901-30280-B1i200909-201112
DK.GRAY MC.,1G0
sub87901-30320
main87901-30280-B2i200909-201112
FROSTY PEARL MC.,1G5
sub87901-30320
main87901-30280-C0i200909-201112
BLACK,212
sub87901-30320
main87901-30280-C1i200909-201112
BLACK OPAL MC.,214
sub87901-30320
main87901-30280-C2i201007-201112
STARLIGHT BLACK GF.,217
sub87901-30320
main87901-30280-D0i200909-201112
RED MC.CS.,3R1
sub87901-30320
main87901-30280-E0i200909-201112
SLEEK ECRU ME.,4U7
sub87901-30320
main87901-30280-G0i200909-201112
DEEP PERIDOT MC.,6V6
sub87901-30320
main87901-30280-J0i200909-201007
PREMIUM LT.BLUE.,8T9
sub87901-30320
main87901-30280-J1i200909-201112
LAPIS LAZULI MC.,8V3
sub87901-30320
main87901-30290-A0i200909-201112
WHITE PEARL CS.,077
main87901-30290-B0i200909-201112
PREMIUM SILVER,1F2
main87901-30290-B1i200909-201112
DK.GRAY MC.,1G0
main87901-30290-B2i200909-201112
FROSTY PEARL MC.,1G5
main87901-30290-C0i200909-201112
BLACK,212
main87901-30290-C1i200909-201112
BLACK OPAL MC.,214
main87901-30290-C2i201007-201112
STARLIGHT BLACK GF.,217
main87901-30290-D0i200909-201112
RED MC.CS.,3R1
main87901-30290-E0i200909-201112
SLEEK ECRU ME.,4U7
main87901-30290-G0i200909-201112
DEEP PERIDOT MC.,6V6
main87901-30290-J0i200909-201007
PREMIUM LT.BLUE.,8T9
main87901-30290-J1i200909-201112
LAPIS LAZULI MC.,8V3
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87906-30270-A0i200709-200909
WHITE PEARL CS.,077
sub87906-30320
main87906-30270-B0i200709-200909
PREMIUM SILVER,1F2
sub87906-30320
main87906-30270-B1i200709-200909
DK.GRAY MC.,1G0
sub87906-30320
main87906-30270-B2i200709-200909
FROSTY PEARL MC.,1G5
sub87906-30320
main87906-30270-C0i200709-200909
BLACK,212
sub87906-30320
main87906-30270-C1i200709-200909
BLACK OPAL MC.,214
sub87906-30320
main87906-30270-D0i200709-200909
RED MC.CS.,3R1
sub87906-30320
main87906-30270-E0i200709-200909
BEIGE ME.,4T1
sub87906-30320
main87906-30270-G0i200709-200909
JADE GREEN ME.,6V0
sub87906-30320
main87906-30270-J0i200709-200909
PREMIUM LT.BLUE.,8T9
sub87906-30320
main87906-30270-J1i200709-200909
DK.BLUE MC. CC.,8U0
sub87906-30320
main87906-30280-A0i200709-200909
WHITE PEARL CS.,077
main87906-30280-B0i200709-200909
PREMIUM SILVER,1F2
main87906-30280-B1i200709-200909
DK.GRAY MC.,1G0
main87906-30280-B2i200709-200909
FROSTY PEARL MC.,1G5
main87906-30280-C0i200709-200909
BLACK,212
main87906-30280-C1i200709-200909
BLACK OPAL MC.,214
main87906-30280-D0i200709-200909
RED MC.CS.,3R1
main87906-30280-E0i200709-200909
BEIGE ME.,4T1
main87906-30280-G0i200709-200909
JADE GREEN ME.,6V0
main87906-30280-J0i200709-200909
PREMIUM LT.BLUE.,8T9
main87906-30280-J1i200709-200909
DK.BLUE MC. CC.,8U0
main87906-30300-A0i200602-200607
WHITE PEARL CS.,062
main87906-30300-A1i200602-200709
BLUISH PEARL CS.,074
main87906-30300-A2i200607-200709
WHITE PEARL CS.,077
main87906-30300-B0i200602-200607
DK.GRAY MC.,1E0
main87906-30300-B1i200602-200709
PREMIUM SILVER,1F2
main87906-30300-B2i200607-200709
DK.GRAY MC.,1G0
main87906-30300-C0i200602-200607
BLACK,202
main87906-30300-C1i200607-200709
BLACK,212
main87906-30300-D0i200602-200709
RED MC.CS.,3R1
main87906-30300-E0i200602-200709
PREMIUM BEIGE,4S7
main87906-30300-G0i200602-200607
OLIVE M.M.,6T7
main87906-30300-G1i200607-200709
JADE GREEN ME.,6V0
main87906-30300-J0i200602-200607
DARK BLUE MC.,8P8
main87906-30300-J1i200602-200709
PREMIUM LT.BLUE.,8T9
main87906-30300-J2i200607-200709
DK.BLUE MC. CC.,8U0
main87906-30300-K0i200602-200709
DK.PURPLE M.M.,9AB
main87906-30310-A0i200602-200607
WHITE PEARL CS.,062
main87906-30310-A1i200602-200709
BLUISH PEARL CS.,074
main87906-30310-A2i200607-200709
WHITE PEARL CS.,077
main87906-30310-B0i200602-200607
DK.GRAY MC.,1E0
main87906-30310-B1i200602-200709
PREMIUM SILVER,1F2
main87906-30310-B2i200607-200709
DK.GRAY MC.,1G0
main87906-30310-C0i200602-200607
BLACK,202
main87906-30310-C1i200607-200709
BLACK,212
main87906-30310-D0i200602-200709
RED MC.CS.,3R1
main87906-30310-E0i200602-200709
PREMIUM BEIGE,4S7
main87906-30310-G0i200602-200607
OLIVE M.M.,6T7
main87906-30310-G1i200607-200709
JADE GREEN ME.,6V0
main87906-30310-J0i200602-200607
DARK BLUE MC.,8P8
main87906-30310-J1i200602-200709
PREMIUM LT.BLUE.,8T9
main87906-30310-J2i200607-200709
DK.BLUE MC. CC.,8U0
main87906-30310-K0i200602-200709
DK.PURPLE M.M.,9AB
main87906-30340-A0i200909-201112
WHITE PEARL CS.,077
sub87906-30380
main87906-30340-B0i200909-201112
PREMIUM SILVER,1F2
sub87906-30380
main87906-30340-B1i200909-201112
DK.GRAY MC.,1G0
sub87906-30380
main87906-30340-B2i200909-201112
FROSTY PEARL MC.,1G5
sub87906-30380
main87906-30340-C0i200909-201112
BLACK,212
sub87906-30380
main87906-30340-C1i200909-201112
BLACK OPAL MC.,214
sub87906-30380
main87906-30340-C2i201007-201112
STARLIGHT BLACK GF.,217
sub87906-30380
main87906-30340-D0i200909-201112
RED MC.CS.,3R1
sub87906-30380
main87906-30340-E0i200909-201112
SLEEK ECRU ME.,4U7
sub87906-30380
main87906-30340-G0i200909-201112
DEEP PERIDOT MC.,6V6
sub87906-30380
main87906-30340-J0i200909-201007
PREMIUM LT.BLUE.,8T9
sub87906-30380
main87906-30340-J1i200909-201112
LAPIS LAZULI MC.,8V3
sub87906-30380
main87906-30350-A0i200909-201112
WHITE PEARL CS.,077
main87906-30350-B0i200909-201112
PREMIUM SILVER,1F2
main87906-30350-B1i200909-201112
DK.GRAY MC.,1G0
main87906-30350-B2i200909-201112
FROSTY PEARL MC.,1G5
main87906-30350-C0i200909-201112
BLACK,212
main87906-30350-C1i200909-201112
BLACK OPAL MC.,214
main87906-30350-C2i201007-201112
STARLIGHT BLACK GF.,217
main87906-30350-D0i200909-201112
RED MC.CS.,3R1
main87906-30350-E0i200909-201112
SLEEK ECRU ME.,4U7
main87906-30350-G0i200909-201112
DEEP PERIDOT MC.,6V6
main87906-30350-J0i200909-201007
PREMIUM LT.BLUE.,8T9
main87906-30350-J1i200909-201112
LAPIS LAZULI MC.,8V3
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-30A00-A0i200602-200607
WHITE PEARL CS.,062
main87908-30A00-A1i200602-200709
BLUISH PEARL CS.,074
main87908-30A00-A2i200607-200709
WHITE PEARL CS.,077
main87908-30A00-B0i200602-200607
DK.GRAY MC.,1E0
main87908-30A00-B1i200602-200709
PREMIUM SILVER,1F2
main87908-30A00-B2i200607-200709
DK.GRAY MC.,1G0
main87908-30A00-C0i200602-200607
BLACK,202
main87908-30A00-C1i200607-200709
BLACK,212
main87908-30A00-D0i200602-200709
RED MC.CS.,3R1
main87908-30A00-E0i200602-200709
PREMIUM BEIGE,4S7
main87908-30A00-G0i200602-200607
OLIVE M.M.,6T7
main87908-30A00-G1i200607-200709
JADE GREEN ME.,6V0
main87908-30A00-J0i200602-200607
DARK BLUE MC.,8P8
main87908-30A00-J1i200602-200709
PREMIUM LT.BLUE.,8T9
main87908-30A00-J2i200607-200709
DK.BLUE MC.CC.,8U0
main87908-30A00-K0i200602-200709
DK.PURPLE M.M.,9AB
main87908-30A20-A0i200602-200607
WHITE PEARL CS.,062
main87908-30A20-A1i200602-200709
BLUISH PEARL CS.,074
main87908-30A20-A2i200607-200709
WHITE PEARL CS.,077
main87908-30A20-B0i200602-200607
DK.GRAY MC.,1E0
main87908-30A20-B1i200602-200709
PREMIUM SILVER,1F2
main87908-30A20-B2i200607-200709
DK.GRAY MC.,1G0
main87908-30A20-C0i200602-200607
BLACK,202
main87908-30A20-C1i200607-200709
BLACK,212
main87908-30A20-D0i200602-200709
RED MC.CS.,3R1
main87908-30A20-E0i200602-200709
PREMIUM BEIGE,4S7
main87908-30A20-G0i200602-200607
OLIVE M.M.,6T7
main87908-30A20-G1i200607-200709
JADE GREEN ME.,6V0
main87908-30A20-J0i200602-200607
DARK BLUE MC.,8P8
main87908-30A20-J1i200602-200709
PREMIUM LT.BLUE.,8T9
main87908-30A20-J2i200607-200709
DK.BLUE MC.CC.,8U0
main87908-30A20-K0i200602-200709
DK.PURPLE M.M.,9AB
main87908-30A70-A0i200709-200909
WHITE PEARL CS.,077
sub87908-30B80
main87908-30A70-B0i200709-200909
PREMIUM SILVER,1F2
sub87908-30B80
main87908-30A70-B1i200709-200909
DK.GRAY MC.,1G0
sub87908-30B80
main87908-30A70-B2i200709-200909
FROSTY PEARL MC.,1G5
sub87908-30B80
main87908-30A70-C0i200709-200909
BLACK,212
sub87908-30B80
main87908-30A70-C1i200709-200909
BLACK OPAL MC.,214
sub87908-30B80
main87908-30A70-D0i200709-200909
RED MC.CS.,3R1
sub87908-30B80
main87908-30A70-E0i200709-200909
BEIGE ME.,4T1
sub87908-30B80
main87908-30A70-G0i200709-200909
JADE GREEN ME.,6V0
sub87908-30B80
main87908-30A70-J0i200709-200909
PREMIUM LT.BLUE.,8T9
sub87908-30B80
main87908-30A70-J1i200709-200909
DK.BLUE MC. CC.,8U0
sub87908-30B80
main87908-30A80-A0i200709-200909
WHITE PEARL CS.,077
sub87908-30B90
main87908-30A80-B0i200709-200909
PREMIUM SILVER,1F2
sub87908-30B90
main87908-30A80-B1i200709-200909
DK.GRAY MC.,1G0
sub87908-30B90
main87908-30A80-B2i200709-200909
FROSTY PEARL MC.,1G5
sub87908-30B90
main87908-30A80-C0i200709-200909
BLACK,212
sub87908-30B90
main87908-30A80-C1i200709-200909
BLACK OPAL MC.,214
sub87908-30B90
main87908-30A80-D0i200709-200909
RED MC.CS.,3R1
sub87908-30B90
main87908-30A80-J0i200709-200909
PREMIUM LT.BLUE.,8T9
sub87908-30B90
main87908-30B80-A0i200909-201112
WHITE PEARL CS.,077
main87908-30B80-B0i200909-201112
PREMIUM SILVER,1F2
main87908-30B80-B1i200909-201112
DK.GRAY MC.,1G0
main87908-30B80-B2i200909-201112
FROSTY PEARL MC.,1G5
main87908-30B80-C0i200909-201112
BLACK,212
main87908-30B80-C1i200909-201112
BLACK OPAL MC.,214
main87908-30B80-C2i201007-201112
STARLIGHT BLACK GF.,217
main87908-30B80-D0i200909-201112
RED MC.CS.,3R1
main87908-30B80-E0i200909-201112
SLEEK ECRU ME.,4U7
main87908-30B80-G0i200909-201112
DEEP PERIDOT MC.,6V6
main87908-30B80-J0i200909-201007
PREMIUM LT.BLUE.,8T9
main87908-30B80-J1i200909-201112
LAPIS LAZULI MC.,8V3
main87908-30B90-A0i200909-201112
WHITE PEARL CS.,077
main87908-30B90-B0i200909-201112
PREMIUM SILVER,1F2
main87908-30B90-B1i200909-201112
DK.GRAY MC.,1G0
main87908-30B90-B2i200909-201112
FROSTY PEARL MC.,1G5
main87908-30B90-C0i200909-201112
BLACK,212
main87908-30B90-C1i200909-201112
BLACK OPAL MC.,214
main87908-30B90-C2i201007-201112
STARLIGHT BLACK GF.,217
main87908-30B90-D0i200909-201112
RED MC.CS.,3R1
main87908-30B90-E0i200909-201112
SLEEK ECRU ME.,4U7
main87908-30B90-G0i200909-201112
DEEP PERIDOT MC.,6V6
main87908-30B90-J0i200909-201007
PREMIUM LT.BLUE.,8T9
main87908-30B90-J1i200909-201112
LAPIS LAZULI MC.,8V3
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87909-30A30-A0i200602-200607
WHITE PEARL CS.,062
main87909-30A30-A1i200602-200709
BLUISH PEARL CS.,074
main87909-30A30-A2i200607-200709
WHITE PEARL CS.,077
main87909-30A30-B0i200602-200607
DK.GRAY MC.,1E0
main87909-30A30-B1i200602-200709
PREMIUM SILVER,1F2
main87909-30A30-B2i200607-200709
DK.GRAY MC.,1G0
main87909-30A30-C0i200602-200607
BLACK,202
main87909-30A30-C1i200607-200709
BLACK,212
main87909-30A30-D0i200602-200709
RED MC.CS.,3R1
main87909-30A30-E0i200602-200709
PREMIUM BEIGE,4S7
main87909-30A30-G0i200602-200607
OLIVE M.M.,6T7
main87909-30A30-G1i200607-200709
JADE GREEN ME.,6V0
main87909-30A30-J0i200602-200607
DARK BLUE MC.,8P8
main87909-30A30-J1i200602-200709
PREMIUM LT.BLUE.,8T9
main87909-30A30-J2i200607-200709
DK.BLUE MC.CC.,8U0
main87909-30A30-K0i200602-200709
DK.PURPLE M.M.,9AB
main87909-30A50-A0i200602-200607
WHITE PEARL CS.,062
main87909-30A50-A1i200602-200709
BLUISH PEARL CS.,074
main87909-30A50-A2i200607-200709
WHITE PEARL CS.,077
main87909-30A50-B0i200602-200607
DK.GRAY MC.,1E0
main87909-30A50-B1i200602-200709
PREMIUM SILVER,1F2
main87909-30A50-B2i200607-200709
DK.GRAY MC.,1G0
main87909-30A50-C0i200602-200607
BLACK,202
main87909-30A50-C1i200607-200709
BLACK,212
main87909-30A50-D0i200602-200709
RED MC.CS.,3R1
main87909-30A50-E0i200602-200709
PREMIUM BEIGE,4S7
main87909-30A50-G0i200602-200607
OLIVE M.M.,6T7
main87909-30A50-G1i200607-200709
JADE GREEN ME.,6V0
main87909-30A50-J0i200602-200607
DARK BLUE MC.,8P8
main87909-30A50-J1i200602-200709
PREMIUM LT.BLUE.,8T9
main87909-30A50-J2i200607-200709
DK.BLUE MC.CC.,8U0
main87909-30A50-K0i200602-200709
DK.PURPLE M.M.,9AB
main87909-30B20-A0i200709-200909
WHITE PEARL CS.,077
sub87909-30C50
main87909-30B20-B0i200709-200909
PREMIUM SILVER,1F2
sub87909-30C50
main87909-30B20-B1i200709-200909
DK.GRAY MC.,1G0
sub87909-30C50
main87909-30B20-B2i200709-200909
FROSTY PEARL MC.,1G5
sub87909-30C50
main87909-30B20-C0i200709-200909
BLACK,212
sub87909-30C50
main87909-30B20-C1i200709-200909
BLACK OPAL MC.,214
sub87909-30C50
main87909-30B20-D0i200709-200909
RED MC.CS.,3R1
sub87909-30C50
main87909-30B20-E0i200709-200909
BEIGE ME.,4T1
sub87909-30C50
main87909-30B20-G0i200709-200909
JADE GREEN ME.,6V0
sub87909-30C50
main87909-30B20-J0i200709-200909
PREMIUM LT.BLUE.,8T9
sub87909-30C50
main87909-30B20-J1i200709-200909
DK.BLUE MC. CC.,8U0
sub87909-30C50
main87909-30B30-A0i200709-200909
WHITE PEARL CS.,077
sub87909-30C60
main87909-30B30-B0i200709-200909
PREMIUM SILVER,1F2
sub87909-30C60
main87909-30B30-B1i200709-200909
DK.GRAY MC.,1G0
sub87909-30C60
main87909-30B30-B2i200709-200909
FROSTY PEARL MC.,1G5
sub87909-30C60
main87909-30B30-C0i200709-200909
BLACK,212
sub87909-30C60
main87909-30B30-C1i200709-200909
BLACK OPAL MC.,214
sub87909-30C60
main87909-30B30-D0i200709-200909
RED MC.CS.,3R1
sub87909-30C60
main87909-30B30-J0i200709-200909
PREMIUM LT.BLUE.,8T9
sub87909-30C60
main87909-30C50-A0i200909-201112
WHITE PEARL CS.,077
main87909-30C50-B0i200909-201112
PREMIUM SILVER,1F2
main87909-30C50-B1i200909-201112
DK.GRAY MC.,1G0
main87909-30C50-B2i200909-201112
FROSTY PEARL MC.,1G5
main87909-30C50-C0i200909-201112
BLACK,212
main87909-30C50-C1i200909-201112
BLACK OPAL MC.,214
main87909-30C50-C2i201007-201112
STARLIGHT BLACK GF.,217
main87909-30C50-D0i200909-201112
RED MC.CS.,3R1
main87909-30C50-E0i200909-201112
SLEEK ECRU ME.,4U7
main87909-30C50-G0i200909-201112
DEEP PERIDOT MC.,6V6
main87909-30C50-J0i200909-201007
PREMIUM LT.BLUE.,8T9
main87909-30C50-J1i200909-201112
LAPIS LAZULI MC.,8V3
main87909-30C60-A0i200909-201112
WHITE PEARL CS.,077
main87909-30C60-B0i200909-201112
PREMIUM SILVER,1F2
main87909-30C60-B1i200909-201112
DK.GRAY MC.,1G0
main87909-30C60-B2i200909-201112
FROSTY PEARL MC.,1G5
main87909-30C60-C0i200909-201112
BLACK,212
main87909-30C60-C1i200909-201112
BLACK OPAL MC.,214
main87909-30C60-C2i201007-201112
STARLIGHT BLACK GF.,217
main87909-30C60-D0i200909-201112
RED MC.CS.,3R1
main87909-30C60-E0i200909-201112
SLEEK ECRU ME.,4U7
main87909-30C60-G0i200909-201112
DEEP PERIDOT MC.,6V6
main87909-30C60-J0i200909-201007
PREMIUM LT.BLUE.,8T9
main87909-30C60-J1i200909-201112
LAPIS LAZULI MC.,8V3
87915COVER, OUTER MIRROR, RH
main87915-50020-A0i200602-200607
WHITE PEARL CS.,062
sub87915-50010
main87915-50020-A3i200602-200709
BLUISH PEARL CS.,074
sub87915-50010
main87915-50020-A4i200607-200709
WHITE PEARL CS.,077
sub87915-50010
main87915-50020-B1i200602-200607
DK.GRAY MC.,1E0
sub87915-50010
main87915-50020-B2i200602-200709
PREMIUM SILVER,1F2
sub87915-50010
main87915-50020-B3i200607-200709
DK.GRAY MC.,1G0
sub87915-50010
main87915-50020-C0i200602-200607
BLACK,202
sub87915-50010
main87915-50020-C1i200607-200709
BLACK,212
sub87915-50010
main87915-50020-D2i200602-200709
RED MC.CS.,3R1
sub87915-50010
main87915-50020-E2i200602-200709
PREMIUM BEIGE,4S7
sub87915-50010
main87915-50020-G2i200602-200607
OLIVE M.M.,6T7
sub87915-50010
main87915-50020-G3i200607-200709
JADE GREEN ME.,6V0
sub87915-50010
main87915-50020-J0i200602-200607
DARK BLUE MC.,8P8
sub87915-50010
main87915-50020-J2i200602-200709
PREMIUM LT.BLUE.,8T9
sub87915-50010
main87915-50020-J3i200607-200709
DK.BLUE MC. CC.,8U0
sub87915-50010
main87915-50020-K0i200602-200709
DK.PURPLE M.M.,9AB
sub87915-50010
main87915-50030-A0i200602-200607
WHITE PEARL CS.,062
main87915-50030-A3i200602-200709
BLUISH PEARL CS.,074
main87915-50030-A4i200607-200709
WHITE PEARL CS.,077
main87915-50030-B1i200602-200607
DK.GRAY MC.,1E0
main87915-50030-B2i200602-200709
PREMIUM SILVER,1F2
main87915-50030-B3i200607-200709
DK.GRAY MC.,1G0
main87915-50030-C0i200602-200607
BLACK,202
main87915-50030-C1i200607-200709
BLACK,212
main87915-50030-D2i200602-200709
RED MC.CS.,3R1
main87915-50030-E2i200602-200709
PREMIUM BEIGE,4S7
main87915-50030-G2i200602-200607
OLIVE M.M.,6T7
main87915-50030-G3i200607-200709
JADE GREEN ME.,6V0
main87915-50030-J0i200602-200607
DARK BLUE MC.,8P8
main87915-50030-J2i200602-200709
PREMIUM LT.BLUE.,8T9
main87915-50030-J3i200607-200709
DK.BLUE MC. CC.,8U0
main87915-50030-K0i200602-200709
DK.PURPLE M.M.,9AB
87917DCLIP, OUTER MIRROR
main87917-3A060i200602-201112
87931OUTER MIRROR, RH
main87931-30A80i200709-201112
main87931-30A90i200709-201112
main87931-50470i200602-200709
main87931-50480i200602-200709
87945COVER, OUTER MIRROR, LH
main87945-50020-A0i200602-200607
WHITE PEARL CS.,062
sub87945-50010
main87945-50020-A3i200602-200709
BLUISH PEARL CS.,074
sub87945-50010
main87945-50020-A4i200607-200709
WHITE PEARL CS.,077
sub87945-50010
main87945-50020-B1i200602-200607
DK.GRAY MC.,1E0
sub87945-50010
main87945-50020-B2i200602-200709
PREMIUM SILVER,1F2
sub87945-50010
main87945-50020-B3i200607-200709
DK.GRAY MC.,1G0
sub87945-50010
main87945-50020-C0i200602-200607
BLACK,202
sub87945-50010
main87945-50020-C1i200607-200709
BLACK,212
sub87945-50010
main87945-50020-D2i200602-200709
RED MC.CS.,3R1
sub87945-50010
main87945-50020-E2i200602-200709
PREMIUM BEIGE,4S7
sub87945-50010
main87945-50020-G2i200602-200607
OLIVE M.M.,6T7
sub87945-50010
main87945-50020-G3i200607-200709
JADE GREEN ME.,6V0
sub87945-50010
main87945-50020-J0i200602-200607
DARK BLUE MC.,8P8
sub87945-50010
main87945-50020-J2i200602-200709
PREMIUM LT.BLUE.,8T9
sub87945-50010
main87945-50020-J3i200607-200709
DK.BLUE MC. CC.,8U0
sub87945-50010
main87945-50020-K0i200602-200709
DK.PURPLE M.M.,9AB
sub87945-50010
main87945-50030-A0i200602-200607
WHITE PEARL CS.,062
main87945-50030-A3i200602-200709
BLUISH PEARL CS.,074
main87945-50030-A4i200607-200709
WHITE PEARL CS.,077
main87945-50030-B1i200602-200607
DK.GRAY MC.,1E0
main87945-50030-B2i200602-200709
PREMIUM SILVER,1F2
main87945-50030-B3i200607-200709
DK.GRAY MC.,1G0
main87945-50030-C0i200602-200607
BLACK,202
main87945-50030-C1i200607-200709
BLACK,212
main87945-50030-D2i200602-200709
RED MC.CS.,3R1
main87945-50030-E2i200602-200709
PREMIUM BEIGE,4S7
main87945-50030-G2i200602-200607
OLIVE M.M.,6T7
main87945-50030-G3i200607-200709
JADE GREEN ME.,6V0
main87945-50030-J0i200602-200607
DARK BLUE MC.,8P8
main87945-50030-J2i200602-200709
PREMIUM LT.BLUE.,8T9
main87945-50030-J3i200607-200709
DK.BLUE MC. CC.,8U0
main87945-50030-K0i200602-200709
DK.PURPLE M.M.,9AB
87961MIRROR OUTER, LH
main87961-30B30i200709-201112
main87961-30B40i200709-201112
main87961-50440i200602-200709
main87961-50450i200602-200709
9010906376
main90109-06376

13 parts on this diagram · 2 diagrams in section

MIRROR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
