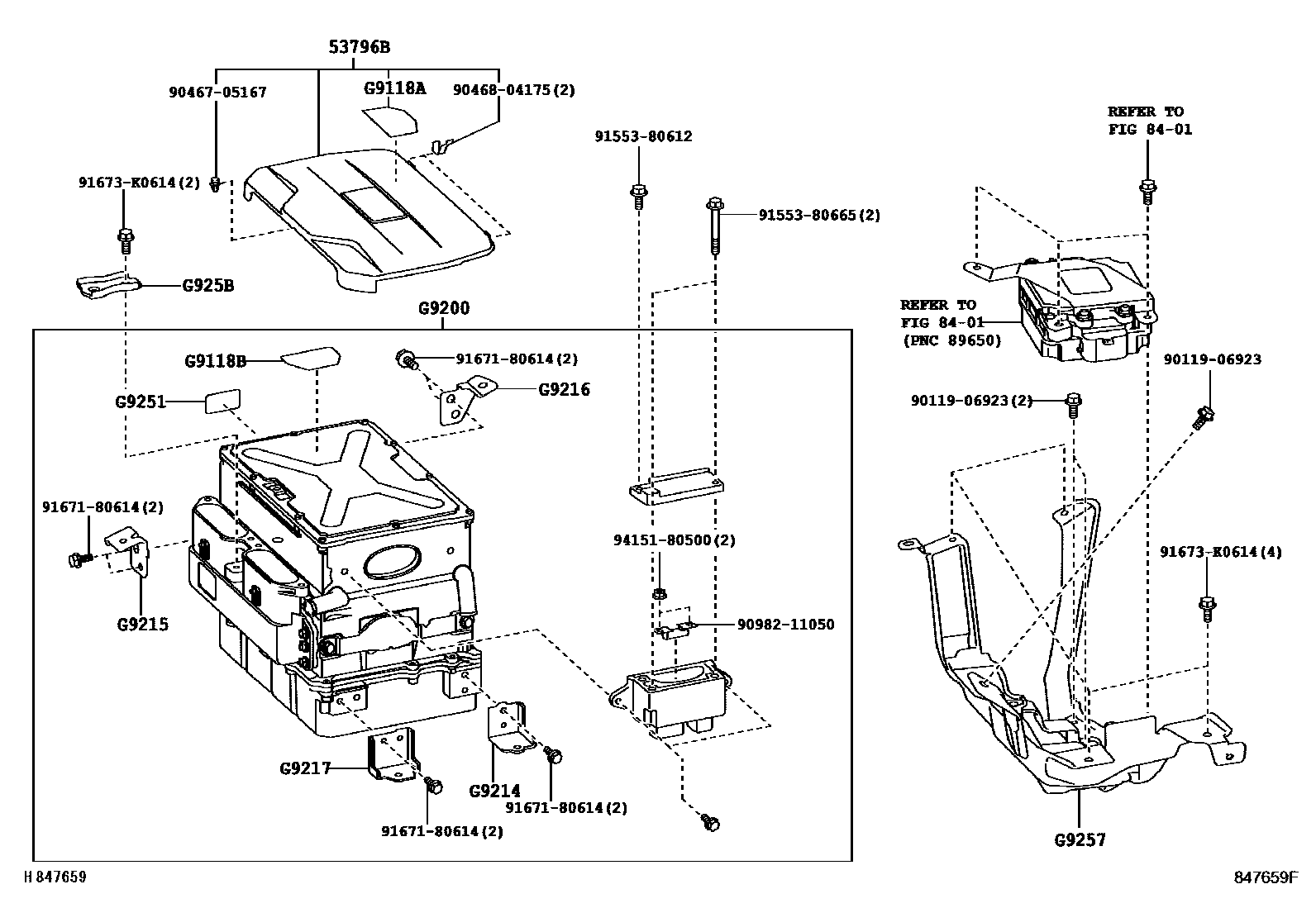

HEV INVERTER

0001 1 0002 1

53796BCOVER, ENGINE ROOM SIDE, LH NO.2

main51470-30010iGWS191200602-200907

sub51470-30011

main51470-30011iGWS191200908

8401

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911830030iGWS191200602-201112

G9118BLABEL, POWER CONTROL UNIT CAUTION

mainG911830020iGWS191200602-200709

G9200INVERTER ASSY, W/CONVERTER

mainG920030030iGWS191..RHD200602-200709

subG9200-30051

mainG920030040iGWS191..LHD200602-200709

subG9200-30061

mainG920030051iGWS191..RHD200709-201112

subG9200-30170

mainG920030061iGWS191..LHD200709-201112

subG9200-30180

G9214BRACKET, INVERTER, NO.1

mainG921430010iGWS191..RHD200602-201112

mainG921430020iGWS191..LHD200602-201112

G9215BRACKET, INVERTER, NO.2

mainG921530010iGWS191..RHD200602-201112

mainG921530020iGWS191..LHD200602-201112

G9216BRACKET, INVERTER, NO.3

mainG921630010iGWS191..RHD200602-201112

mainG921630020iGWS191..LHD200602-201112

G9217BRACKET, INVERTER, NO.4

mainG921730010iGWS191..RHD200602-201112

mainG921730020iGWS191..LHD200602-201112

G9251SEAT, INVERTER NAME

mainG925147010iGWS191200602-200709

G9257BRACKET, INVERTER, NO.5

mainG925730010iGWS191..RHD200602-200709

mainG925730020iGWS191..LHD200602-200709

G925BBRACKET, INVERTER, NO.6

mainG925B30010iGWS191..RHD200602-200709

mainG925B30020iGWS191..LHD200602-200709

9011906923

main90119-06923

9046705167

main90467-05167

9046804175

main90468-04175

9098211050

main90982-11050

9155380612

main91553-80612

9155380665

main91553-80665

9167180614

main91671-80614

91673K0614

main91673-K0614

9415180500

main94151-80500

21 parts on this diagram · 2 diagrams in section
