AIR BAG

7101

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iGWS191200602-200709

89170SENSOR ASSY, AIRBAG

main89170-30540supersedes 89170-30830iGWS191..RHD200602-200709

SRS AIR BAG-WITH(REAR SIDE)

main89170-30550supersedes 89170-30850iGWS191..LHD200602-200709

SRS AIR BAG-WITH(REAR SIDE)

main89170-30560supersedes 89170-30830iGWS191..RHD200602-200709

AUSTRALIA SPEC&SRS AIR BAG-WITH(REAR SIDE)

main89170-30600supersedes 89170-30830iGWS191..RHD200602-200709

NEW ZEALAND SPEC

main89170-30820supersedes 89170-30830iGWS191..RHD200709

SRS AIR BAG-WITH(REAR SIDE)

main89170-30840supersedes 89170-30850iGWS191..LHD200709

SRS AIR BAG-WITH(REAR SIDE)

main89170-30860iGWS191..RHD200809

SOUTH AFRICA SPEC&SRS AIR BAG-WITH(REAR SIDE)

main89170-30870supersedes 89170-30830iGWS191..RHD200809

HONG KONG SPEC

main89170-30880supersedes 89170-30850iGWS191..LHD200709

TAIWAN SPEC&SRS AIR BAG-WITH(REAR SIDE)

main89170-30890supersedes 89170-30850iGWS191..LHD200809

CHINA SPEC

89173ASENSOR, AIRBAG, FRONT RH

main89173-49325iGWS191200709

89174ASENSOR, AIRBAG, FRONT LH

main89173-49325iGWS191200709

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33031iGWS191200602-200709

main89178-33050iGWS191..LHD200806-201112

89833SENSOR, AIRBAG, REAR RH

main89833-30020iGWS191200602-200709

89834SENSOR, AIRBAG, REAR LH

main89834-30020iGWS191200709

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-30130iGWS191200602-200709

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-30130iGWS191200602-200709

9011908C48

main90119-08C48

9155380810

main91553-80810

91553A0622

main91553-A0622

9415180800

main94151-80800

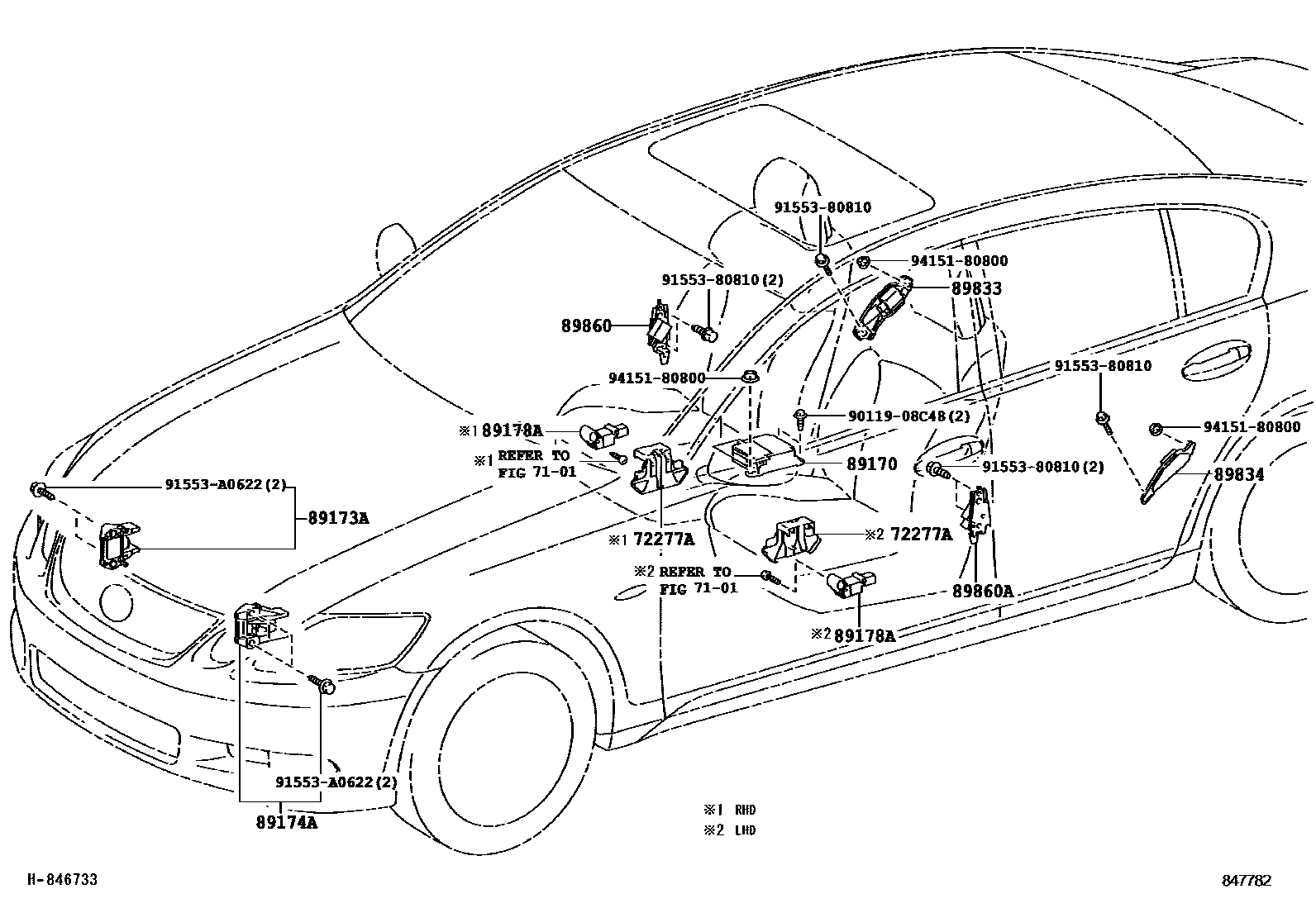

14 parts on this diagram · 1 diagram in section
