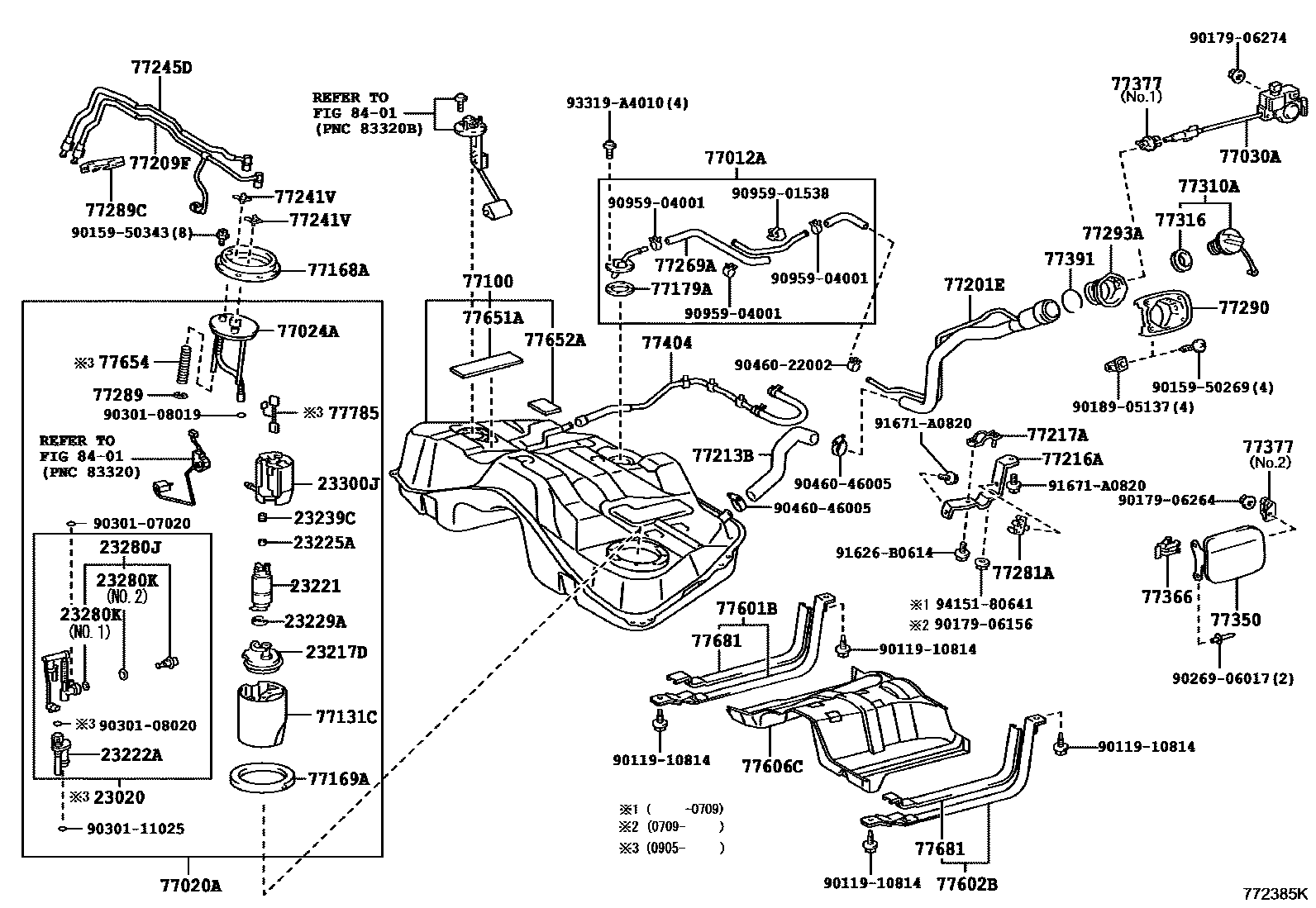

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

23020REGULATOR ASSY, FUEL PRESSURE W/JET PUMP

main23020-31020i2GRFSE..GWS191200905

23217DFILTER, FUEL PUMP

main23217-31100i2GRFSE..GWS191200602-200709

23221PUMP, FUEL

main23221-31090i2GRFSE..GWS191200602-200911

sub23221-31340

main23221-31340i2GRFSE..GWS191200911

sub23220-31340

23222ATUBE, FUEL RETURN JET

main23222-31020i2GRFSE..GWS191200602-200709

23225ASPACER, FUEL PUMP

main23225-21010i2GRFSE..GWS191200602-201112

23229ACLIP(FOR FUEL PUMP FILTER)

main23229-16010i2GRFSE..GWS191200602-200709

23239CSEAL, FUEL PUMP FILTER

main23239-21010i2GRFSE..GWS191200602-200709

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-31020i2GRFSE..GWS191200602-200709

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2GRFSE..GWS191200602-200709

NO.1

main90301-15024i2GRFSE..GWS191200602-200709

NO.2

23300JFILTER ASSY, FUEL

main23300-31140i2GRFSE..GWS191200602-200709

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-53040iGWS191200602-200709

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-30220iGWS191200602-200711

sub77020-30221

main77020-30221iGWS191200712-200904

sub77020-30222

main77020-30222iGWS191200905-200910

sub77020-30351

main77020-30351iGWS191200911

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-22030iGWS191200602-200709

sub77024-22031

77030ALOCK ASSY, FUEL LID W/MOTOR

main77030-30160iGWS191200602-200709

77100TANK ASSY, FUEL

main77001-30580iGWS191200602-200709

sub77001-30600

main77001-30600iGWS191200709-200809

sub77001-30601

main77001-30601iGWS191200810

77131CSUB-TANK, FUEL, NO.1

main77131-22051iGWS191200602-200711

sub77131-22052

main77131-30080iGWS191200712

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iGWS191200602-200709

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iGWS191200602-200709

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iGWS191200602-200709

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-30460iGWS191200602-200709

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30170iGWS191200602-200709

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22100iGWS191200602-200709

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30050iGWS191200602-200709

sub77216-30051

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30130iGWS191200602-200709

sub77217-30131

77241VCLIP, TUBE JOINT

main77241-33011iGWS191201002

main77241-60320iGWS191200602-201001

77245DTUBE, FUEL TANK RETURN VENT

main77245-30200iGWS191200602-200709

77269AHOSE, FUEL TANK BREATHER

main77269-22010iGWS191200602-200709

77281ACLAMP, FUEL FILLER PIPE

main77281-50020iGWS191200602-200709

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGWS191200905

77289CCLAMP, FUEL TUBE, NO.4

main77289-30100iGWS191200602-200709

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-30110iGWS191200602-200709

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-30070iGWS191200602-200709

77310ACAP ASSY, FUEL TANK

main77300-52030iGWS191200602-200709

77316GASKET, FUEL TANK CAP

main77316-52020iGWS191200602-200709

sub77316-52040

main77316-52040iGWS191200709-201112

77350LID ASSY, FUEL FILLER OPENING

main77350-30380iGWS191200602-200709

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iGWS191200602-200709

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iGWS191200602-200709

NO.1

main77377-30050iGWS191200602-200709

NO.2

77391RING, FUEL INLET BOX

main77391-12020iGWS191200602-200709

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-30060iGWS191200602-200709

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-53020iGWS191200602-200709

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77601-22110iGWS191200602-200709

77606CPROTECTOR, FUEL TANK, NO.2

main77606-53030iGWS191200602-200709

sub77606-53031

77651ACUSHION, FUEL TANK, NO.1

main77651-53010iGWS191200602-200709

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iGWS191200602-200709

77654CUSHION, FUEL TANK, NO.2

main77652-22090iGWS191200905

77681SEAT, FUEL TANK BAND, RH

main77681-22020iGWS191200602-200709

77785HARNESS, FUEL PUMP

main77785-30040iGWS191200905-201112

sub77785-30041

8401

9011910814

main90119-10814

9015950269

main90159-50269

9015950343

main90159-50343

9017906156

main90179-06156

9017906264

main90179-06264

9017906274

main90179-06274

9018905137

main90189-05137

9026906017

main90269-06017

9030107020

main90301-07020

9030108019

main90301-08019

9030108020

main90301-08020

9030111025

main90301-11025

9046022002

main90460-22002

9046046005

main90460-46005

9095901538

main90959-01538

9095904001

main90959-04001

91626B0614

main91626-B0614

91671A0820

main91671-A0820

93319A4010

main93319-A4010

9415180641

main94151-80641

68 parts on this diagram · 2 diagrams in section
