E
EPC Data

SIDE MOULDING

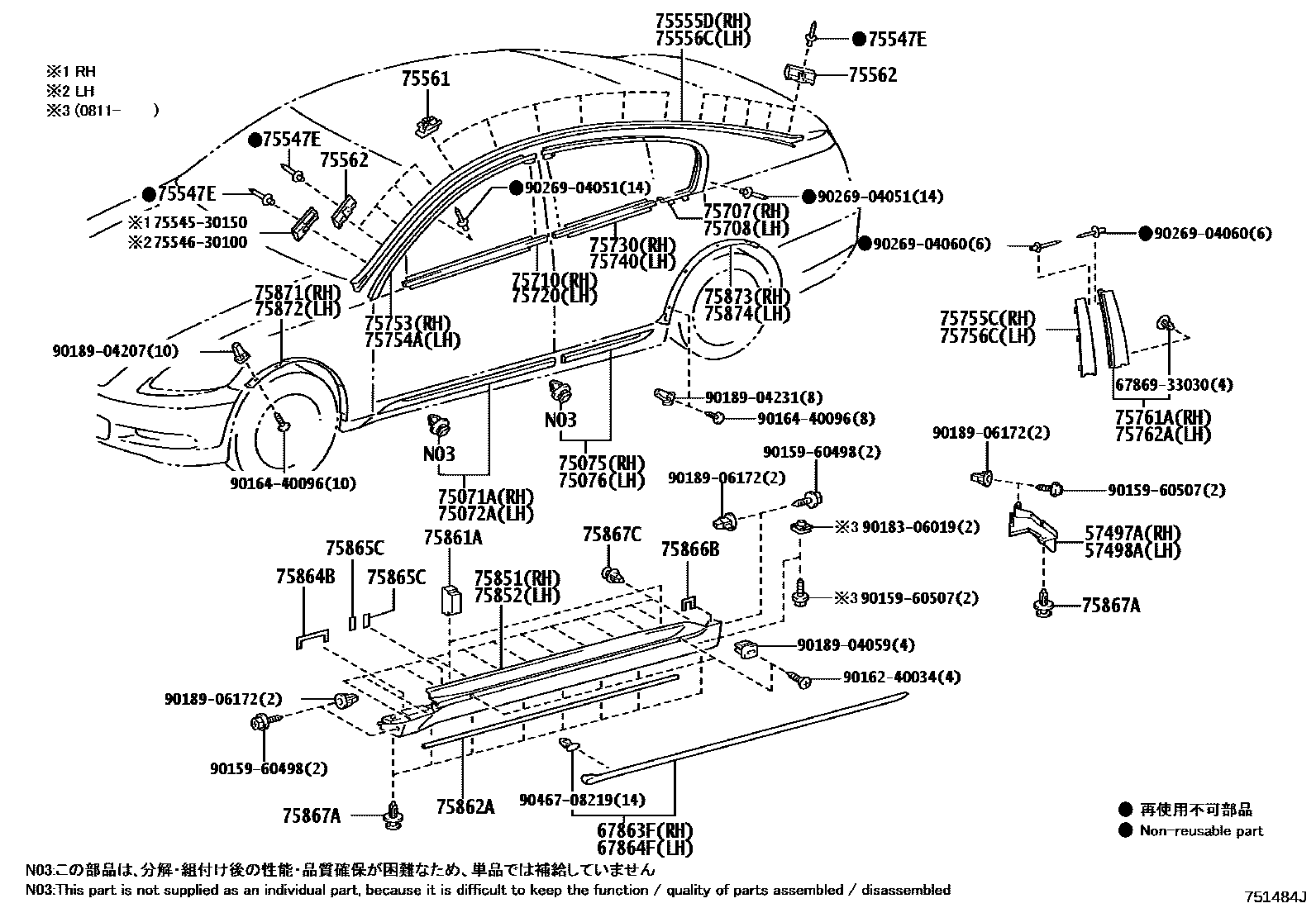

Parts diagram
57497ASHIELD, REAR FLOOR HOUSING
main57497-30050i200602-200709
57498ASHIELD, REAR FLOOR HOUSING, NO.2
main57498-30050i200602-200709
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-30140i200602-200811
main67863-30141i200811
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
main67864-30140i200602-200811
main67864-30141i200811
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
main75071-30080i200602-200709
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
main75072-30080i200602-200709
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
main75075-30090i200602-200709
main75075-30091i200709
main75075-30100i200802
RUSSIA SPEC
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
main75076-30090i200602-200709
main75076-30091i200709
main75076-30100i200802
RUSSIA SPEC
75547ECLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
main75547-51021i200602-200709
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-30110-A0i200602-200607
WHITE PEARL CS.,062
sub75555-30110
main75555-30110-A1i200602-200709
BLUISH PEARL CS.,074
sub75555-30110
main75555-30110-A2i200607-201112
WHITE PEARL CS.,077
sub75555-30110
main75555-30110-B0i200602-200607
DK.GRAY MC.,1E0
sub75555-30110
main75555-30110-B1i200602-201112
PREMIUM SILVER,1F2
sub75555-30110
main75555-30110-B2i200607-201112
DK.GRAY MC.,1G0
sub75555-30110
main75555-30110-B3i200709-201112
FROSTY PEARL MC.,1G5
sub75555-30110
main75555-30110-C0i200602-200607
BLACK,202
sub75555-30110
main75555-30110-C1i200607-201112
BLACK,212
sub75555-30110
main75555-30110-C2i200709-201112
BLACK OPAL MC.,214
sub75555-30110
main75555-30110-C3i201007-201112
STARLIGHT BLACK GF.,217
sub75555-30110
main75555-30110-D0i200602-201112
RED MC.CS.,3R1
sub75555-30110
main75555-30110-E0i200602-200709
PREMIUM BEIGE,4S7
sub75555-30110
main75555-30110-E1i200709-200909
BEIGE ME.,4T1
sub75555-30110
main75555-30110-E2i200909-201112
SLEEK ECRU ME.,4U7
sub75555-30110
main75555-30110-G0i200602-200607
OLIVE M.M.,6T7
sub75555-30110
main75555-30110-G1i200607-200909
JADE GREEN ME.,6V0
sub75555-30110
main75555-30110-G2i200909-201112
DEEP PERIDOT MC.,6V6
sub75555-30110
main75555-30110-J0i200602-200607
DARK BLUE MC.,8P8
sub75555-30110
main75555-30110-J1i200602-201007
PREMIUM LT.BLUE.,8T9
sub75555-30110
main75555-30110-J2i200607-200909
DK.BLUE MC. CC.,8U0
sub75555-30110
main75555-30110-J3i200909-201112
LAPIS LAZULI MC.,8V3
sub75555-30110
main75555-30110-K0i200602-200709
DK.PURPLE M.M.,9AB
sub75555-30110
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75556-30100-A0i200602-200607
WHITE PEARL CS.,062
sub75556-30100
main75556-30100-A1i200602-200709
BLUISH PEARL CS.,074
sub75556-30100
main75556-30100-A2i200607-201112
WHITE PEARL CS.,077
sub75556-30100
main75556-30100-B0i200602-200607
DK.GRAY MC.,1E0
sub75556-30100
main75556-30100-B1i200602-201112
PREMIUM SILVER,1F2
sub75556-30100
main75556-30100-B2i200607-201112
DK.GRAY MC.,1G0
sub75556-30100
main75556-30100-B3i200709-201112
FROSTY PEARL MC.,1G5
sub75556-30100
main75556-30100-C0i200602-200607
BLACK,202
sub75556-30100
main75556-30100-C1i200607-201112
BLACK,212
sub75556-30100
main75556-30100-C2i200709-201112
BLACK OPAL MC.,214
sub75556-30100
main75556-30100-C3i201007-201112
STARLIGHT BLACK GF.,217
sub75556-30100
main75556-30100-D0i200602-201112
RED MC.CS.,3R1
sub75556-30100
main75556-30100-E0i200602-200709
PREMIUM BEIGE,4S7
sub75556-30100
main75556-30100-E1i200709-200909
BEIGE ME.,4T1
sub75556-30100
main75556-30100-E2i200909-201112
SLEEK ECRU ME.,4U7
sub75556-30100
main75556-30100-G0i200602-200607
OLIVE M.M.,6T7
sub75556-30100
main75556-30100-G1i200607-200909
JADE GREEN ME.,6V0
sub75556-30100
main75556-30100-G2i200909-201112
DEEP PERIDOT MC.,6V6
sub75556-30100
main75556-30100-J0i200602-200607
DARK BLUE MC.,8P8
sub75556-30100
main75556-30100-J1i200602-201007
PREMIUM LT.BLUE.,8T9
sub75556-30100
main75556-30100-J2i200607-200909
DK.BLUE MC. CC.,8U0
sub75556-30100
main75556-30100-J3i200909-201112
LAPIS LAZULI MC.,8V3
sub75556-30100
main75556-30100-K0i200602-200709
DK.PURPLE M.M.,9AB
sub75556-30100
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-30210i200602-200709
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
main75562-30070i200602-200709
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
main75707-30080i200602-200709
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
main75708-30090i200602-200709
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-30480i200602-200709
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-30480i200602-200709
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-30360i200602-200709
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-30410i200602-200709
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
main75753-30070i200602-200709
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
main75754-30080i200602-200709
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-30120i200602-200709
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-30110i200602-200709
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-30110i200602-200709
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-30110i200602-200709
NO PAINT REQ.
75851MOULDING, ROCKER PANEL, RH
main75851-30901i200602-200811
sub75851-30902
sub67863-30141
main75851-30902i200811-201112
75852MOULDING, ROCKER PANEL, LH
main75852-30901i200602-200811
sub75852-30902
sub67864-30141
main75852-30902i200811-201112
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
main75861-30130i200602-201004
sub75861-30131
main75861-30131i201005
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
main75862-30130i200602-200709
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
main75864-30060i200602-200709
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
main75865-30030i200602-200709
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
main75866-30030i200602-200709
75867ACLIP, ROCKER PANEL MOULDING
main75867-30120i200602-201112
75867CCLIP, ROCKER PANEL MOULDING
main75867-30130i200602-200912
main75867-33030i201001
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
main75871-30370i200602-200709
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
main75872-30370i200602-200709
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
main75873-30370i200602-200709
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
main75874-30370i200602-200709
6786933030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-33030
7554530150SPACER, WINDSHIELD GLASS
main75545-30150
7554630100CLIP, WINDSHIELD OUTSIDE MOULDING
main75546-30100
9015960498
main90159-60498
9015960507
main90159-60507
9016240034
main90162-40034
9016440096
main90164-40096
9018306019
main90183-06019
9018904059
main90189-04059
9018904207
main90189-04207
9018904231
main90189-04231
9018906172
main90189-06172
9026904051
main90269-04051
9026904060
main90269-04060
9046708219
main90467-08219

53 parts on this diagram · 1 diagram in section
