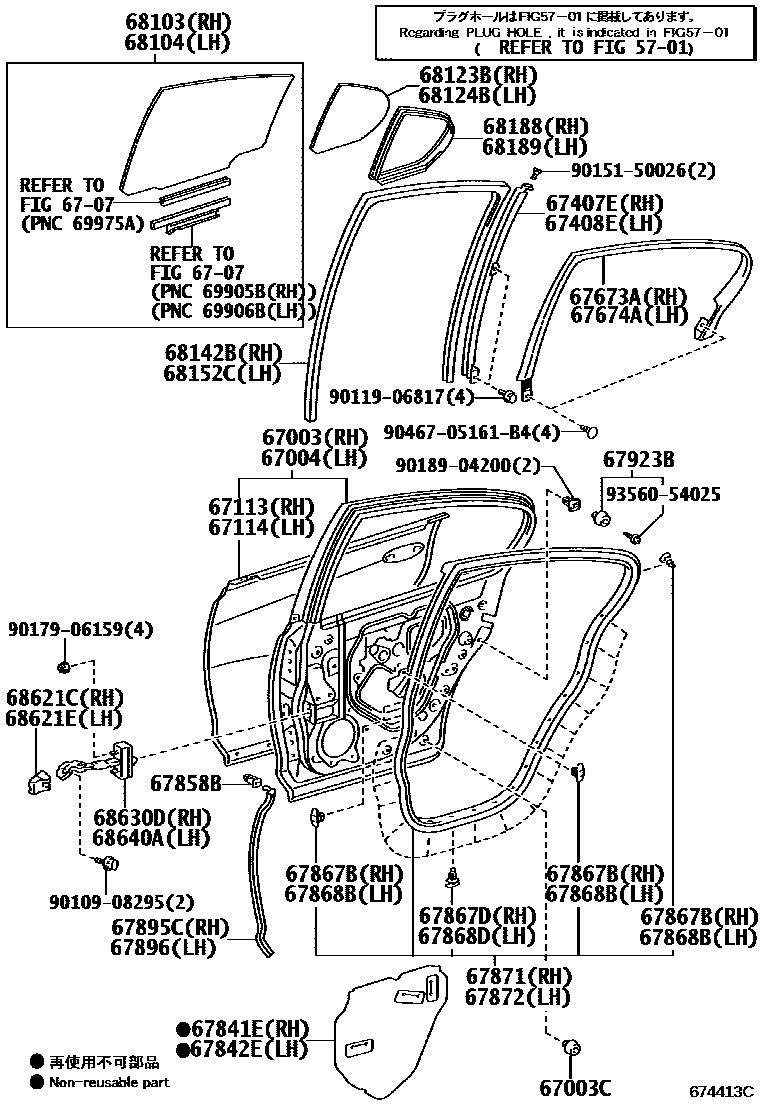

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30620iGWS191200602-201112

67003CCUSHION, REAR DOOR PANEL

main90541-09069iGWS191200602-200709

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30620iGWS191200602-201112

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-30400iGWS191200602-201112

67114PANEL, REAR DOOR, OUTER LH

main67114-30410iGWS191200602-201112

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-30210iGWS191200602-200709

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-30200iGWS191200602-200709

67673AGARNISH, REAR DOOR FRAME, RH

main67673-30111iGWS191200602-200709

67674AGARNISH, REAR DOOR FRAME, LH

main67674-30111iGWS191200602-200709

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-30420iGWS191200602-200709

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-30280iGWS191200602-200709

67858BPROTECTOR, REAR DOOR PANEL, LH

main67857-30040iGWS191200602-200709

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main90467-04034iGWS191200602-201112

WHITE

main90467-05162-B0iGWS191200602-201112

DK.GRAY,BLACK

sub90467-05162

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iGWS191200602-200709

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main90467-04034iGWS191200602-201112

WHITE

main90467-05162-B0iGWS191200602-201112

DK.GRAY,BLACK

sub90467-05162

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iGWS191200602-200709

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30290iGWS191200602-200709

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30300iGWS191200602-200709

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-30020iGWS191200602-200709

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-30020iGWS191200602-200709

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-24030iGWS191200602-200709

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-30680iGWS191200602-200807

*UVCT,T=4.0,GREEN

sub68103-30681

main68103-30681iGWS191200808-201112

*UVCT,T=4.0,GREEN

main68103-30700iGWS191..LHD200909-201112

*UVCT,T=4.0,C.GREEN,SOUTH AFRICA SPEC&BACK GLASS-PRIVACY

main68103-30700iGWS191..LHD200909-201112

*UVCT,T=4.0,C.GREEN,CHINA SPEC&BACK GLASS-PRIVACY

main68103-30700iGWS191..LHD200909-201112

*UVCT,T=4.0,C.GREEN,AUSTRALIA SPEC&BACK GLASS-PRIVACY

main68103-30700iGWS191..LHD200909-201112

*UVCT,T=4.0,C.GREEN,ISRAEL SPEC&BACK GLASS-PRIVACY

main68103-30700iGWS191..RHD200909-201112

*UVCT,T=4.0,C.GREEN,SINGAPORE SPEC&BACK GLASS-PRIVACY

main68103-30700iGWS191..RHD200909-201112

*UVCT,T=4.0,C.GREEN,NEW ZEALAND SPEC&BACK GLASS-PRIVACY

main68103-30700iGWS191..RHD200909-201112

*UVCT,T=4.0,C.GREEN,TAIWAN SPEC&BACK GLASS-PRIVACY

main68103-30700iGWS191200809-200909

*UVCT,T=4.0,C.GREEN,SIDE GLASS-FRONT:UV REAR:PRIVACY

main68103-30700iGWS191..LHD200909-201007

*UVCT,T=4.0,C.GREEN,TURKEY SPEC&BACK GLASS-PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-30680iGWS191200602-200807

*UVCT,T=4.0,GREEN

sub68104-30681

main68104-30681iGWS191200808-201112

*UVCT,T=4.0,GREEN

main68104-30700iGWS191..RHD200909-201112

*UVCT,T=4.0,C.GREEN,SOUTH AFRICA SPEC&BACK GLASS-PRIVACY

main68104-30700iGWS191200809-200909

*UVCT,T=4.0,C.GREEN,SIDE GLASS-FRONT:UV REAR:PRIVACY

main68104-30700iGWS191..LHD200909-201007

*UVCT,T=4.0,C.GREEN,TURKEY SPEC&BACK GLASS-PRIVACY

main68104-30700iGWS191..RHD200909-201112

*UVCT,T=4.0,C.GREEN,SINGAPORE SPEC&BACK GLASS-PRIVACY

main68104-30700iGWS191..RHD200909-201112

*UVCT,T=4.0,C.GREEN,NEW ZEALAND SPEC&BACK GLASS-PRIVACY

main68104-30700iGWS191..RHD200909-201112

*UVCT,T=4.0,C.GREEN,TAIWAN SPEC&BACK GLASS-PRIVACY

main68104-30700iGWS191..RHD200909-201112

*UVCT,T=4.0,C.GREEN,CHINA SPEC&BACK GLASS-PRIVACY

main68104-30700iGWS191..RHD200909-201112

*UVCT,T=4.0,C.GREEN,AUSTRALIA SPEC&BACK GLASS-PRIVACY

main68104-30700iGWS191..RHD200909-201112

*UVCT,T=4.0,C.GREEN,ISRAEL SPEC&BACK GLASS-PRIVACY

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-30610iGWS191200602-200807

*UVCT,T=4.0,GREEN

sub68123-30611

main68123-30611iGWS191200808

*UVCT,T=4.0,GREEN

main68123-30620iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,NEW ZEALAND SPEC&BACK GLASS-PRIVACY

main68123-30620iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,TAIWAN SPEC&BACK GLASS-PRIVACY

main68123-30620iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,SOUTH AFRICA SPEC&BACK GLASS-PRIVACY

main68123-30620iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,CHINA SPEC&BACK GLASS-PRIVACY

main68123-30620iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,AUSTRALIA SPEC&BACK GLASS-PRIVACY

main68123-30620iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,ISRAEL SPEC&BACK GLASS-PRIVACY

main68123-30620iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,SINGAPORE SPEC&BACK GLASS-PRIVACY

main68123-30620iGWS191200809-200909

*UVCT,T=4.0,C.GREEN,SIDE GLASS-FRONT:UV REAR:PRIVACY

main68123-30620iGWS191..LHD200909-201007

*UVCT,T=4.0,C.GREEN,TURKEY SPEC&BACK GLASS-PRIVACY

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-30550iGWS191200602-200807

*UVCT,T=4.0,GREEN

sub68124-30551

main68124-30551iGWS191200808

*UVCT,T=4.0,GREEN

main68124-30560iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,CHINA SPEC&BACK GLASS-PRIVACY

main68124-30560iGWS191200809-200909

*UVCT,T=4.0,C.GREEN,SIDE GLASS-FRONT:UV REAR:PRIVACY

main68124-30560iGWS191..LHD200909-201007

*UVCT,T=4.0,C.GREEN,TURKEY SPEC&BACK GLASS-PRIVACY

main68124-30560iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,SINGAPORE SPEC&BACK GLASS-PRIVACY

main68124-30560iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,NEW ZEALAND SPEC&BACK GLASS-PRIVACY

main68124-30560iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,TAIWAN SPEC&BACK GLASS-PRIVACY

main68124-30560iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,SOUTH AFRICA SPEC&BACK GLASS-PRIVACY

main68124-30560iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,AUSTRALIA SPEC&BACK GLASS-PRIVACY

main68124-30560iGWS191..RHD200909

*UVCT,T=4.0,C.GREEN,ISRAEL SPEC&BACK GLASS-PRIVACY

68142BRUN, REAR DOOR WINDOW, RH

main68142-30200iGWS191200602-200709

68152CRUN, REAR DOOR GLASS, LH

main68152-30110iGWS191200602-200709

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30180iGWS191200602-200709

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-30160iGWS191200602-200709

68621CCOVER, REAR DOOR CHECK, RH

main68621-33010iGWS191200602-200709

68621ECOVER, REAR DOOR CHECK, LH

main68622-33010iGWS191200602-200709

68630DCHECK ASSY, REAR DOOR, RH

main68630-30200iGWS191200602-201002

sub68630-30201

main68630-30201iGWS191201003

68640ACHECK ASSY, REAR DOOR, LH

main68640-30100iGWS191200602-201002

sub68640-30101

main68640-30101iGWS191201003

9010908295

main90109-08295

9011906817

main90119-06817

9015150026

main90151-50026

9017906159

main90179-06159

9018904200

main90189-04200

9046705161B4

main90467-05161B4

9356054025

main93560-54025

42 parts on this diagram · 2 diagrams in section
