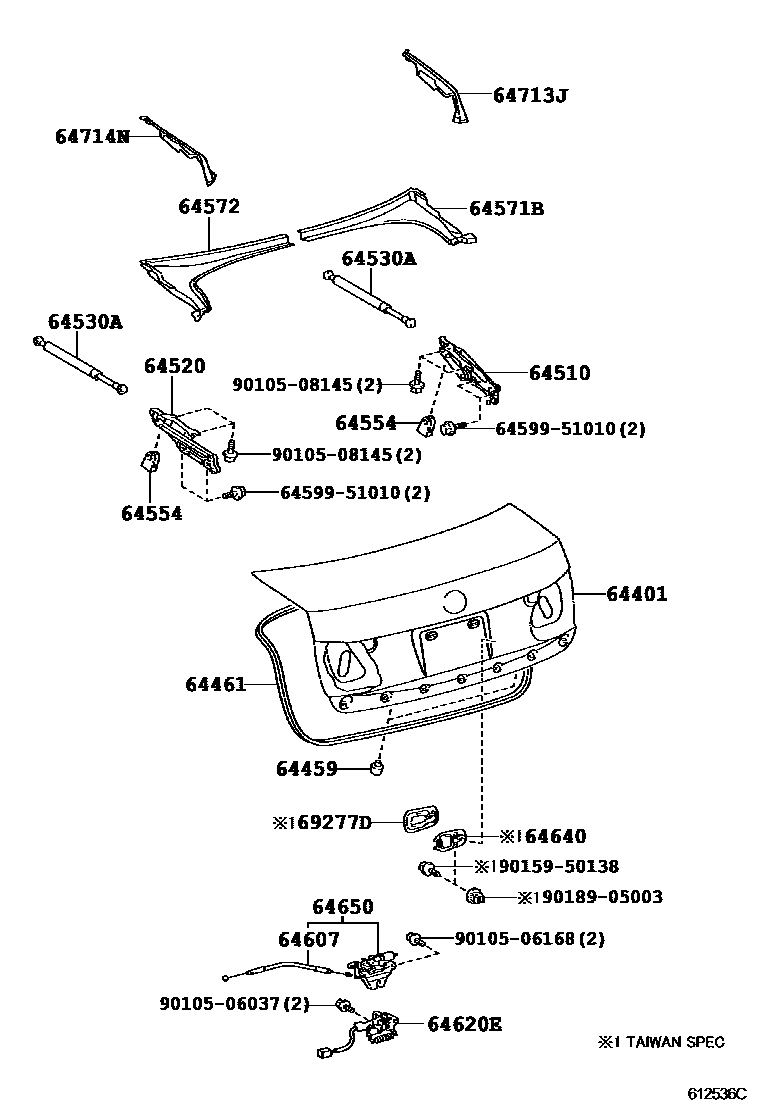

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30B30supersedes 64401-30B20iGWS191..LHD200709

REAR SPOILER-WITH

main64401-30B50supersedes 64401-30B20iGWS191..RHD200709

REAR SPOILER-WITH

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×2iGWS191200602-200709

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30340iGWS191200602-200709

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30430iGWS191200602-200709

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30240iGWS191200602-200709

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-0W091×2iGWS191200602-200709

64554STOPPER, LUGGAGE DOOR BALANCER

main64554-30030×2iGWS191200602-200709

main64554-30031×2iGWS191200904

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-30110iGWS191200602-200709

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-30070iGWS191200602-200709

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-50010iGWS191200602-200709

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-50020iGWS191200602-200709

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-50010iGWS191..LHD200809

TAIWAN SPEC

64650CLOSER ASSY, LUGGAGE DOOR

main64650-50010iGWS191200602-200709

main64650-50020iGWS191..LHD200809

TAIWAN SPEC

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64713-30080iGWS191200602-200709

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64714-30460iGWS191200602-200709

69277DBEZEL, DOOR INSIDE HANDLE

main69277-30190iGWS191..LHD200809

TAIWAN SPEC

6459951010BOLT, LUGGAGE DOOR HINGE

main64599-51010

9010506037

main90105-06037

9010506168

main90105-06168

9010508145

main90105-08145

9015950138

main90159-50138

9018905003

main90189-05003

22 parts on this diagram · 1 diagram in section
