MAT & CARPET

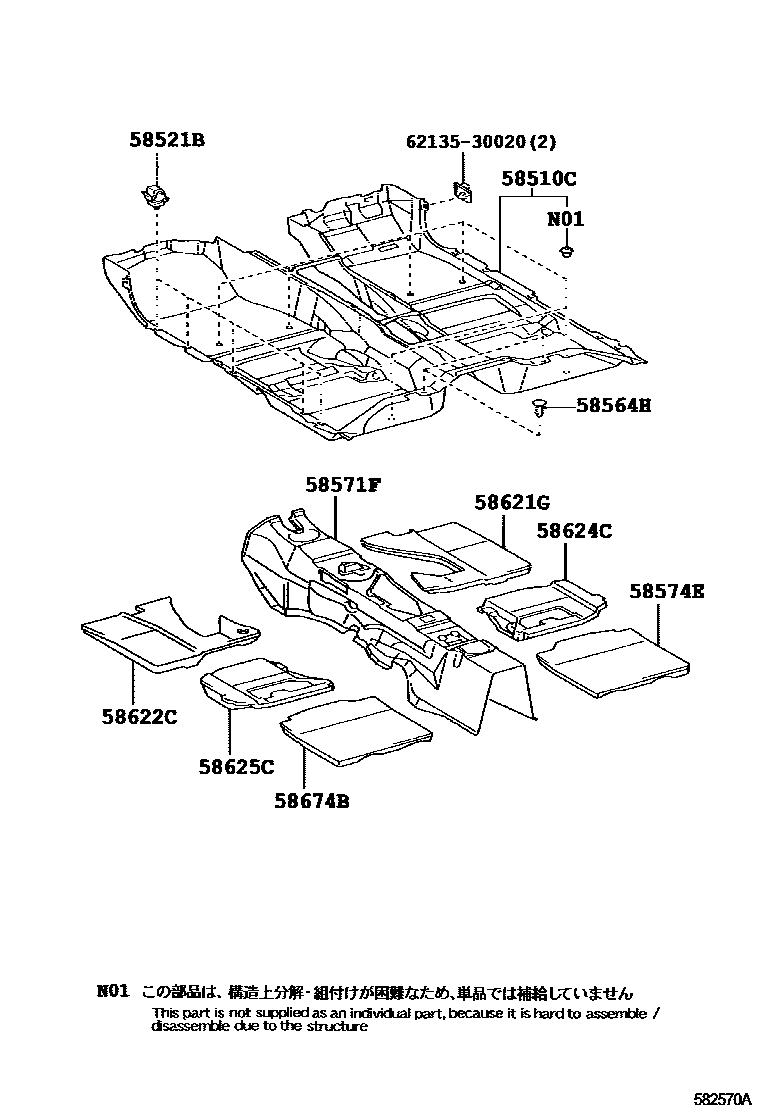

Parts diagram

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-30A10-A0i200602-200709

IVORY,TRIM0#

main58510-30A10-B0i200602-200709

GRAY,TRIM1#

main58510-30A10-C0i200602-200709

BLACK,TRIM2#

main58510-30B00-A0i200709-200909

IVORY,TRIM00,01

main58510-30B00-A1i200909-201112

IVORY,TRIM02

main58510-30B00-B0i200709-201112

LT.GRAY,TRIM1#

main58510-30B00-C0i200709-201112

BLACK,TRIM04,2#

main58510-30B20-A0i200709-200909

IVORY,TRIM00,01

main58510-30B20-A1i200909-201112

IVORY,TRIM02

main58510-30B20-B0i200709-201112

LT.GRAY,TRIM1#

main58510-30B20-C0i200709-201112

BLACK,TRIM04,2#

main58510-3K780-A0i200602-200709

IVORY,TRIM0#

main58510-3K780-B0i200602-200709

GRAY,TRIM1#

main58510-3K780-C0i200602-200709

BLACK,TRIM2#

58521BHOOK, FLOOR CARPET

main58521-30140i200602-200709

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-05164-B8i200602-201112

LT.GRAY

58571FPAD, FRONT FLOOR, FRONT

main58571-30090i200602-200709

main58571-30100i200602-200709

main58571-30160i200709

main58571-30170i200709

58574EPAD, REAR FLOOR SILENCER, NO.1

main58673-30020i200602-200709

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30150i200602-200709

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30160i200602-200709

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30140i200602-200709

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30090i200602-200709

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30020i200602-200709

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

11 parts on this diagram · 1 diagram in section
