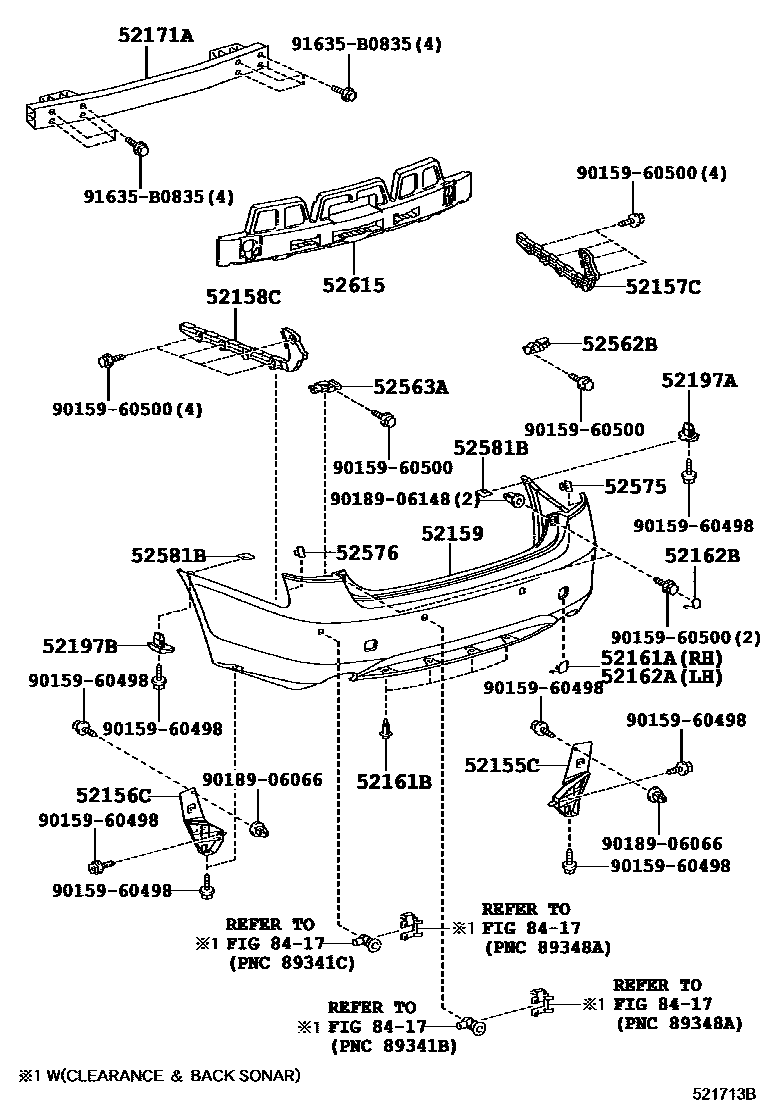

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-30080iGWS191¥2,570200602-200709

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-30050iGWS191¥2,570200602-200709

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-30061iGWS191¥4,070200602-200709

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-30081iGWS191¥4,070200602-200709

52159COVER, REAR BUMPER

main52159-30934iGWS191¥85,200200602-200709

PAINT REQ.

main52159-30940iGWS191¥85,100200709-200905

PAINT REQ.

sub52159-30942¥85,100

main52159-30942iGWS191¥85,100200905-201112

PAINT REQ.

52161APIECE, REAR BUMPER, RH

main52161-30902iGWS191¥250200602-200709

main52161-30906iGWS191¥510200709-201112

52161BPIECE, REAR BUMPER

main52161-16010iGWS191¥120200602-200709

sub52161-0K040¥120

52162APIECE, REAR BUMPER, LH

main52162-30902iGWS191¥250200602-200709

main52162-30912iGWS191200709-201112

52162BPLATE, REAR BUMPER, NO.1

main52162-30906iGWS191¥360200602-201112

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-30290iGWS191¥44,900200602-201112

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-30040iGWS191¥220200602-200709

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-30040iGWS191¥220200602-200709

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-30120iGWS191¥2,790200602-200709

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-30070iGWS191¥2,790200602-200709

52575RETAINER, REAR BUMPER SIDE, RH

main52575-30180iGWS191¥340200602-200709

52576RETAINER, REAR BUMPER SIDE, LH

main52575-30180iGWS191¥340200602-200709

52581BPROTECTOR, REAR BUMPER

main52581-30060iGWS191¥120200602-200709

52615ABSORBER, REAR BUMPER ENERGY

main52615-30260iGWS191¥13,800200602-200908

sub52615-30261¥13,800

main52615-30261iGWS191¥13,800200909

8417

9015960498

main90159-60498¥70

9015960500

main90159-60500¥70

9018906066

main90189-06066¥80

9018906148

main90189-06148¥80

91635B0835

main91635-B0835¥80

24 parts on this diagram · 2 diagrams in section
