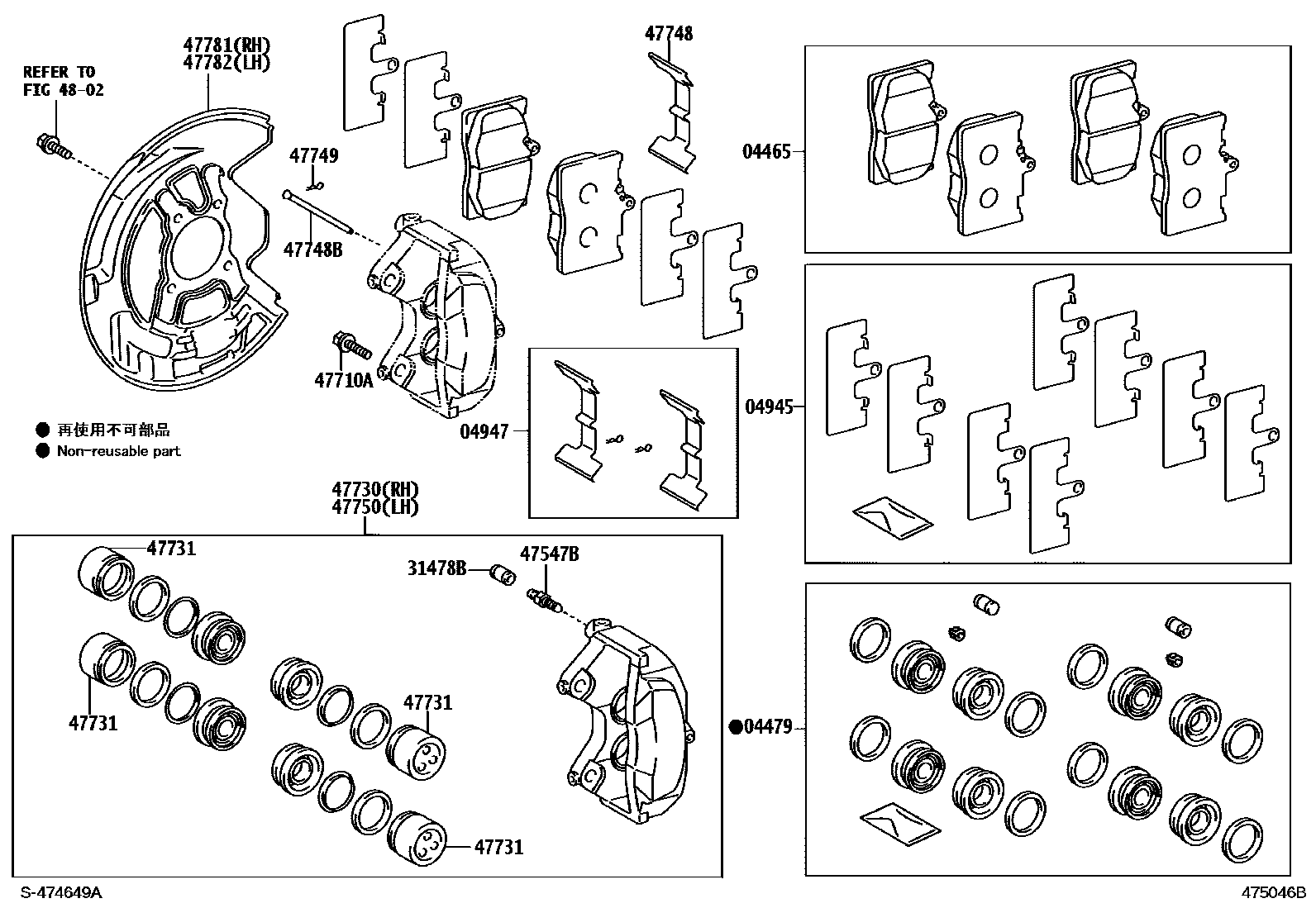

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-30410iGWS191200602-201112

MARK TEXTAR T4146

sub04465-30500

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iGWS191200602-200709

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-22151iGWS191200602-200808

sub04945-22152

main04945-22152iGWS191200808

sub04945-30350

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iGWS191200608-200709

main04947-50090iGWS191200602-200607

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGWS191200602-200709

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iGWS191200602-200709

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main91552-K1240iGWS191200602-201112

*12-1.25PX40-30

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iGWS191200602-200709

47731PISTON, FRONT DISC BRAKE

main47731-50070iGWS191200602-200709

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-22460iGWS191200608-200709

main47748-50020iGWS191200602-200607

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020iGWS191200602-200709

47749CLIP, PIN HOLD

main47749-50030iGWS191200602-200709

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iGWS191200602-200709

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22200iGWS191200602-201112

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22200iGWS191200602-201112

4802

16 parts on this diagram · 1 diagram in section
