MIRROR

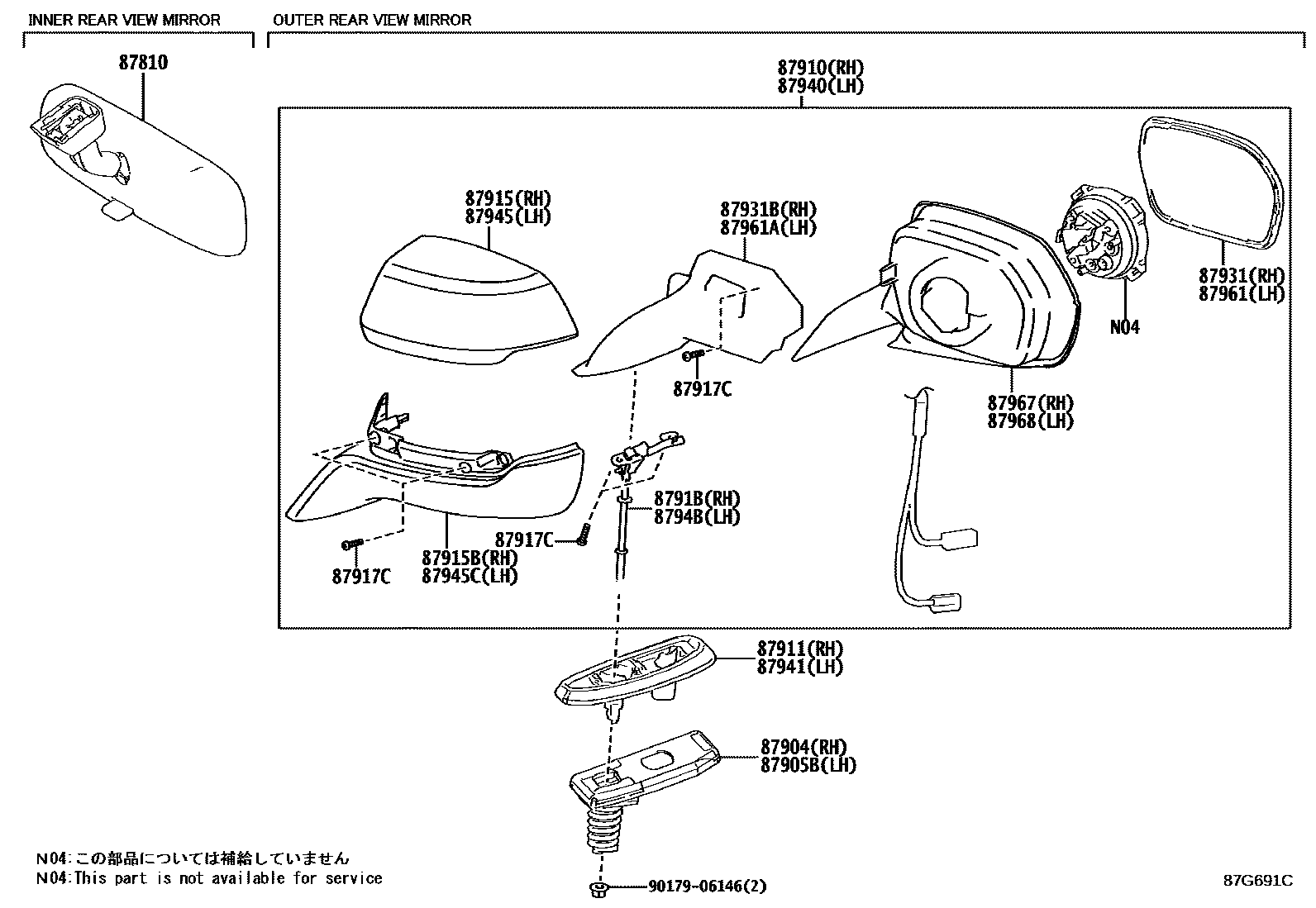

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-28140i202212

main87810-52041i201710-202212

87904SPRING SUB-ASSY, OUTER MIRROR, RH

main87904-15010i201710

87905BSPRING SUB-ASSY, OUTER MIRROR, LH

main87905-15010i201710

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87901-15020i201710-202402

main87901-15050i202402

PLATED

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-15010i201710

87915COVER, OUTER MIRROR, RH

main8791A-15020i201710

87915BCOVER, OUTER MIRROR, LOWER RH

main87915-15010i202402

main87915-15020i201710-202402

87917CSCREW, OUTER MIRROR

main87917-15010×16i201710

8791BHANGER SUB-ASSY, OUTER MIRROR, RH

main8791B-15010i201710

87931OUTER MIRROR, RH

main87931-15010i201710-202402

main87931-15070i202402

87931BFRAME, OUTER MIRROR, RH

main87931-15020i201710

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87906-15020i201710-202402

main87906-15050i202402

PLATED

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-15010i201710

87945COVER, OUTER MIRROR, LH

main8794A-15020i201710

87945CCOVER, OUTER MIRROR, LOWER LH

main87945-15010i202402

main87945-15020i201710-202402

8794BHANGER SUB-ASSY, OUTER MIRROR, LH

main8794B-15010i201710

87961MIRROR OUTER, LH

main87961-15010i201710-202402

main87961-15070i202402

87961AFRAME, OUTER MIRROR, LH

main87961-15020i201710

87967HOLDER, MIRROR, OUTER RH

main87967-15010i202402

main87967-15020i201710-202402

87968HOLDER, MIRROR, OUTER LH

main87968-15010i202402

main87968-15020i201710-202402

9017906146

main90179-06146

21 parts on this diagram · 1 diagram in section
