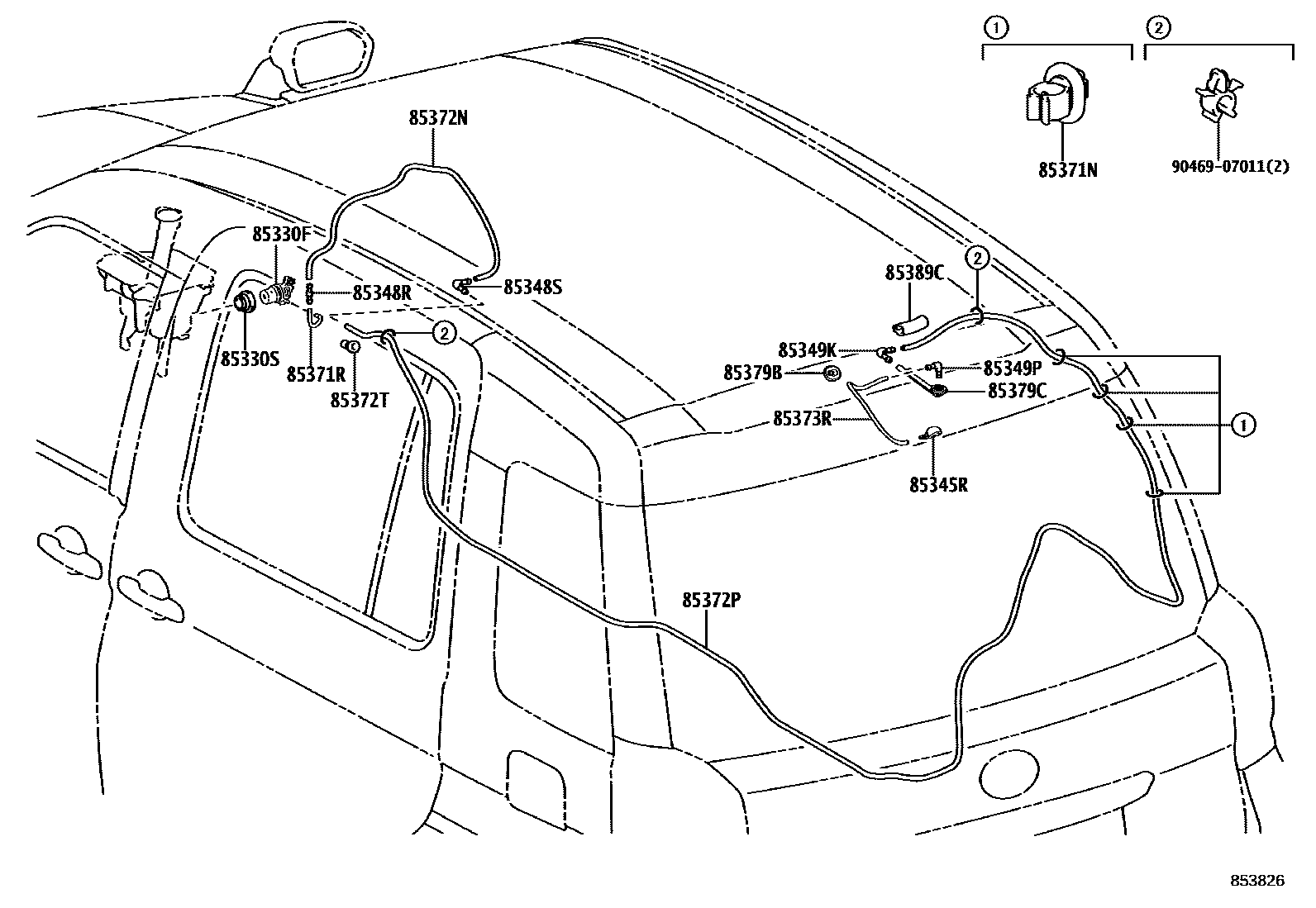

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNTP10201710

85330SBUSH, REAR WASHER JAR

main85336-60300iNTP10201710

85345RNOZZLE, REAR WASHER

main85391-15010iNTP10201710

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNTP10201710

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNTP10201710

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNTP10201710

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iNTP10201710

85371NCLAMP, REAR WASHER HOSE

main82711-1A750iNTP10201710

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iNTP10201710

L=1450(*H,L=100)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iNTP10201710

L=1800(*H,L=880)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-59396iNTP10201710

L=4815

85372TGROMMET, WASHER

main85379-15020iNTP10201710

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNTP10201710

L=1000(*H,L=340)

85379BGROMMET, WASHER, A

main85372-20020iNTP10201710-202406

main85373-52030iNTP10202407

85379CGROMMET, REAR WASHER HOSE NO.1

main85372-20040iNTP10201710

85389CPROTECTOR, WASHER

main85379-26120iNTP10201710

9046907011

main90469-07011

17 parts on this diagram · 1 diagram in section
