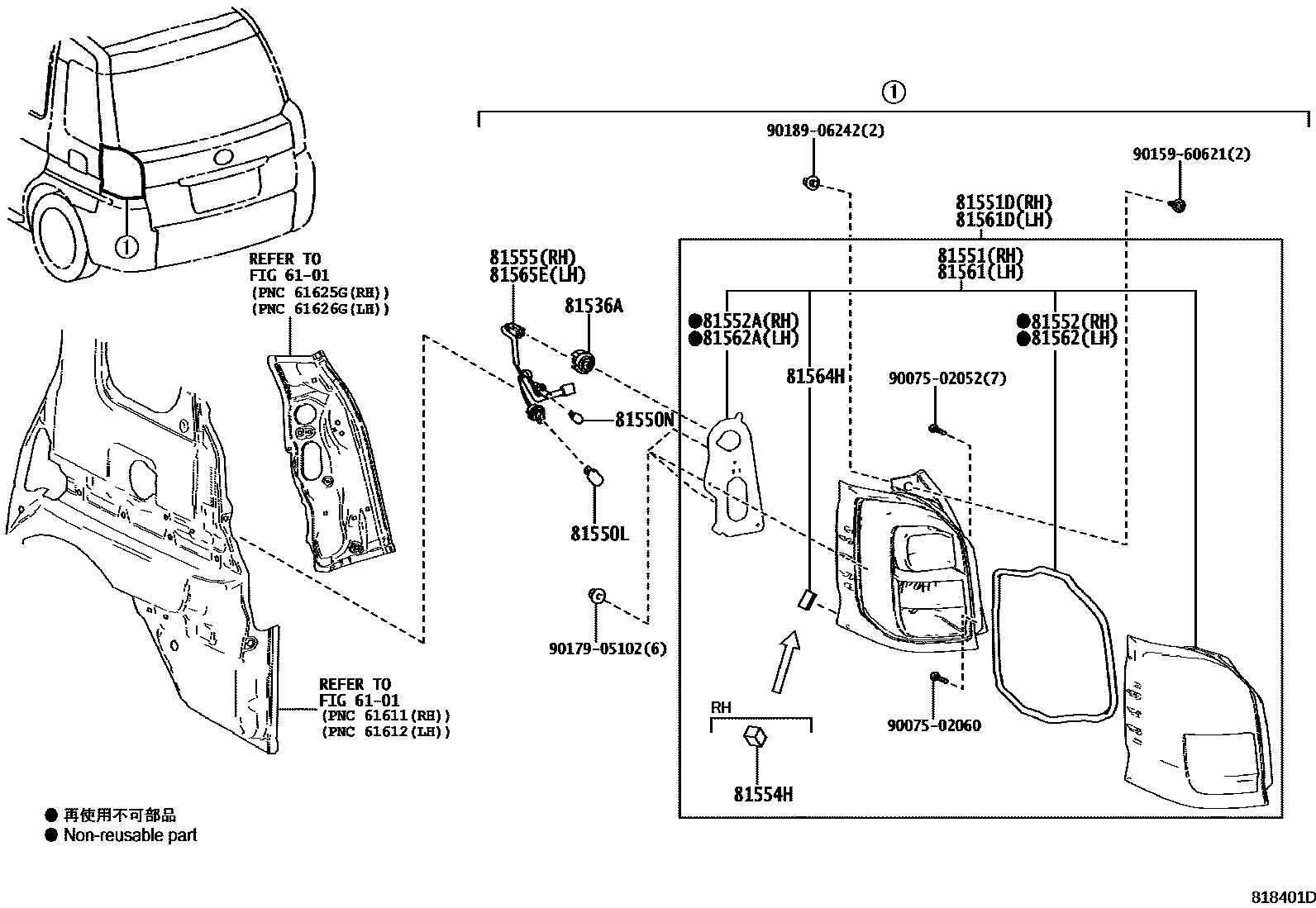

REAR COMBINATION LAMP

6101

81536ALED, REAR COMBINATION LAMP

main81536-15120iNTP10201710-202204

main81965-70010iNTP10202205

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iNTP10201710

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iNTP10201710

12V 16W

81551LENS, REAR COMBINATION LAMP, RH

main81553-15120iNTP10201710

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-15120iNTP10201710

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81132-30E40iNTP10201710

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-15120iNTP10201710

81554HPACKING, REAR COMBINATION LAMP, RH

main81554-15120iNTP10201710

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-15120iNTP10201710

81561LENS, REAR COMBINATION LAMP, LH

main81563-15120iNTP10201710

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-15120iNTP10201710

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81132-30E40iNTP10201710

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-15120iNTP10201710

81564HPACKING, REAR COMBINATION LAMP, LH

main81564-15120iNTP10201710

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-15120iNTP10201710

9007502052

main90075-02052

9007502060

main90075-02060

9015960621

main90159-60621

9017905102

main90179-05102

9018906242

main90189-06242

21 parts on this diagram · 1 diagram in section
