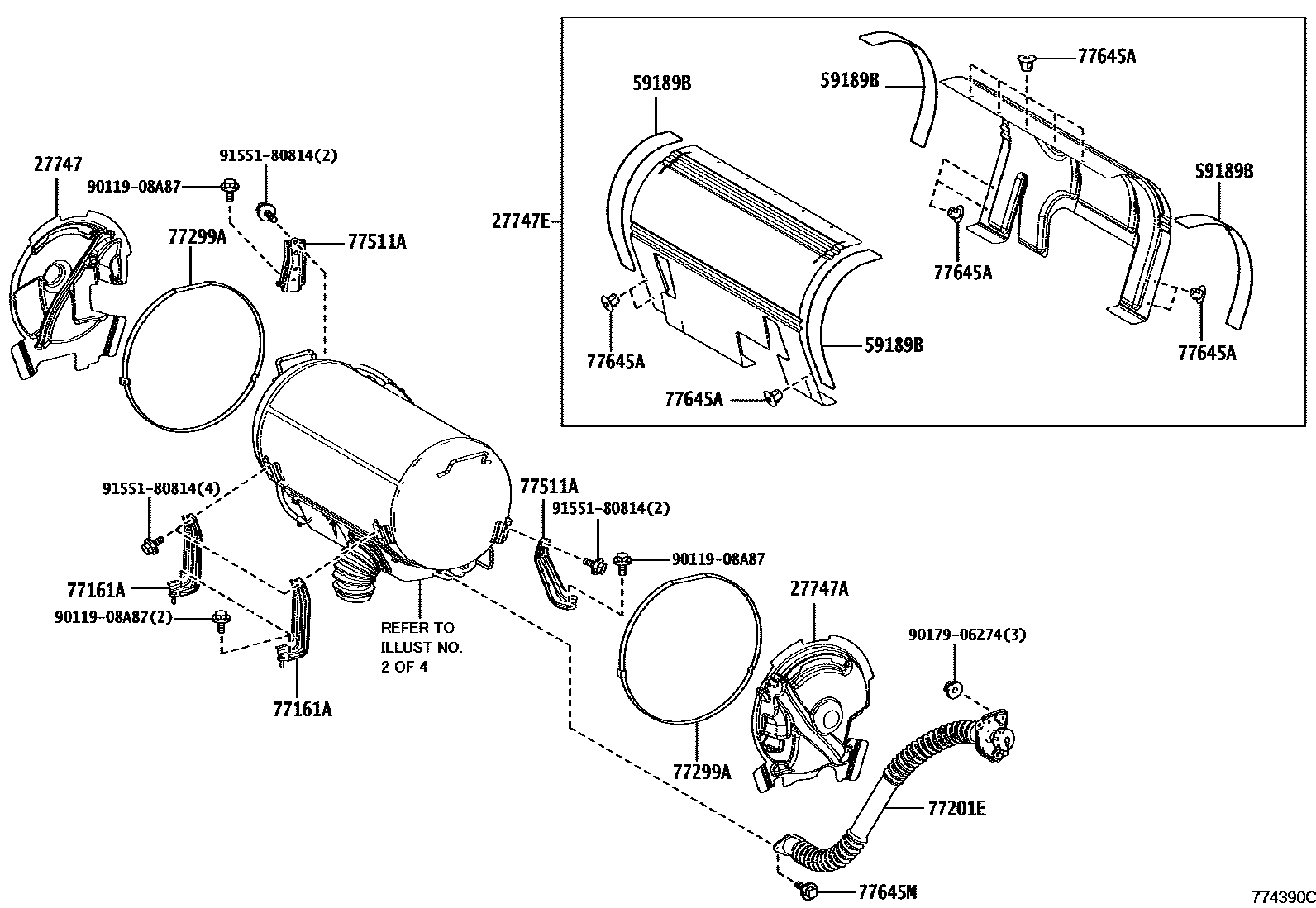

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL LID OPENER

27747INSULATOR, NO.1(FOR FUEL TANK)

main27747-21030i1NZFXP..NTP10201710

27747AINSULATOR, NO.2(FOR FUEL TANK)

main27747-21040i1NZFXP..NTP10201710

27747EINSULATOR, NO.5 (FOR FUEL TANK)

main27747-21050i1NZFXP..NTP10201710

59189BCOVER, NOISE SHUTTER SIDE

main59189-15010iNTP10201710

77161ABRACKET, FUEL TANK MOUNTING, FRONT

main77161-15010iNTP10201710

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-15040iNTP10201710

77299ACLAMP, FUEL TUBE, NO.5

main77289-15010iNTP10201710

77511ABRACKET, FUEL TANK

main77165-15010iNTP10201710

77645ARETAINER, FUEL TANK PROTECTOR

main77645-15010iNTP10201710

77645MBOLT, FUEL TANK, NO.11

main77644-43040iNTP10201710

9011908A87

main90119-08A87

9017906274

main90179-06274

9155180814

main91551-80814

13 parts on this diagram · 4 diagrams in section
