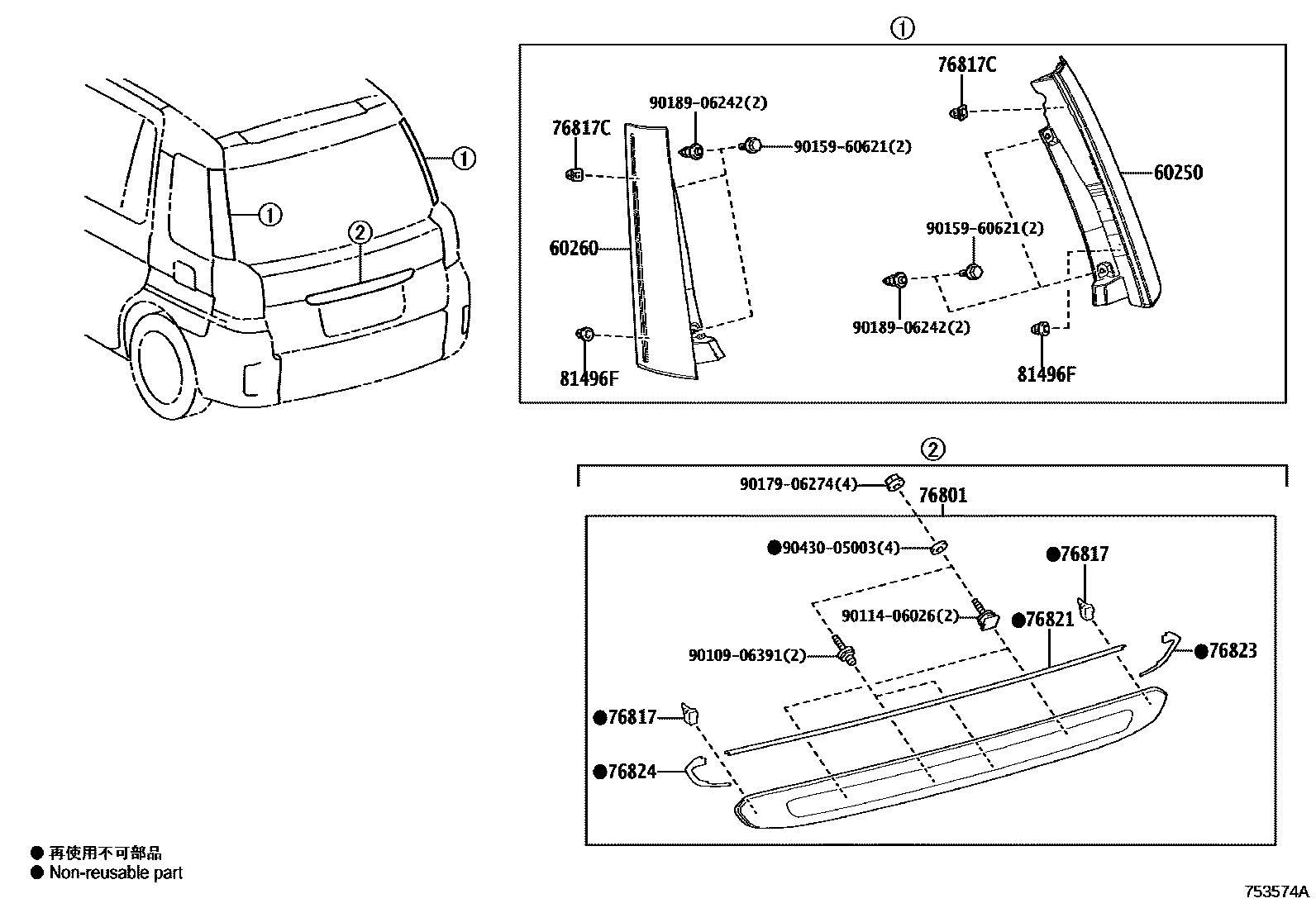

REAR MOULDING

60250GARNISH ASSY, QUARTER PILLAR, RH

main60250-15010iNTP10201710

60260GARNISH ASSY, QUARTER PILLAR, LH

main60260-15010iNTP10201710

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-15020iNTP10201710

PLATED

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12070iNTP10201710

76817CCLIP, QUARTER PILLAR GARNISH

main76817-26040iNTP10201710

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-15010iNTP10201710

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-15010iNTP10201710

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-15010iNTP10201710

81496FGUIDE, QUARTER PILLAR GARNISH

main81496-52020iNTP10201710

9010906391

main90109-06391

9011406026

main90114-06026

9015960621

main90159-60621

9017906274

main90179-06274

9018906242

main90189-06242

9043005003

main90430-05003

15 parts on this diagram · 1 diagram in section
