BATTERY CARRIER

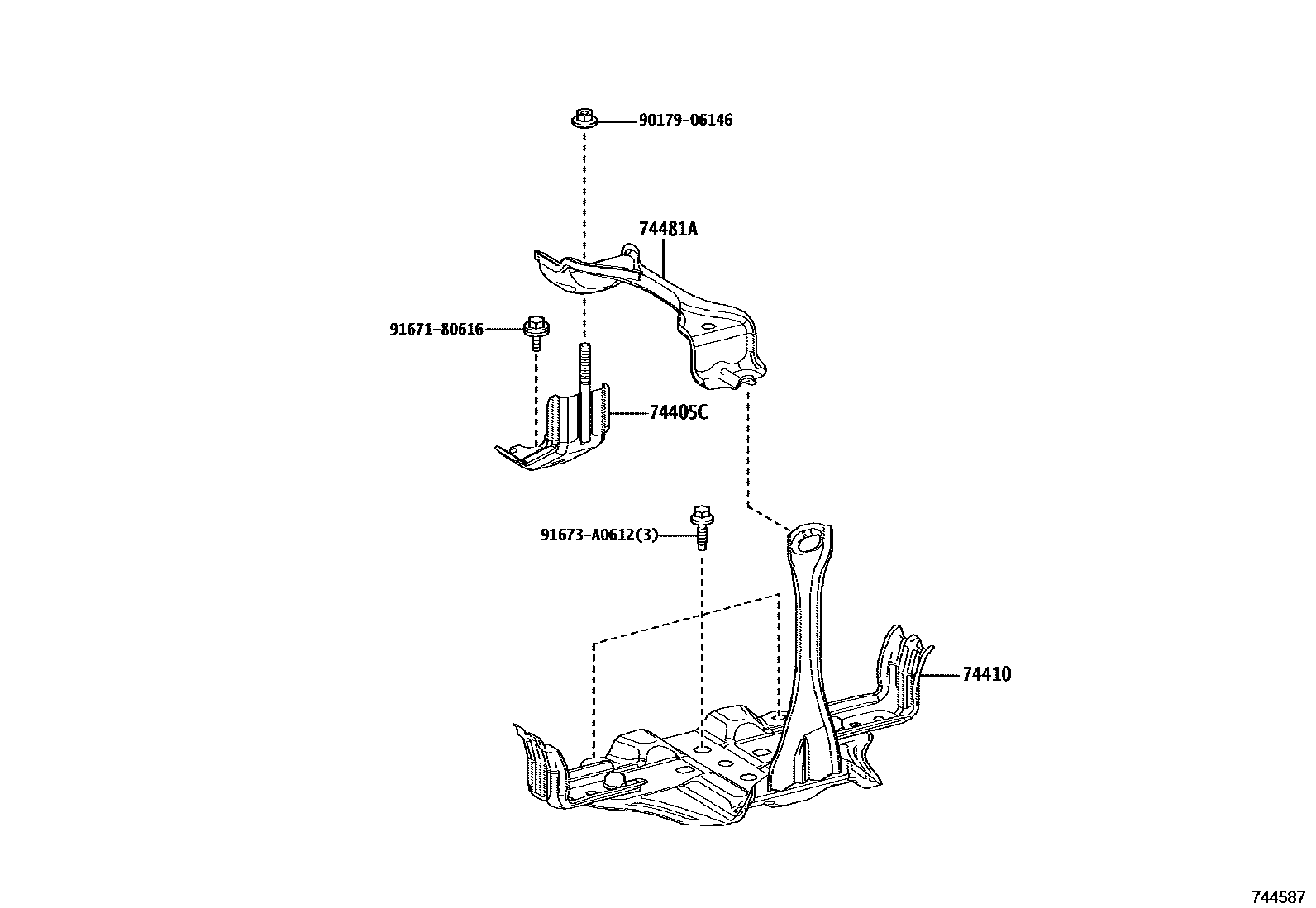

Parts diagram

74405CCOVER SUB-ASSY,BATTERY

main74405-15010i¥540201710-202412

main74405-15020i¥490202501

74410CARRIER ASSY, BATTERY

main74410-15020i¥6,500201710

74481ACLAMP, BATTERY

main74481-15010i¥810201710

9017906146

main90179-06146¥100

9167180616

main91671-80616¥60

91673A0612

main91673-A0612¥60

6 parts on this diagram · 1 diagram in section
