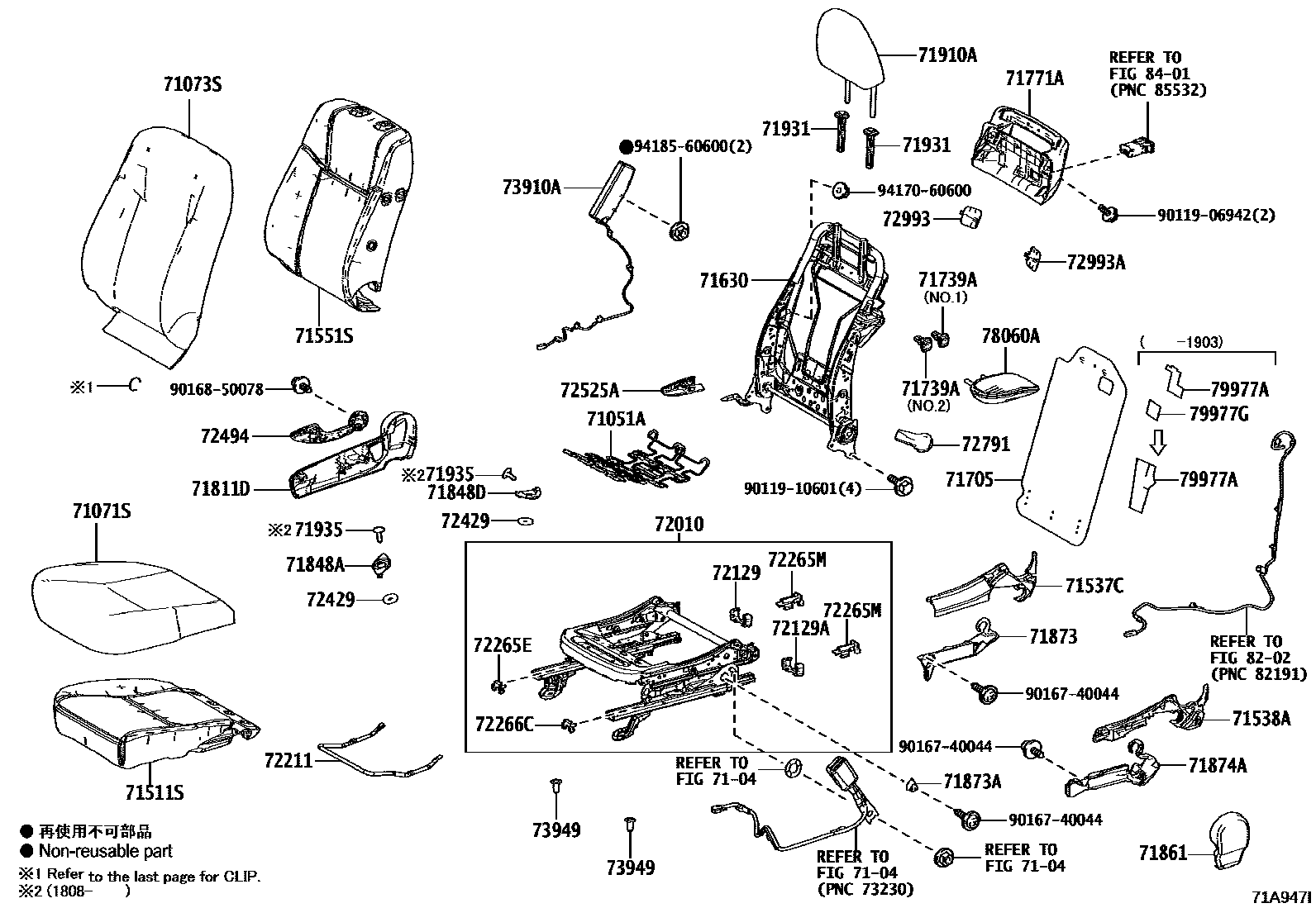

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE 0002 1PASSENGER SIDE 0003 1SEAT LEG COVER 0004 1SEAT COVER EDGE WIRE & CLIP

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-21040iNTP10¥3,010201710

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-15030-C0iNTP10202105-202205

BLACK,TRIM4#

sub71071-15031¥21,000

main71071-15031-C0iNTP10202205

BLACK,TRIM4#

main71071-15050-C2iNTP10201710-202105

BLACK,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-15040-C3iNTP10201710-201903

BLACK,TRIM4#

main71073-15041-C3iNTP10201903-202105

BLACK,TRIM4#

main71073-15050-C0iNTP10202105-202205

BLACK,TRIM4#

sub71073-15051¥30,200

main71073-15051-C0iNTP10202205

BLACK,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-15010iNTP10¥10,100201710

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-52150-C1iNTP10201710

BLACK,TRIM4#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-52090-C1iNTP10201710

BLACK,TRIM4#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-15020iNTP10¥13,400201710-201903

main71551-15021iNTP10¥10,100201903

71630SPRING ASSY, FRONT SEATBACK, RH

main71630-15020iNTP10¥49,500201710-201903

main71630-15021iNTP10¥37,400201903

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-15010iNTP10¥1,450201710

71739ABEZEL, FRONT SEATBACK

main71739-15010-C0iNTP10201710-201903

BLACK,TRIM4#,NO.1 & NO.2

main71739-15010-C0iNTP10201903

BLACK,TRIM4#,NO.1:REFER ILLUST.

main71739-15020-C0iNTP10201903

BLACK,TRIM4#,NO.2:REFER ILLUST.

71771ABOARD, FRONT SEATBACK

main71771-15020-C1iNTP10201710

BLACK,TRIM4#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-15020-C1iNTP10201710

BLACK,TRIM4#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-15020-C0iNTP10201710

BLACK,TRIM4#

71848DCAP, SEAT ADJUSTER COVER, RH(FOR RH SEAT)

main71848-15030-C0iNTP10201710

BLACK,TRIM4#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52230-C1iNTP10201710

BLACK,TRIM4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040iNTP10¥1,060201710

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-68020iNTP10¥200201710

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040iNTP10¥1,060201710

71910AHEADREST ASSY, FRONT SEAT

main71910-15040-C3iNTP10201710-202205

BLACK,TRIM4#

sub71910-15041¥19,000

main71910-15041-C3iNTP10202205-202402

BLACK,TRIM4#

main71910-15060-C0iNTP10202402

BLACK,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-C4iNTP10201710

W(LOCK),BLACK,TRIM4#

sub71930-47020¥1,040

main71931-47020-C4iNTP10201710

W/O(LOCK),BLACK,TRIM4#

sub71931-47020¥630

71935CLIP

main90467-05045-C0iNTP10201808

BLACK,TRIM4#

sub90467-05045¥140

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-15040iNTP10¥27,500201710

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-52180iNTP10¥330201710

72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2

main72129-52180iNTP10¥330201710

72211HANDLE, SEAT TRACK ADJUSTING

main72211-12340iNTP10¥1,350202203

main72211-15020iNTP10¥1,490201710-202203

sub72211-12340¥1,350

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-15010-C0iNTP10201710

BLACK,TRIM4#

72265ECOVER, SEAT TRACK UPPER RAIL, RH

main72265-60110iNTP10¥130201710

72265MCOVER, SEAT TRACK UPPER RAIL, RH

main72265-15020iNTP10¥290201710-202007

sub72265-52040¥380

main72265-52040iNTP10¥380202008

72266COVER, SEAT TRACK UPPER RAIL, LH

main72266-15010-C0iNTP10201710

BLACK,TRIM4#

72266CCOVER, SEAT TRACK UPPER RAIL, LH

main72265-60110iNTP10¥130201710

72429PLATE, FRONT SEAT ADJUSTER, RH

main72429-15010iNTP10¥200201710

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-68011-C1iNTP10201710

BLACK,TRIM4#

sub72494-68011¥4,130

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-C1iNTP10201710

BLACK,TRIM4#

sub72525-47010¥1,020

sub72525-52050¥1,040

72791LEVER, LUMBAR SUPPORT

main72791-15010-C1iNTP10201710

BLACK,TRIM4#

72993COVER, FRONT SEATBACK

main72993-15010-C1iNTP10201710

BLACK,TRIM4#

72993ACOVER, FRONT SEATBACK

main72993-15030-C1iNTP10201710

BLACK,TRIM4#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-15010iNTP10¥20,000201710

73949CAP

main71848-76010iNTP10¥200201710

78060ATABLE ASSY, FRONT SEATBACK, RH

main78060-15010-C2iNTP10201710-201903

BLACK,TRIM4#

main78060-15011-C2iNTP10201903

BLACK,TRIM4#

79977AFELT, SEATBACK

main79977-15010iNTP10¥720201710-201903

main79977-15030iNTP10¥540201903

79977GFELT, FRONT SEATBACK, RH

main79977-15020iNTP10¥720201710-201903

8202

8401

9011906942

main90119-06942¥60

9011910601

main90119-10601¥90

9016740044

main90167-40044¥70

9016850078

main90168-50078¥60

9417060600

main94170-60600¥60

9418560600

main94185-60600¥70

50 parts on this diagram · 4 diagrams in section
