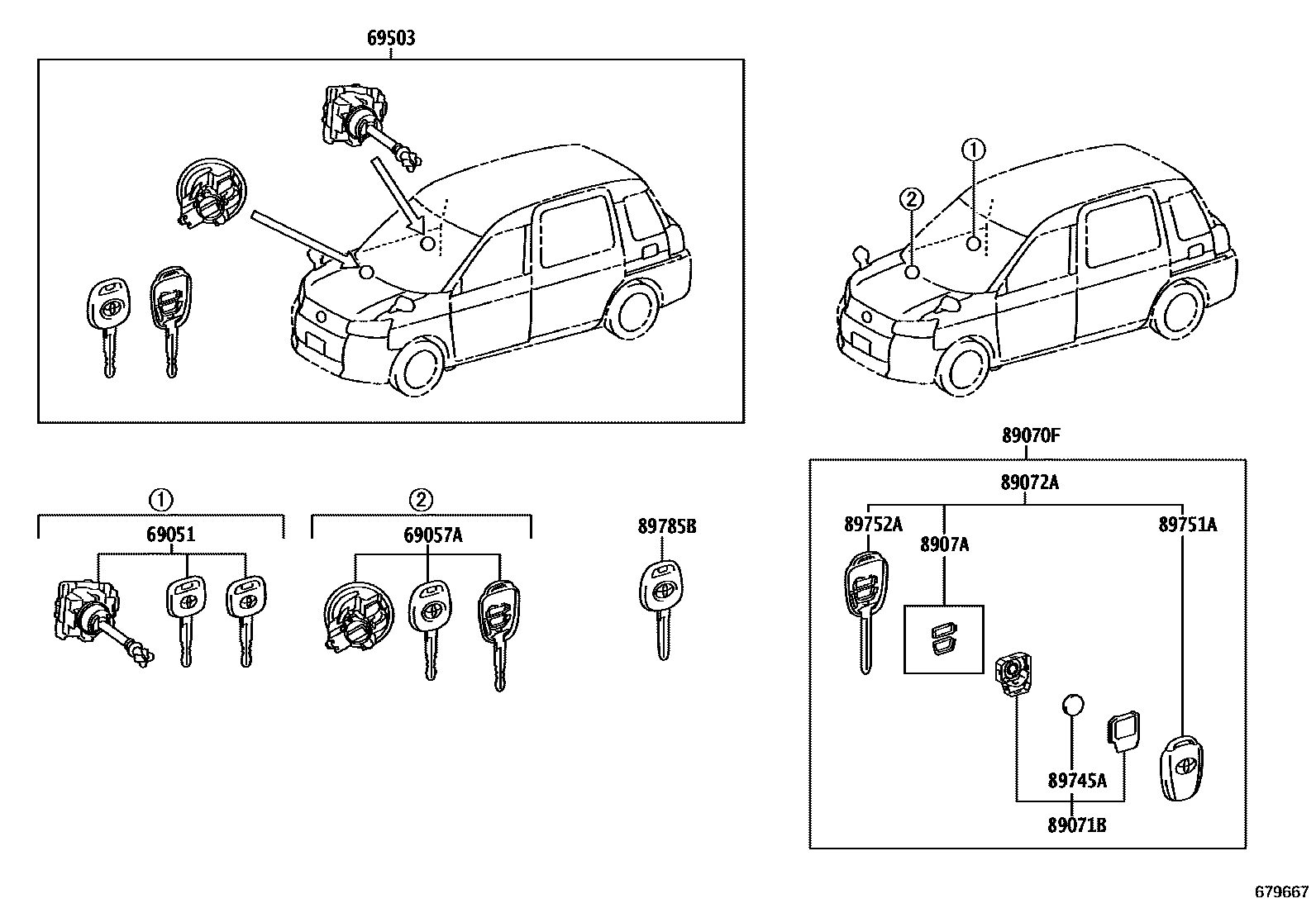

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
8907ASWITCH SET, TRANSMITTER
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
89785BTRANSMITTER, TRANSPONDER KEY MASTER
11 parts on this diagram · 1 diagram in section
