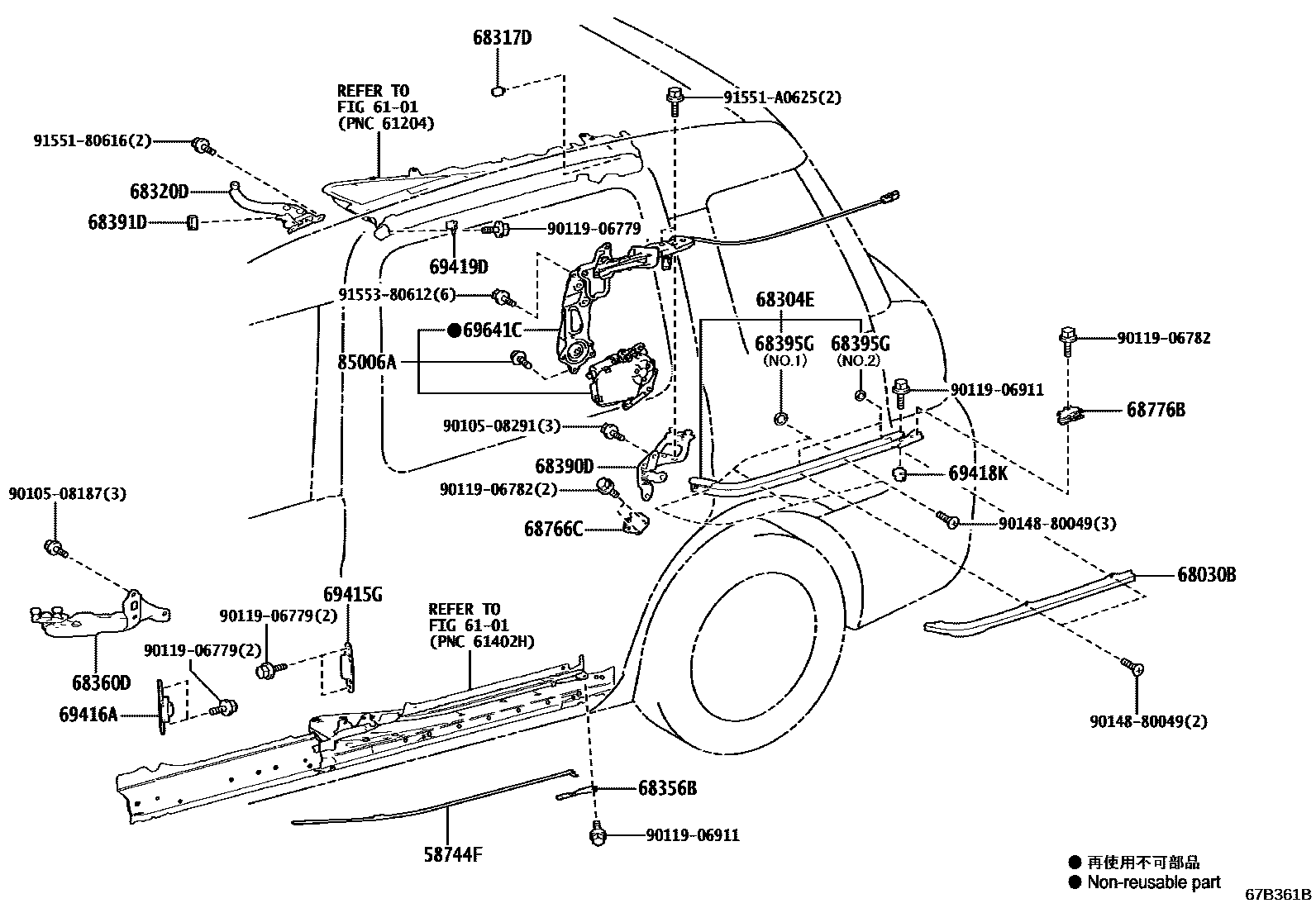

SLIDE DOOR ROLLER & RAIL
58744FPROTECTOR, SLIDE DOOR PANEL, LH
6101
68030BGUIDE ASSY, SLIDE DOOR CABLE
68304ERAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68317DSTOPPER, SLIDE DOOR UPPER RAIL
68320DROLLER ASSY, SLIDE DOOR, UPPER, LH
68356BPLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH
68360DROLLER ASSY, SLIDE DOOR, LOWER LH
68390DHINGE ASSY, SLIDE DOOR, CENTER LH
68391DCUSHION, SLIDE DOOR UPPER ROLLER, LH
68395GPACKING, SLIDE DOOR CENTER RAIL
NO.2
NO.1
68766CBRACKET, SLIDE DOOR, CENTER NO.1 LH
68776BBRACKET, SLIDE DOOR, CENTER NO.2 LH
69415GSTOPPER, SLIDE DOOR DOWN FEMALE
69416ASTOPPER, SLIDE DOOR DOWN MALE
69418KCUSHION, SLIDE DOOR OPEN STOPPER, LH
69419DSTOP, SLIDE DOOR OPEN, LH
69641CCONTROL, SLIDE DOOR ATTACHMENT, LH
85006AMOTOR UNIT, SLIDE DOOR, LH
9010508187
9010508291
9011906779
9011906782
9011906911
9014880049
9155180616
91551A0625
9155380612
28 parts on this diagram · 1 diagram in section
