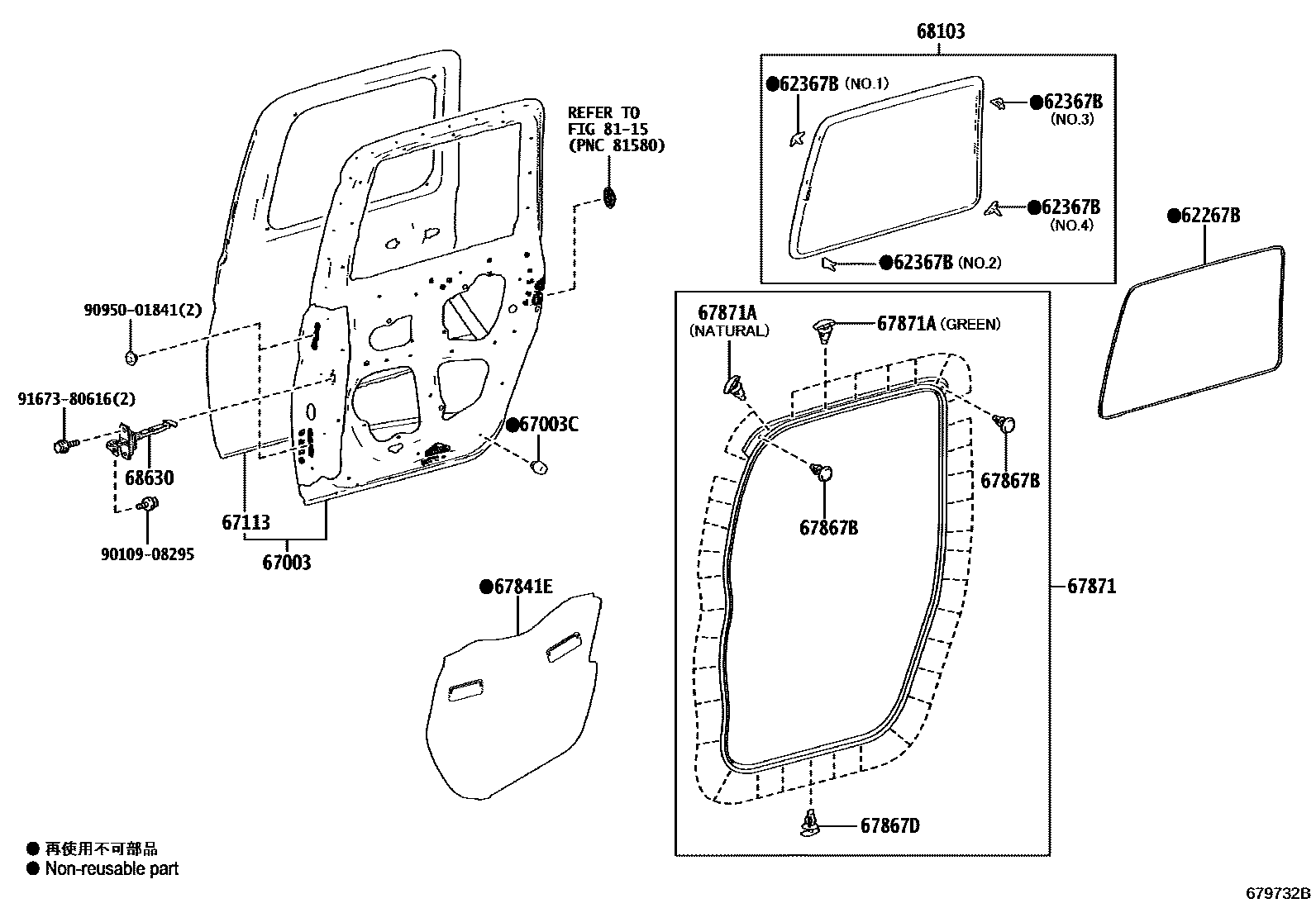

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL(RH SIDE) 0002 1DOOR PANEL(LH SIDE) 0003 1DOOR TRIM(RH SIDE) 0004 1DOOR TRIM(LH SIDE)

62267BDAM, SIDE WINDOW ADHESIVE

main56117-64010iNTP10201710

62367BCLIP, DOOR WINDOW GLASS, REAR RH

main62775-15090iNTP10201710-202101

NO.2:REFER ILLUST.

main62775-15110iNTP10201710-202101

NO.1:REFER ILLUST.

main62775-15120iNTP10201710-202101

NO.3:REFER ILLUST.

main62775-15200iNTP10201710-202101

NO.4:REFER ILLUST.

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-15030iNTP10201710

67003CCUSHION, REAR DOOR PANEL

main90541-09124iNTP10201710

RH

main90541-10038iNTP10201710

LH

67113PANEL, REAR DOOR, OUTER RH

main67113-15010iNTP10201710

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-15010iNTP10201710

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main90467-06084iNTP10201710

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iNTP10201710

67871WEATHERSTRIP, REAR DOOR, RH

main67871-15050iNTP10201710

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-52010iNTP10201710

NATURAL

main67867-52040iNTP10201710

GREEN

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-15030iNTP10201710

68630CHECK ASSY, REAR DOOR

main68630-15010iNTP10201710

8115

9010908295

main90109-08295

9095001841

main90950-01841

9167380616

main91673-80616

16 parts on this diagram · 4 diagrams in section
