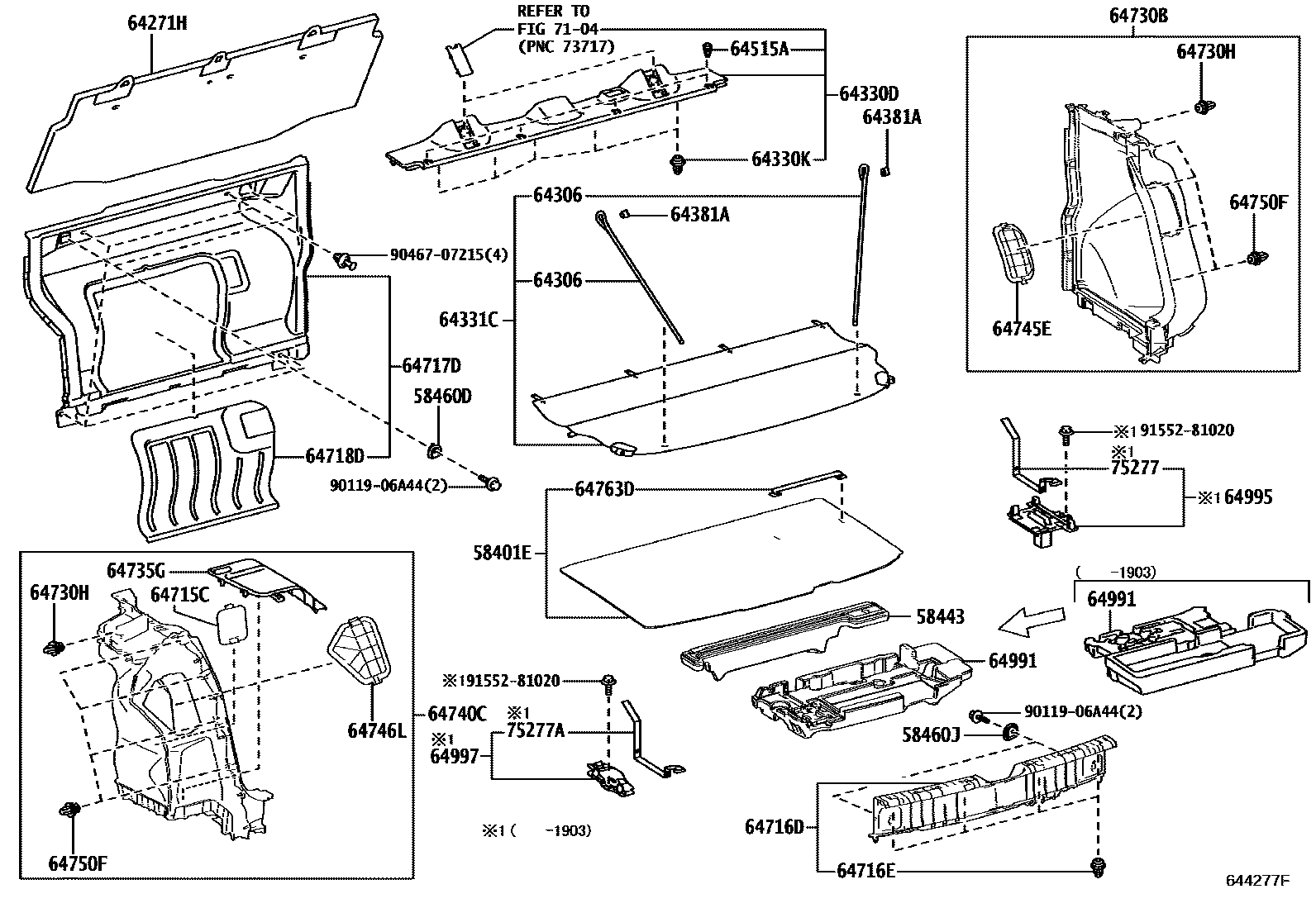

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58401EBOARD SUB-ASSY, DECK

main58401-15030-C1iNTP10201710-201903

BLACK,TRIM4#

main58401-15031-C1iNTP10201903

BLACK,TRIM4#

58443CUSHION, DECK BOARD, NO.1

main58443-15021iNTP10201903

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iNTP10201710

58460JSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iNTP10201710

64271HTRIM, ROOM PARTITION

main64271-15010iNTP10201710

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-15010iNTP10201710

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-15010-C1iNTP10201710

BLACK,TRIM4#

64330KCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161iNTP10201710

64331CBOARD, PACKAGE TRAY TRIM

main64331-15010-C1iNTP10201710

BLACK,TRIM4#

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010iNTP10201710

64515AHOLDER, LUGGAGE COMPARTMENT DOOR HOOK

main64515-28020-C0iNTP10201710

BLACK

64715CCOVER, DECK SIDE TRIM, LH

main64715-47060-C1iNTP10201710

BLACK,TRIM4#

sub64715-47060

64716DCOVER, DECK TRIM, REAR

main64716-15010-C1iNTP10201710

BLACK,TRIM4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161iNTP10201710

64717DCOVER, PACKAGE TRAY TRIM, FRONT

main64717-15010-C1iNTP10201710-201903

BLACK,TRIM4#

sub64717-15011

main64717-15011-C1iNTP10201903-202105

BLACK,TRIM4#

main64717-15020-C0iNTP10202105

BLACK,TRIM4#

64718DCOVER, DECK TRIM SERVICE HOLE

main64718-15010-C0iNTP10201710-201903

BLACK,TRIM4#

sub64718-15020

main64718-15011-C0iNTP10201903-202105

BLACK,TRIM4#

sub64718-15020

main64718-15020-C0iNTP10202105

BLACK,TRIM4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-15010-C1iNTP10201710

BLACK,TRIM4#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-09232iNTP10201710

64735GCOVER, DECK TRIM SIDE SERVICE HOLE, LH

main64735-15010-C0iNTP10201710

BLACK,TRIM4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-15010-C1iNTP10201710

BLACK,TRIM4#

64745ECOVER, REAR COMBINATION LAMP SERVICE

main64745-15010-C0iNTP10201710

BLACK,TRIM4#

64746LCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-15010-C0iNTP10201710

BLACK,TRIM4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iNTP10201710

64763DSTOPPER, TOOL COVER

main64763-15030iNTP10201710

64991BOX, DECK FLOOR, FRONT

main64991-15020iNTP10201710-201903

main64991-15021iNTP10201903

64995BOX, DECK FLOOR, RH

main64429-15010iNTP10201710-201810

sub64429-15011

main64429-15011iNTP10201811-201903

64997BOX, DECK FLOOR, LH

main64439-15010iNTP10201710-201810

sub64439-15011

main64439-15011iNTP10201811-201903

7104

75277BAND, TOOL, NO.1

main75277-15010iNTP10201710-201810

sub75277-15011

main75277-15011iNTP10201811-201903

75277ABAND, TOOL, NO.2

main75277-15020iNTP10201710-201810

sub75277-15021

main75277-15021iNTP10201811-201903

9011906A44

main90119-06A44

9046707215

main90467-07215

9155281020

main91552-81020

33 parts on this diagram · 2 diagrams in section
