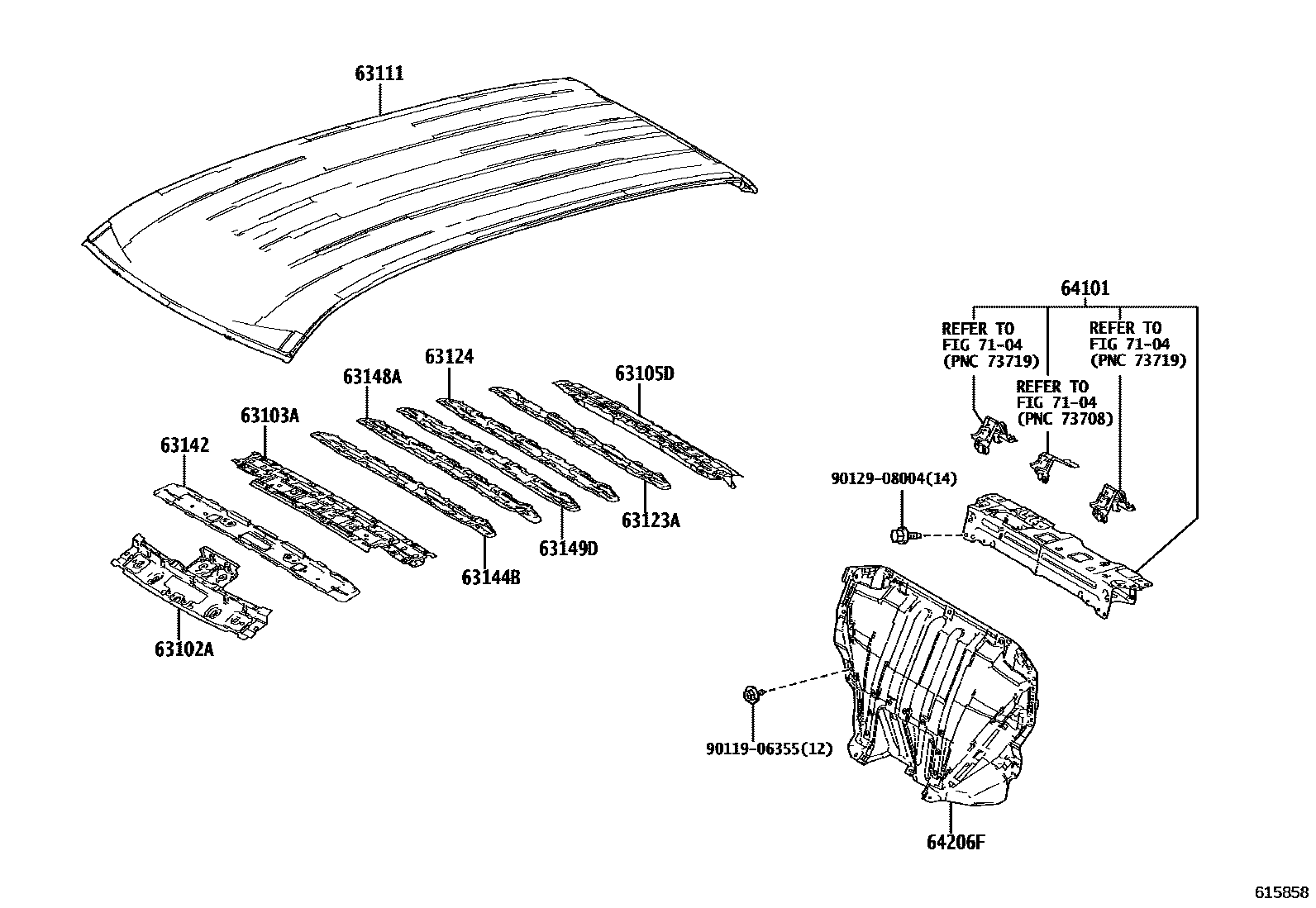

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-15020iNTP10201710-202008

sub63102-15021

main63102-15021iNTP10202009

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-15040iNTP10201710

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-15030iNTP10201710

63111PANEL, ROOF

main63111-15030iNTP10201710

63123AREINFORCEMENT, ROOF PANEL, REAR NO.1

main63125-15010iNTP10201710

63124REINFORCEMENT, ROOF PANEL, NO.1

main63124-15010iNTP10201710

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-15020iNTP10201710

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-15010iNTP10201710

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-15010iNTP10201710

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-15010iNTP10201710

64101PANEL SUB-ASSY, UPPER BACK

main64101-15010iNTP10201710-202104

sub64101-15011

main64101-15011iNTP10202105

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-15010iNTP10201710-202401

sub64206-15011

main64206-15011iNTP10202402

7104

9011906355

main90119-06355

9012908004

main90129-08004

15 parts on this diagram · 1 diagram in section
