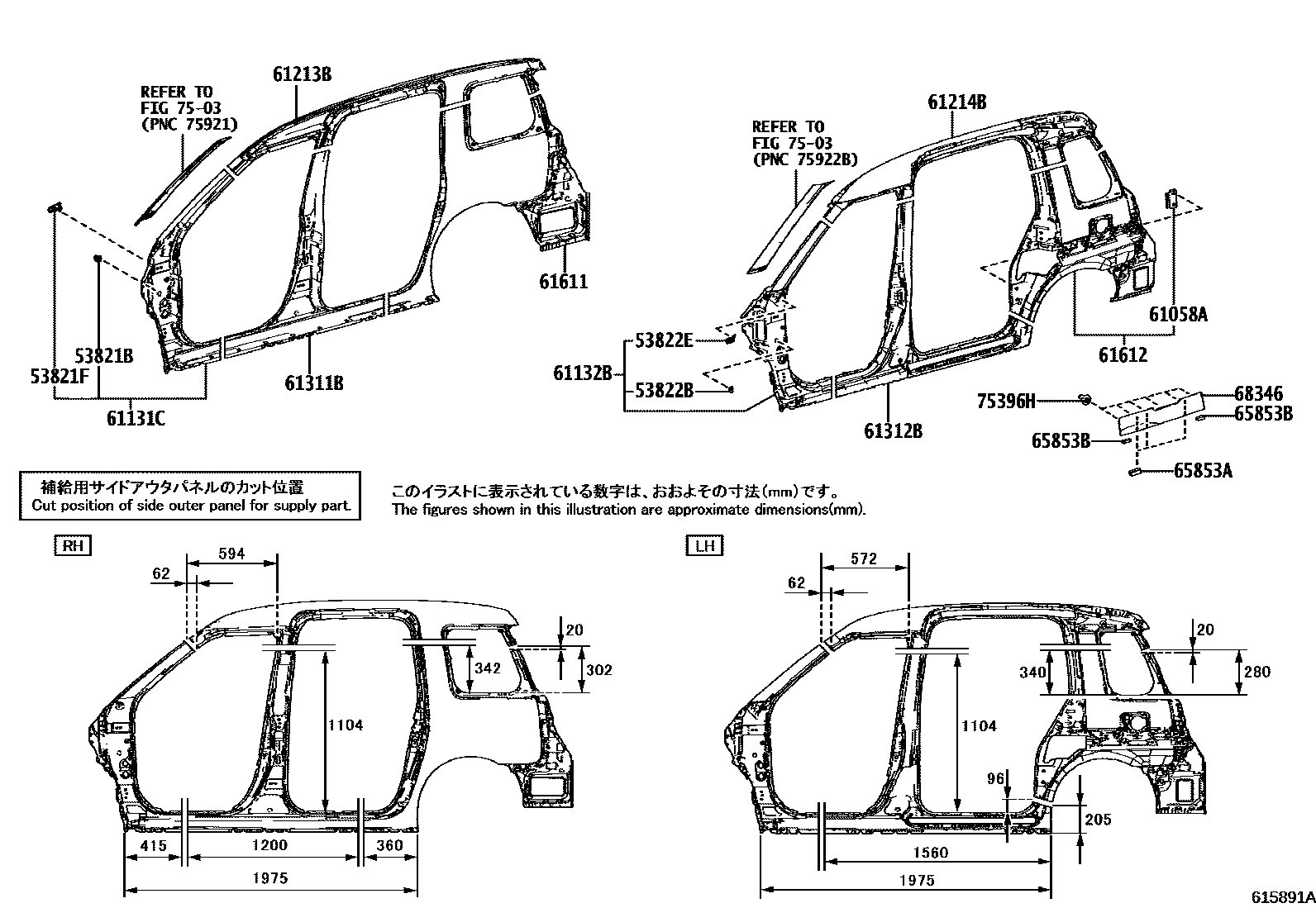

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-48030iNTP10201710

53821FBRACKET, FRONT FENDER, REAR NO.2 RH

main53821-15010iNTP10201710

53822BBRACKET, FRONT FENDER, REAR LH

main53821-48030iNTP10201710

53822EBRACKET, FRONT FENDER, REAR NO.2 LH

main53822-15010iNTP10201710

61058AEXTENSION SUB-ASSY, QUARTER LOCK PILLAR, LH

main61058-15010iNTP10201710

61131CPILLAR, FRONT BODY, OUTER RH

main61106-15010iNTP10201710

61132BPILLAR, FRONT BODY, OUTER LH

main61107-15010iNTP10201710

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-15010iNTP10201710

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-15020iNTP10201710

61311BPILLAR, CENTER BODY, OUTER RH

main61311-15010iNTP10201710

61312BPILLAR, CENTER BODY, OUTER LH

main61312-15010iNTP10201710

61611PANEL, QUARTER, RH

main61611-15040iNTP10201710-202401

sub61611-15041

main61611-15041iNTP10202402

61612PANEL, QUARTER, LH

main61602-15040iNTP10201710-202108

sub61602-15041

main61602-15041iNTP10202108-202401

sub61602-15042

main61602-15042iNTP10202402-202405

main61602-15043iNTP10202406

65853ASPACER, SLIDE DOOR CENTER RAIL COVER, NO.1

main65853-15010iNTP10201710

65853BSPACER, SLIDE DOOR CENTER RAIL COVER, NO.2

main65853-15020iNTP10201710

68346COVER, SLIDE DOOR CENTER RAIL, LH

main60836-15010iNTP10201710-202412

main60836-15011iNTP10202501

7503

75396HCLIP, OUTSIDE MOULDING, NO.2

main75396-52010iNTP10201710-202108

18 parts on this diagram · 3 diagrams in section
