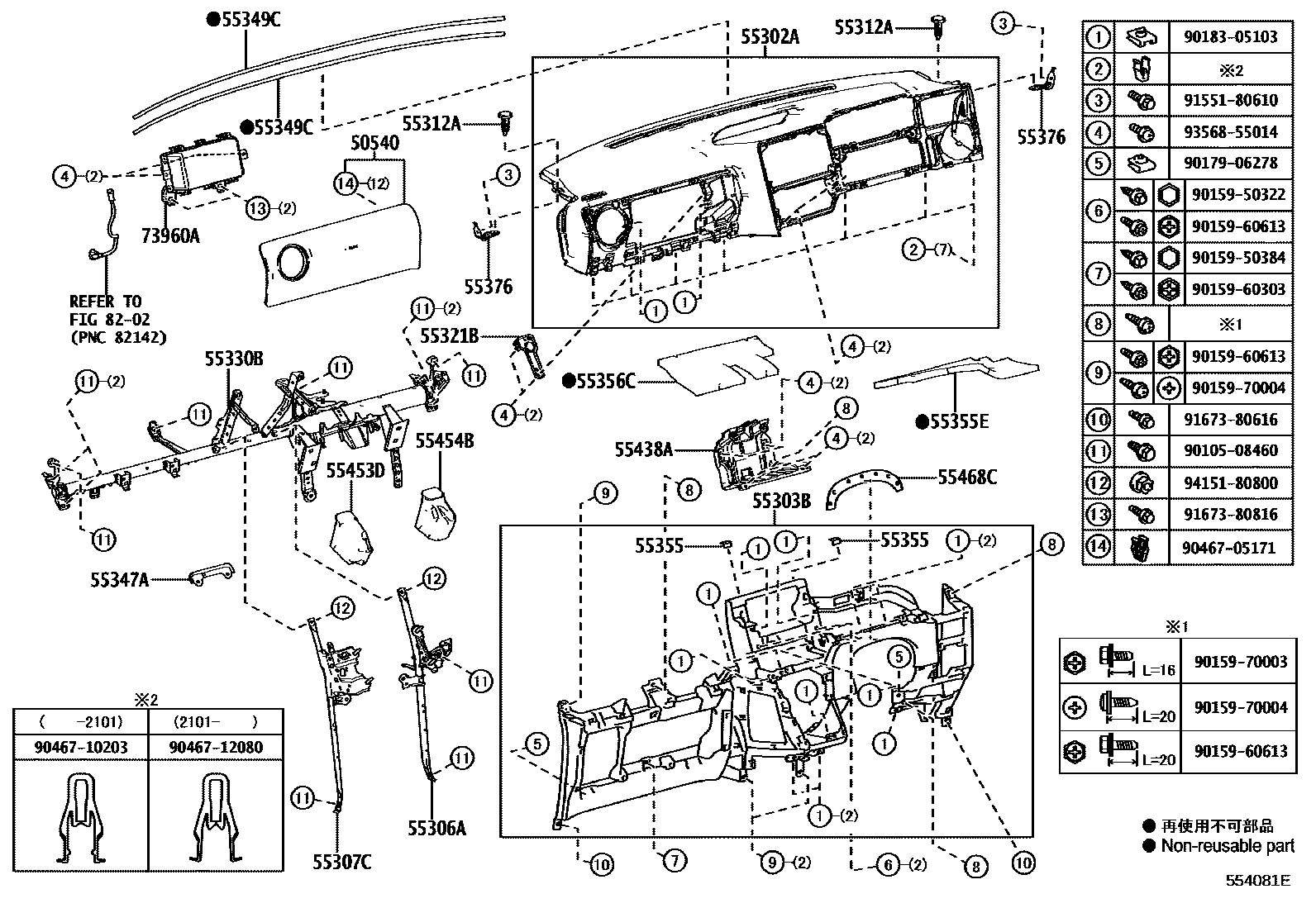

INSTRUMENT PANEL & GLOVE COMPARTMENT
50540DO0R ASSY, AIRBAG PASSENGER
KURO KOHAKU,TRIM40
KOHAKU,TRIM41
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55312ACLIP, INSTRUMENT PANEL
sub52161-0K040
55321BBRACKET, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55355ECUSHION, INSTRUMENT PANEL
55356CCUSHION, INSTRUMENT PANEL, NO.2
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55438ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2
55453DPAD, INSTRUMENT PANEL SAFETY, NO.1
55454BPAD, INSTRUMENT PANEL SAFETY, NO.2
55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9010508460
main90105-08460
9015950322
main90159-50322
9015950384
main90159-50384
9015960303
main90159-60303
9015960613
main90159-60613
9015970003
main90159-70003
9015970004
main90159-70004
9017906278
main90179-06278
9018305103
main90183-05103
9046705171
main90467-05171
9046710203
main90467-10203
9046712080
main90467-12080
9155180610
main91551-80610
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180800
main94151-80800
37 parts on this diagram · 4 diagrams in section
