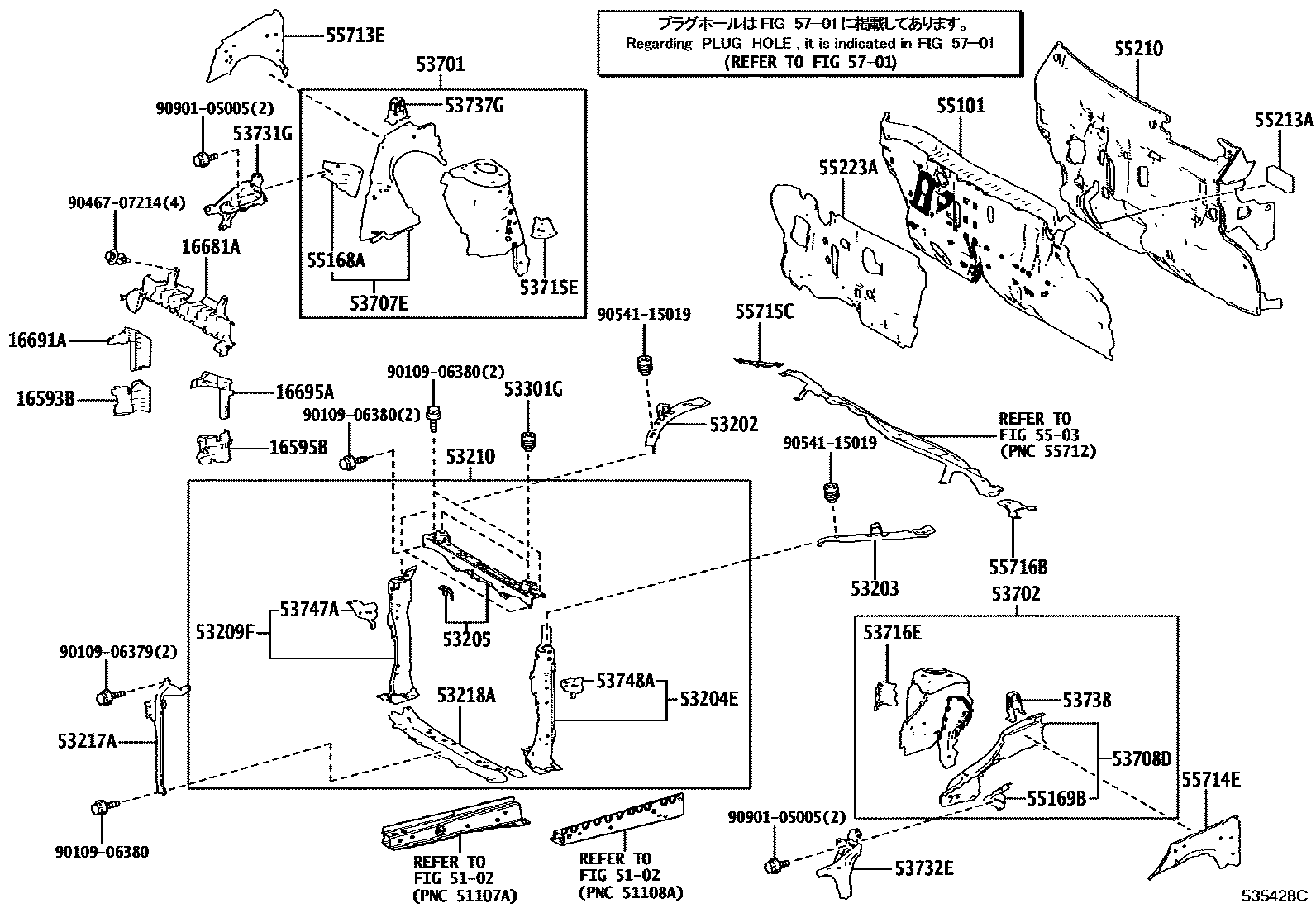

FRONT FENDER APRON & DASH PANEL
16593BGUIDE, RADIATOR AIR, NO.1 RH
16595BGUIDE, RADIATOR AIR, NO.1 LH
16681APLATE, RADIATOR UPPER AIR GUIDE
16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
5102
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53217ABRACE, HOOD LOCK SUPPORT
53218ASUPPORT, RADIATOR, LOWER
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53731GREINFORCEMENT, FRONT FENDER APRON, RH
53732EREINFORCEMENT, FRONT FENDER APRON, LH
53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
5503
55101PANEL SUB-ASSY, DASH
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55213APAD, DASH PANEL SILENCER
55713EPANEL, COWL TOP SIDE, RH
55714EPANEL, COWL TOP SIDE, LH
55715CBRACE, COWL TOP TO APRON, RH
55716BBRACE, COWL TOP TO APRON, LH
5701
9010906379
main90109-06379
9010906380
main90109-06380
9046707214
main90467-07214
9054115019
main90541-15019
9090105005
main90901-05005
44 parts on this diagram · 1 diagram in section
