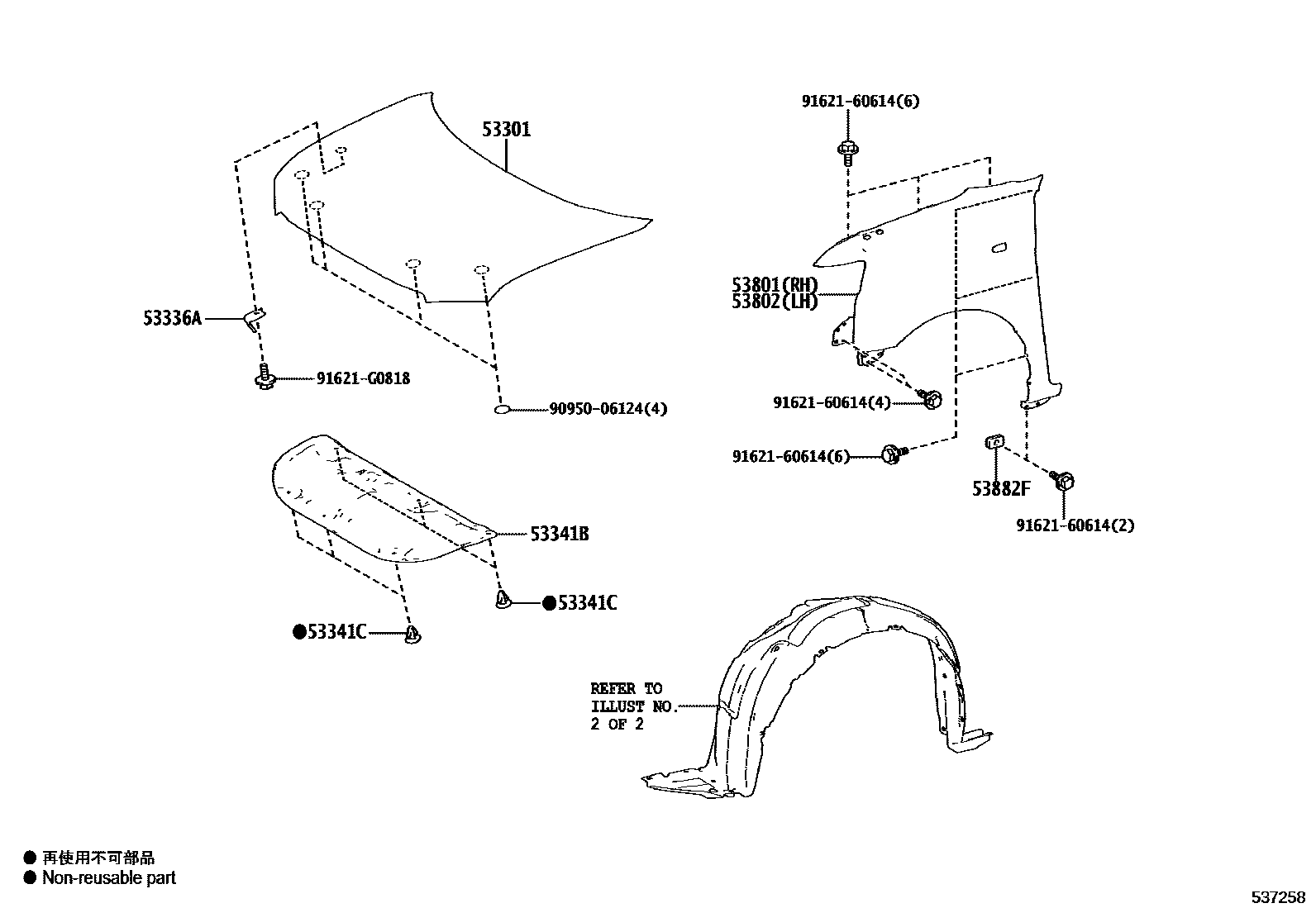

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-15010iNTP10201710

53336ABRACKET, HOOD STAY

main53336-47010iNTP10201710

53341BINSULATOR, HOOD

main53341-15010iNTP10201710

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNTP10201710

53801FENDER SUB-ASSY, FRONT RH

main53801-15010iNTP10201710

53802FENDER SUB-ASSY, FRONT LH

main53802-15010iNTP10201710

53882FSEAL, FRONT FENDER

main53882-16030iNTP10201710

9095006124

main90950-06124

9162160614

main91621-60614

91621G0818

main91621-G0818

10 parts on this diagram · 2 diagrams in section
