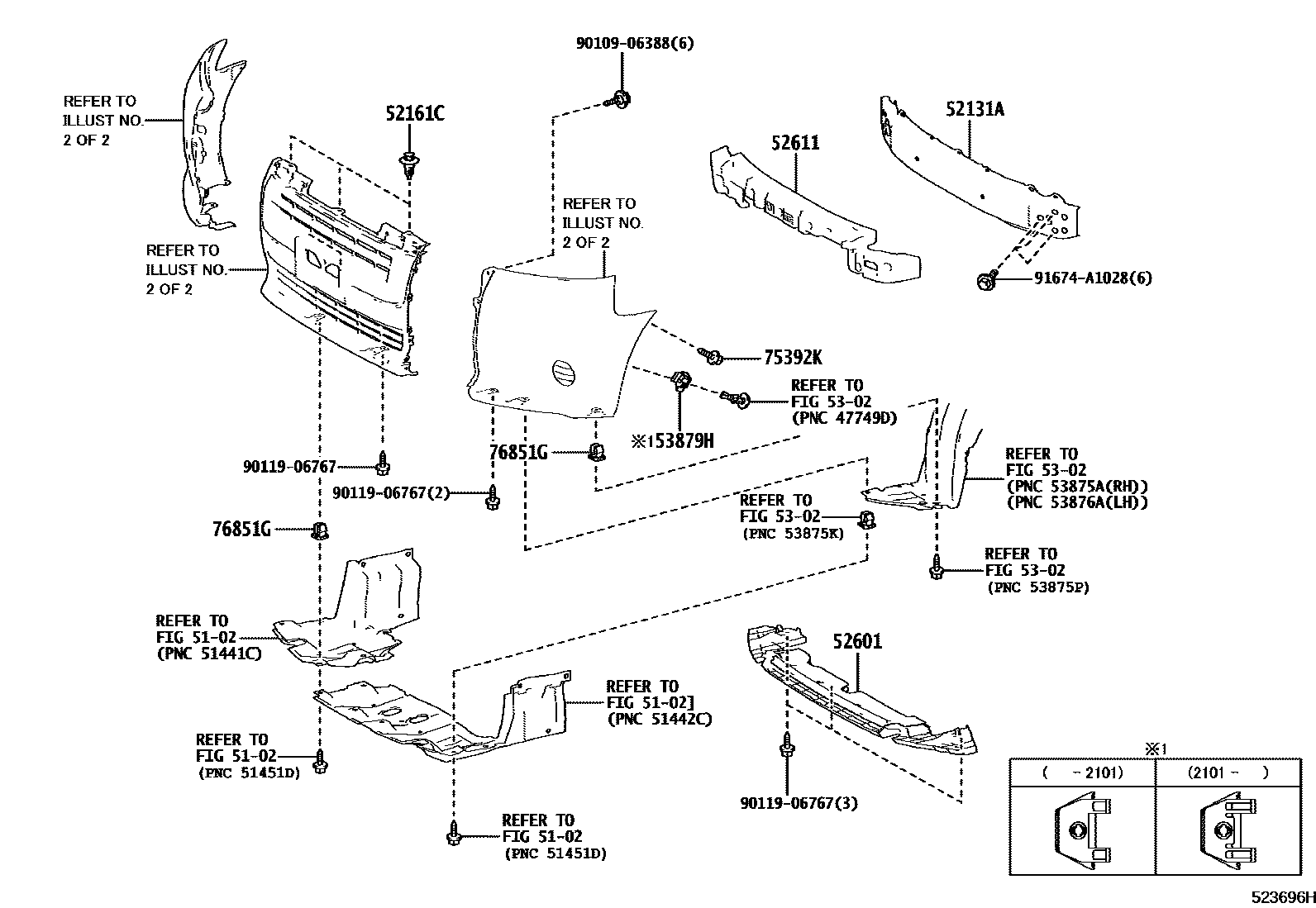

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNTP10201710

52161CPIECE, FRONT BUMPER

main52161-16010iNTP10201710

sub52161-0K040

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-15010iNTP10201710

52611ABSORBER, FRONT BUMPER ENERGY

main52611-15010iNTP10201710

5302

53879HRETAINER, FRONT FENDER LINER

main53879-30050iNTP10201710-202101

main53879-30060iNTP10202101

75392KRETAINER, OUTSIDE MOULDING, NO.2

main75392-42030iNTP10201710

76851GGROMMET, SCREW, NO.1

main90189-06237iNTP10201710

9010906388

main90109-06388

9011906767

main90119-06767

91674A1028

main91674-A1028

12 parts on this diagram · 2 diagrams in section
