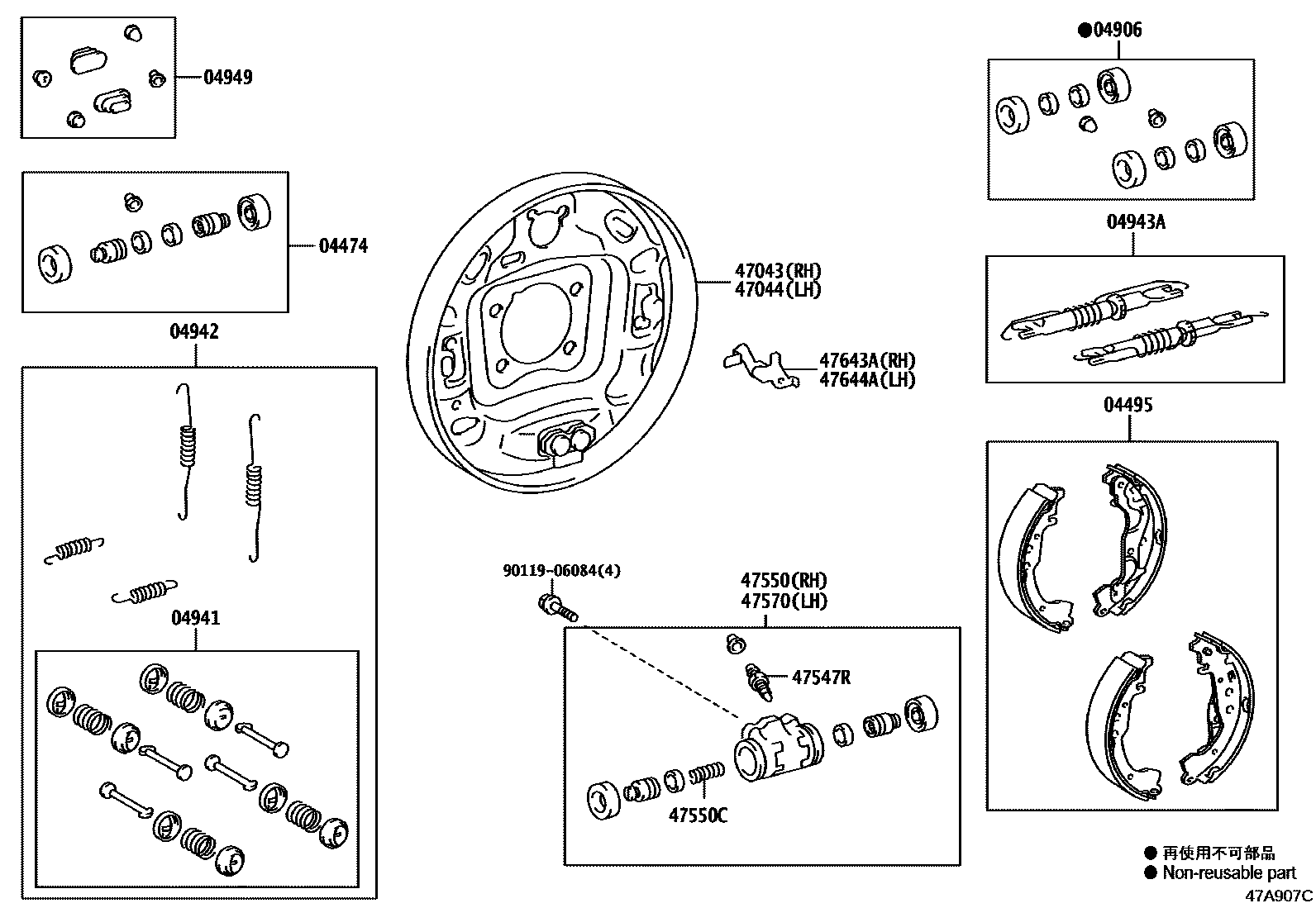

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-15010iNTP10201710

04495SHOE KIT, REAR BRAKE

main04495-52121iNTP10201710

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-15010iNTP10201710

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iNTP10201710

04942SPRING KIT, REAR BRAKE

main04942-13030iNTP10201710

04943ASTRUT KIT, REAR BRAKE

main04943-12040iNTP10201710

04949PLUG KIT, REAR BRAKE

main04949-13010iNTP10201710

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-15020iNTP10201710

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-15020iNTP10201710

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030iNTP10201710

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-15010iNTP10201710

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079iNTP10201710

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-15010iNTP10201710

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52120iNTP10201710

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52120iNTP10201710

9011906084

main90119-06084

16 parts on this diagram · 1 diagram in section
