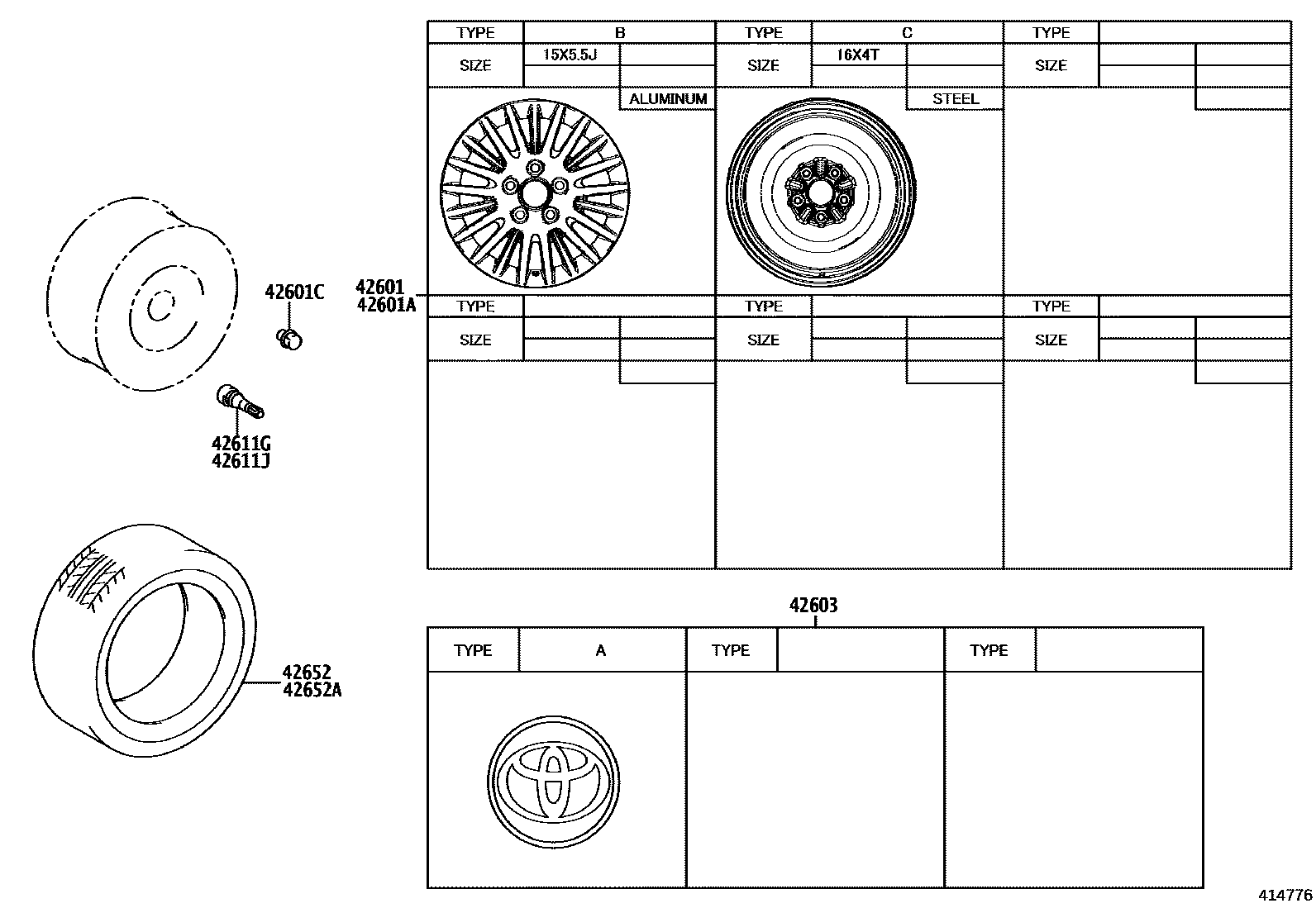

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

42601WHEEL, DISC

main42611-15020iNTP10201710

15X5.5J, #,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-21280iNTP10201710

16X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iNTP10201710

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130iNTP10202001

*ALU,TYPE A:REFER ILLUST.

main42603-48140iNTP10201710-202001

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iNTP10201710

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNTP10201710

42652TIRE

main42652-15020iNTP10201710

185/65R15,*Y/H

42652ATIRE (FOR SPARE)

main42652-13120iNTP10201710

T125/70D16,*D/L

8 parts on this diagram · 2 diagrams in section
