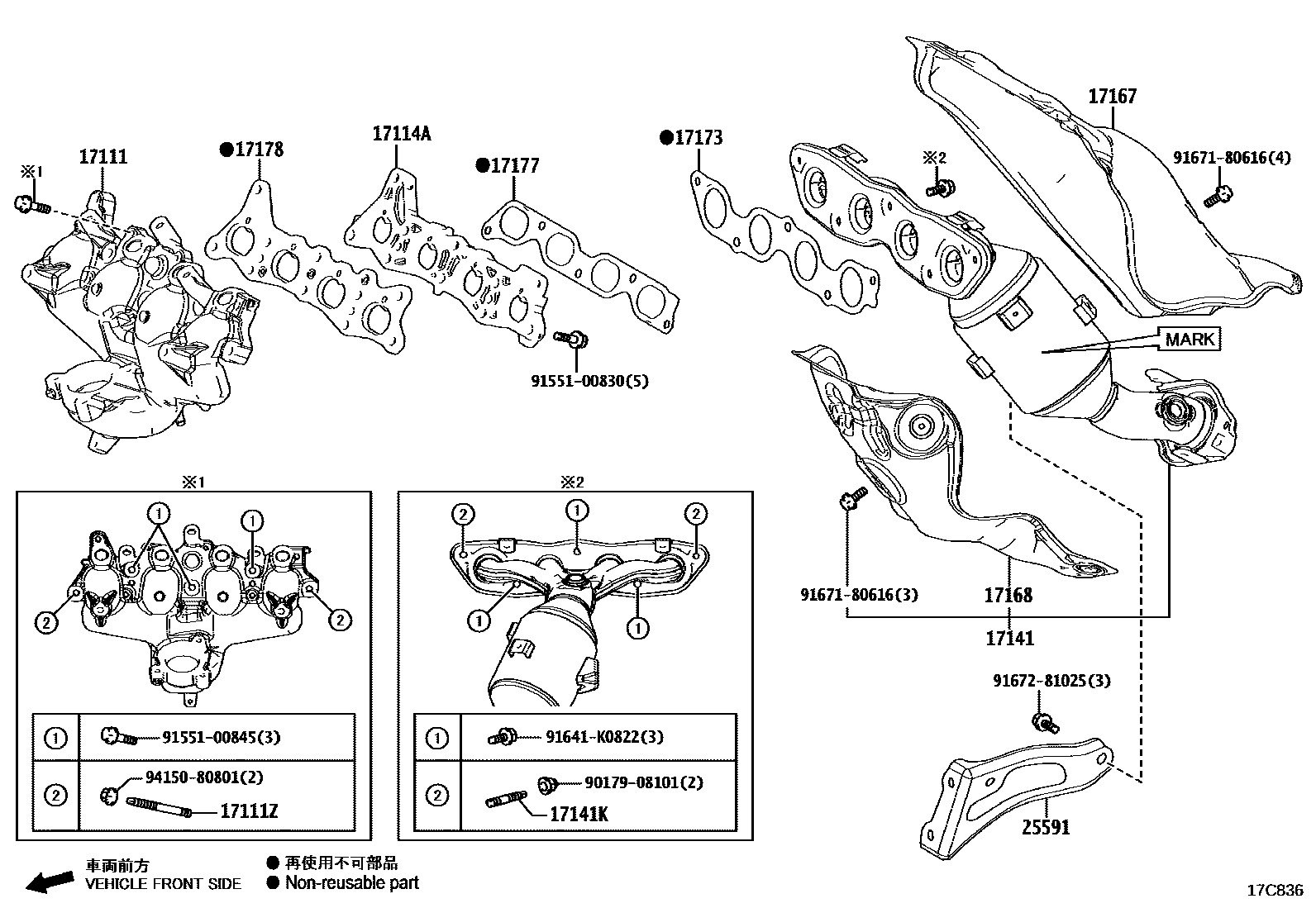

MANIFOLD

17111MANIFOLD, INTAKE

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

17114AFLANGE, INTAKE

17141MANIFOLD, EXHAUST

main17140-21100i201710-202004

MARK 21100

MARK 21140

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-21090i201710-202004

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

25591BRACKET, MANIFOLD SUPPORT

9017908101

9155100830

9155100845

91641K0822

9167180616

9167281025

9415080801

18 parts on this diagram · 1 diagram in section
